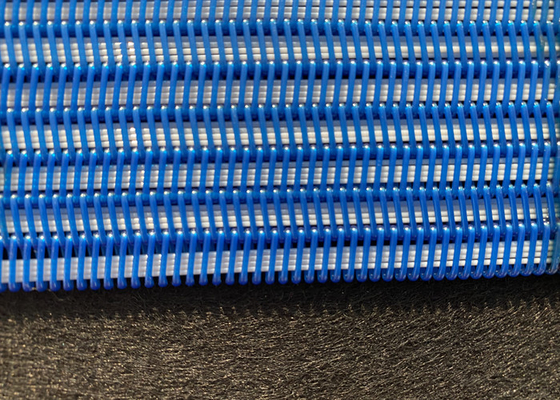

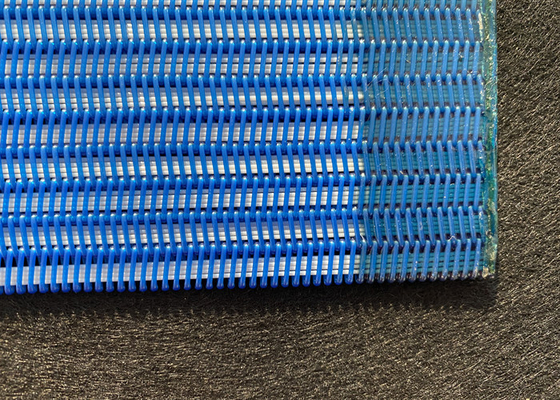

Durable And Sturdy Polyester Spiral Press Filter Mesh With Adhesive Edges And Connecting Wires
Product Description:
Dryer fabric is a drying part of wet paper web The conventional drying system can dry the wet web from 60% moisture to 2%
moisture with help of drying fabrics. drying fabrics play an important roll for giving a final shape and parameters to the
paper drying fabrics are also known as conveyor Belts
1. Filtering and separating in the colliery, food, salt and mine industry
2. Pulp making, soleplate pulp packing and cardboard pulp
3. Fiberboard plants, medicine, printing, drying industry as conveyor belt pharmacy, environment protection
4. Process hides, shoe-making, clothing, ceramics etc as a conveyor belt
5. Foodstuffs processing
Features:
1.Has the acid and alkali resistance, wear resistance, high temperature resistant, long service life
2.With smooth surface, the tensile strength, permeability is good.
3. According to user requirements in filling in the grid round wire (2 to 5) (a) or black flat silk, adjust at porosity, meet the process requirements.
4.Carbon fiber through internal fill to achieve antistatic effect, with high temperature resistance, wear resistance, etc
5.Size length can be cut, and thus solve the problem of the influence because of the size is not accurate to use.
6.Install easy to use, interface without imprint
Technical Parameters:
| Technical Parameters |
Details |
| Product Name |
Polyester spiral press filter mesh belt |
| Compilation Method |
Weave |
| Wire Diameter |
1.2-10mm |
| Tensile Strength |
High Strength |
| Edge Disposal |
Glue Edge |
| Weight |
1.5-2.8 KG/M2 |
| Thickness |
2-4.3mm |
| Joint |
Spiral Interface |
| Air Permeability |
4480-9000 M3/m2h |
| Width |
0.1-6 M |
| Sample |
Available |
Applications:
1.Widely used in the production of cardboard with a net, kraft paper, corrugated paper, paper of train tickets and single whiteboard paper
2.Instead of dry blanket, canvas of paper machine drying;
3.Also widely used in coal mining, food, medicine and other industries of conveyor equipment.
Customization:
Customized Service for Hebei Reking Polyester mesh Belt (Reking-001)
- Brand Name: Hebei Reking
- Model Number: Reking-001 Polyester spiral mesh Belt
- Place of Origin: Hebei shijiazhuang
- Certification: ISO9001
- Minimum Order Quantity: 1 pics
- Price: Negotiable
- Packaging Details: Wood
- Delivery Time: Based on order quantity
- Payment Terms: 7-15 days
- Supply Ability: 10000 pics
- Packing: Woven Bags And Wooden Boxes
- Wire Diameter: 0.4-0.9mm
- Tensile Strength: High Strength
- Compilation method: Plain Weave
- Thickness: 1.3-3.5mm
Hebei Reking Polyester spiral mesh Belt (Reking-001) is specially designed for conveyor belt, paper making belt, filter belt and other related applications. It is made of high quality polyester material with high tensile strength, and it has good resistance to abrasion, heat and chemical corrosion. The wire diameter ranges from 0.4-0.9mm, and the thickness ranges from 1.3-3.5mm. The compilation method is plain weave, and the packing is woven bags and wooden boxes. Hebei Reking also provide customization service with minimum order quantity of 1 pic, and the price is negotiable. All products are certified with ISO9001, and the delivery time and payment terms are based on the order quantity.
Packing and Shipping:
Packaging and Shipping:
The polyester sludge dewatering belt will be carefully packaged in an appropriate container and shipped to the customers in a timely manner. All shipments will be properly secured and labeled to ensure that the product reaches the destination without any damage
1. We always use polybag for the goods which ship by air, so that customer can save freight free
2. Wooden case is the best for ocean shipment because it can effectively avoid the damage during shipping
3. There also have some customer request us to use the carton for packing their goods
4. We can according to customer's requirements.
