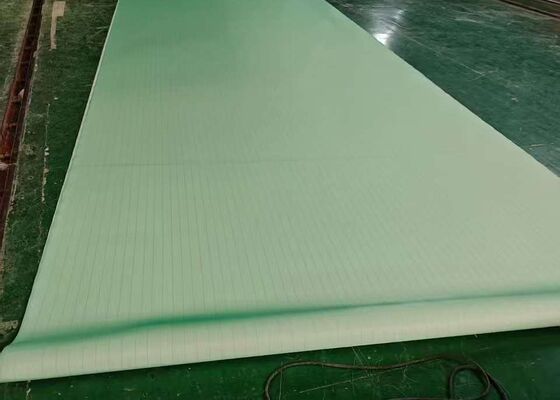

Triple-Layer Polyester Forming Fabric for Tissue Paper — Superior Fiber Retention & Smooth Surface

Triple-Layer Polyester Forming Fabric for Tissue Paper — Superior Fiber Retention & Smooth Surface

Product Description

Polyester forming fabrics reduce downtime and improve sheet quality through consistent drainage and stable guidance. Their lightweight construction simplifies installation and handling compared to metal wires. Precision weaving and heat-setting deliver uniform permeability across the fabric width, supporting consistent formation and reduced breaks. Optional abrasion-resistant machine-side yarns and reinforced edges further extend operating life, lowering cost per ton of paper produced

Technical Specifications

Features & Benefit

Applications:

In addition to their use in the production of various conventional paper grades, polyester forming fabrics are widely employed in pulp dewatering, sludge filtration, and other industrial filtration processes that require reliable solid-liquid separation and excellent dimensional stability. Within the papermaking sector, they are used on production lines for tissue, printing and writing paper, newsprint, kraft paper, specialty paper, and containerboard, making them one of the most versatile types of consumables among the range of fabrics used on paper machines.

• High dimensional stability: Heat-set construction minimizes stretching and edge curling under tension.

• Efficient dewatering: Controlled permeability enables rapid water removal while retaining fibers and fillers.

• Excellent wear resistance: Multilayer and modified monofilament options extend service life on high-speed machines.

• Smooth sheet surface: Fine paper-side weave reduces wire marks and improves printability.

• Chemical durability: Resistant to acid and alkali conditions typical in papermaking furnish systems.

• Double layer / 2.5-layer: High-grade printing paper, tissue, fine paper, board top liner

• Triple layer: Tissue grades (approx. 11–15 g/m²), where superior fiber support is required
