Product Details:
Payment & Shipping Terms:
|
| Compilation Method: | Plain Weave | Width: | 0.1-4m |
|---|---|---|---|
| Durability: | Reusable | Weight: | 0.3-2.5 KG/M2 |
| Loop Width: | 5-12mm | Material: | 100% Polyester |
| Wire Diameter: | 0.2-1.2mm | Tensile Strength: | High Strength |
| High Light: | 200℃ temperature resistant polyester sludge belt,plain weave polyester sludge belt,glue edge polyester sludge dewatering belt |
||

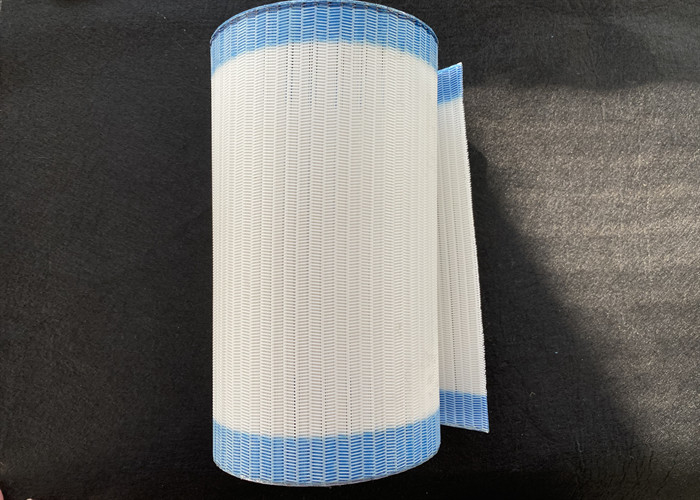

Polyester spiral mesh belts have a spiraled continuous and seamless screen structure
which is ideal for applications in which a seam would be unmeet due to mechanical loads
Meanwhile, the unique spiral linked weave type makes the polyester spiral mesh belts flexible in warpage
and the heat-setting treatment ensures the spiral belts durability and a long, productive life without deformation
easy to install, clean and maintains
This kind of synthetic spiral fabrics are widely used as filter belts, dryer screen belts or conveyor belts
in dewatering processes with fibrous products, or for industry sludge dewatering and drying
nonwoven forming, and thermal applications include drying of veneers manufacture of gypsum plasterboard
or for multi-stage dryers in the foodstuff processing etc
Synthetic polyester spiral dryer mesh belt fabrics
Huading's polyester spiral mesh belts can be made of 100% Polyester, or anti-hydrolysis Polyester for
high temperature and high humidity, or 100% PPS for high temperature 150-240°C working condition
other kinds of material can be customized for antistatic, dirt-repellent, or enhanced abrasion-resistance performance etc
Various types in different yarn diameter 0.5mm-1.1mm, small, medium and large spiral rings
flat or round yarn, filled or unfilled are all available to achieve optimal air permeability rates, tracking stability
high throughput rate and excellent filtration efficiency
| Property | Parameters |
|---|---|
| Material | Polyester mesh |
| Edge disposal | Glue Edge |
| Thickness | 2-4.5mm |
| Packing | Woven Bags And Wooden Boxes |
| CFM | 900-1500 |
| Length | 0.1-100m |
| Width | 0.1-4m |
| Joint | Autogenous Ring Steel Card Interface |
| Durability | Reusable |
| Temperature resistance | 200 ℃ |
| Application | Paper Making,Food Drying,mining |
| Type | Conveyor belt, Conveyor belt, Dewatering belt |
| Polyester Spiral Dryer Mesh Belt | |||||
| Weaving Type | Model | Thread Diameter | Air permeability | ||
| (mm) | (m3/m2h) | ||||
| Spiral wire | loop width | connection wire | |||
| Big Loop | 10090A | 1 | 8 | 0.9 | 17000±500 |
| Middle Loop | 6890A | 0.68 | 8 | 0.9 | 18000±500 |
| Small Loop | 5080A | 0.50 | 5.2 | 0.8 | 15000±500 |
Hebei Reking offers a wide range of Polyester Sludge Dewatering Belts with innovative technology
and superior quality to meet the needs of the market. The Mesh belt is one of the most popular products
made by Hebei Reking. This belt is designed with a brand name of Hebei Reking, model number Reking-001
and is certified with ISO9001. It is made of Polyester material with a compilation method of Plain Weave
an air permeability of 15000-22000 M3/m2h and edge disposal of Glue Edge
The thickness of this belt is between 2-4.5mm and the weight between 0.3-2.5 KG/M2
Hebei Reking’s Polyester Sludge Dewatering Belts are commonly used in many industries such as
waste water treatment, paper-making, food processing, pharmaceuticals, or mining. It is a great choice
for sludge dewatering applications due to its high-strength and air permeability. The filter belt ensures
a lower moisture content of the sludge, allows for easier transportation and storage of the sludge
and provides an improved draining process. The minimum order quantity is one pics and the price is negotiable
The package method is wood and delivery time is based on the order quantity
Payment terms are 7-15 days and the supply ability is 10000 pics
Hebei Reking’s Polyester Sludge Dewatering Belts are the perfect solution for companies looking for
a reliable and efficient solution to their sludge dewatering needs. It is the ideal choice for a wide variety
of industries and applications, and its superior quality and innovative technology make it the perfect
choice for any company looking to improve their sludge dewatering process
Brand Name: Hebei Reking
Model Number: Reking-001
Place of Origin: Hebei shijiazhuang
Certification: ISO9001
Minimum Order Quantity: 1 pics
Price: negotiable
Packaging Details: Wood
Delivery Time: Based on order quantity
Payment Terms: 7-15 days
Supply Ability: 10000 pics
Weight: 0.3-2.5 KG/M2
Wire Diameter: 0.2-1.2mm
Air permeability: 15000-22000 M3/m2h
Thickness: 2-4.5mm
Tensile Strength: High Strength
Hebei Reking produces the highest quality Polyester Sludge Dewatering Belt with the best filtering performance
It can be used in various applications such as food and beverage, pharmaceutical, chemical and other industries
Our filter mesh belt is made from high-grade polyester material with high tensile strength and low air permeability
It is able to effectively remove the solids from the liquids and provides a clean and efficient filtration process
We provide customized services for Polyester Sludge Dewatering Belt with different size, weight wire diameter
tensile strength, and air permeability. Our filter belt is the perfect solution for various filtration needs
We are committed to providing our customers with the highest quality filter mesh belt that meets their needs
If you are looking for the best filter mesh belt, Polyester mesh belt, Polyester dewatering belt or Filter belt
contact Hebei Reking today.
Polyester Sludge Dewatering Belt Packaging and Shipping:
The Polyester Sludge Dewatering Belt is packaged in cardboard boxes or plastic bags
The size, quantity, and weight of the packaging will depend on the size and quantity of the order
All packages are clearly labelled and contain product information and safety instructions
The Polyester Sludge Dewatering Belt is shipped by air, sea, or land, depending on the
customer’s location and the size of the order. All packages are shipped with tracking numbers and insurance
