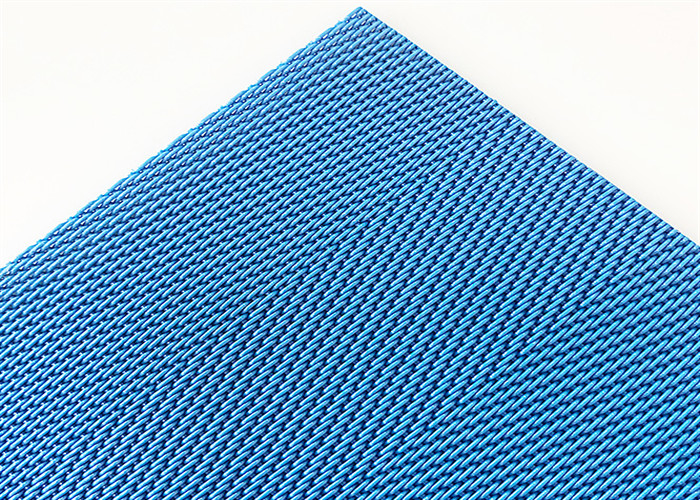

Papermaking Monofilament Polyester Sludge Dewatering Belt Size 1-50m

Papermaking Monofilament Polyester Sludge Dewatering Belt Size 1-50m
Papermaking Monofilament Polyester Sludge Dewatering Belt Size 1-50m

Large Image :  Papermaking Monofilament Polyester Sludge Dewatering Belt Size 1-50m

Product Details:
Place of Origin: China Hebei
Brand Name: R&K
Certification: ISO9001
Model Number: HH-01
Payment & Shipping Terms:
Minimum Order Quantity: 1 Meter
Price: Determine the price based on the quantity
Packaging Details: poly bag
Delivery Time: 4-7 Work Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 meter per week
Detailed Product Description
Name: Polyester Sludge Dewatering Belt For Papermaking Color: White Blue And Black
Size: 1-50m Application: Paper Mill Industry
Advantage: High Wear Resistance Packing: Simple Packing
Certificate: ISO9001 Material: 100% Polyester
High Light:

papermaking polyester sludge dewatering belt

,

monofilament polyester sludge dewatering belt

,

1m polyester sludge dewatering belt

High Quality Polyester Sludge Dewatering Belt Widely Used For Papermaking





Polyester Sludge Dewatering Belt Description



The belt is used in various diameter size of sludge dewatering and paper mill pulp squeeze

fruit juice concentrates squeeze in belt filter press machine,rubber belt vacuum filter machine

and horizontal vacuum belt in filter machine

The special design of the belt has features of easy to stick a lot of mud,and the muld is easy to

get off from the fabric the belt is easy to clean,and easy to install



Polyester Sludge Dewatering Belt Product Features



Model:22903 16903 24908 24808 12904
It has high beaking elongation tolerance
It has high temperature resistant under 180 degree
This fabric belt is widely used in all kinds of industries,such as printing
Polyester spiral link dryer fabric belt is also used in papermaking industry
100% polyester monofilament



Weaving Type Model Thread Diameter Density(No.s/cm) Strength ((N/cm) Air Permeability (m3/m2h)
(mm)
Warp Weft Warp Weft
2-shed plain weaving 5802 0.75 0.8 4.7-5 4.8-5 940 20000
5102 1 1 4.7-5.2 4.3-5 1600 15000
6702 0.7 0.7 8 7 1600 11000
7102 0.7 1 6.6-7 4.3-4.6 1100 15000
8552 0.55 0.55 7.5-8 8.5-9 850 850-6500
9452 0.45 0.45 10 8.6 1600 16000
9502 0.5 0.5 8.5-9 10-10.5 750 10000
12502 0.5 0.5 13.5 8.5 1800 6500
3shed plain weaving 8603 0.5 0.6 10 9 1600 14000
8903 0.9 0.9 7.8-8 5-5.5 2100 7500-8500
7803 0.7 0.8 8 8 1600 10000
20353 0.3 0.35 22 14.5 1200 13000



Polyester Sludge Dewatering Belt Product Advantage



1 Good permeability air permeability

2 Non-revealed sludge

3 Acid-resisting alkali-resisting heat resistance(180 °C)

4 Because of their designing structure, the sludge can be peel off easily after

 pigeonhole filter, so the screen are easily cleaned and have a long working time

5 Therefore they are designed specially for sludge dehydration

6 To make the culture paper, printing paper, and packing paper
7 Filled or unfilled to achieve different filtration characteristics
8 Adhesive edges for lasting, economical solutions

How to choose Polyester Sludge Dewatering Belt

  • Wasterwater treatment plants
  • Paper and tissue plants
  • Coal plants and abatoirs
  • Pressing of grapes,fruit and others.

Polyester Sludge Dewatering Belt Packing detail

1 We always use poly bag for the goods which ship by air, so that customer can save freight free
2 Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping
3 There also have some customer request us to use the carton to packing their goods
4 We can according to customer's requirement

Papermaking Monofilament Polyester Sludge Dewatering Belt Size 1-50m 0

Papermaking Monofilament Polyester Sludge Dewatering Belt Size 1-50m 1
