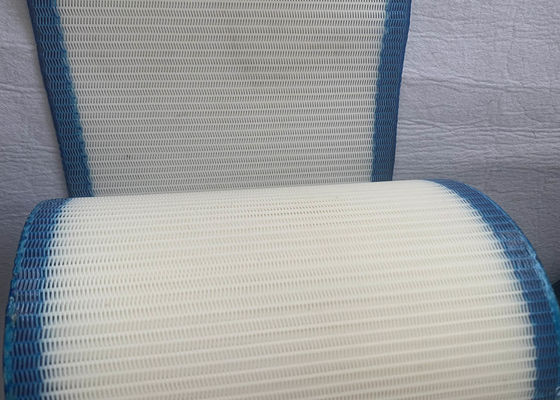

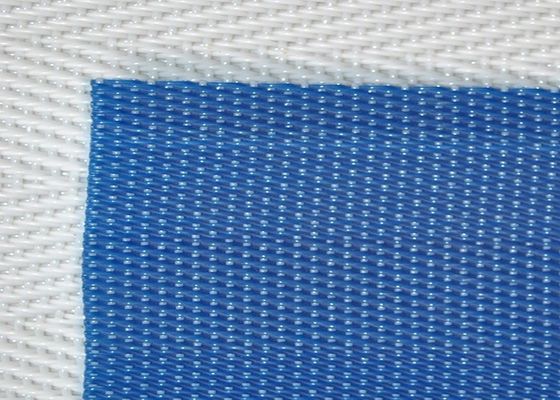

High-quality polyester ring spiral dryer mesh belt 100% polyester filter mesh belt, polyester plain weave mesh belt
Polyester dryer screen is a high-quality filter component specially designed for industrial drying equipment, providing reliable performance in plastic, chemical and textile processing. It is made of high-quality polyester fiber and features excellent heat resistance (up to 150 °C) and chemical stability, capable of withstanding the corrosion of most acids, alkalis and organic solvents.
The feature of the screen is a precisely woven structure with uniform mesh size (ranging from 20 to 200 mesh) to ensure consistent filtration. It effectively captures impurities, dust and super-large particles, while allowing air and materials to flow smoothly, improving drying efficiency and product quality. Its durable structure minimizes wear and tear, extends service life and reduces replacement frequency.
Lightweight yet sturdy, the screen is easy to install and clean, reducing maintenance costs. It is compatible with most standard dryer models and can provide universal applicability in various industrial scenarios. Whether it's PET resin drying, fiber processing, or chemical material dehydration, our polyester dryer screens offer stable and efficient filtration to optimize your production process.
We offer customizable mesh sizes and dimensions to meet specific customer requirements, ensuring perfect fit and performance. Choose our polyester dryer screen to achieve reliable filtration, long-lasting durability and enhanced operational efficiency
We offer customizable mesh sizes and dimensions to meet specific customer requirements, ensuring perfect fit and performance. Choose our polyester dryer screen for reliable filtration, long-lasting durability, and enhanced operational efficiency.
| Weaving Type |
Model |
Thread Diameter |
Density(No.s/cm) |
Strength ((N/cm) |
Air Permeability (m3/m2h) |
| (mm) |
| Warp |
Weft |
Warp |
Weft |
| 2-shed plain weaving |
05802 |
0.75 |
0.8 |
4.7-5 |
4.8-5 |
940 |
20000 |
| 05102 |
1 |
1 |
4.7-5.2 |
4.3-5 |
1600 |
15000 |
| 06702 |
0.7 |
0.7 |
8 |
7 |
1600 |
11000 |
| 07102 |
0.7 |
1 |
6.6-7 |
4.3-4.6 |
1100 |
15000 |
| 08552 |
0.55 |
0.55 |
7.5-8 |
8.5-9 |
850 |
850-6500 |
| 09452 |
0.45 |
0.45 |
10 |
8.6 |
1600 |
16000 |
| 09502 |
0.5 |
0.5 |
8.5-9 |
10-10.5 |
750 |
10000 |
| 12502 |
0.5 |
0.5 |
13.5 |
8.5 |
1800 |
6500 |
| 3shed plain weaving |
8603 |
0.5 |
0.6 |
10 |
9 |
1600 |
14000 |
| 8903 |
0.9 |
0.9 |
7.8-8 |
5-5.5 |
2100 |
7500-8500 |
| 7803 |
0.7 |
0.8 |
8 |
8 |
1600 |
10000 |
| 20353 |
0.3 |
0.35 |
22 |
14.5 |
1200 |
13000 |
Polyester Mesh Belt Data Sheet
| Product Name |
Polyester Mesh Belt White High Tension Plain Weave 100% Polyester Mesh Belt Used For Conveyor Belt |
| Loop Size |
Small Medium Large Loop |
| Material |
100% Polyester |
| Applicable Industries |
Energy & Mining Food & Beverage Shops, Advertising Company , Paper Making Industry |
| Color |
Blue , white and Red |
| Certificate |
ISO9001 |
| Type |
Polyester Dryer Belt
Polyester Sprial Press Filter Belt
|
| Packaging |
Plywood Case and woven mesh |
Polyester Mesh Belt Advantage
-1. The spiral filter screen is a kind of spiral screen with fillers in the middle, which can reduce air permeability, compact the mesh holes, reduce material loss on the mesh holes, and increase the lateral rigidity of the grid
2. Due to the herringbone design of the mesh belt, it can quickly separate sludge from the mesh belt and is less likely to stick to sludge. It generates a large amount of sludge, is easy to clean and the connection is convenient and fast.
3. Spiral pressure filter screens are mainly used for sludge dewatering in sewage treatment plants. It has the characteristics of air
Permeability and water permeability, high-temperature resistance up to 180 ℃, acid and alkali resistance, and sludge impermeability.
4. Due to its design structure, the sludge can be easily peeled off after pressure filtration, making it easy to clean. Service lifet is very long.
Polyester Mesh Belt Packing detail
1. The spiral filter screen is a type of spiral filter screen with packing in the middle, which can reduce air permeability, make the mesh compact, reduce material loss on the mesh, and increase the lateral rigidity of the grid
2. Due to the herringbone design of the mesh belt, sludge can be quickly separated from the belt and is less likely to stick to the sludge. It generates a large amount of sludge, is easy to clean and the connection is convenient and fast.
3. Spiral pressure filter screens are mainly used for sludge dewatering in sewage treatment plants. It has the characteristics of air
Permeability and water permeability, high-temperature resistance up to 180 ℃, acid and alkali resistance, and sludge impermeability.
Due to its design structure, after pressure filtration, the sludge can be easily stripped off and is easy to clean. Service life
The net is very long.
-
