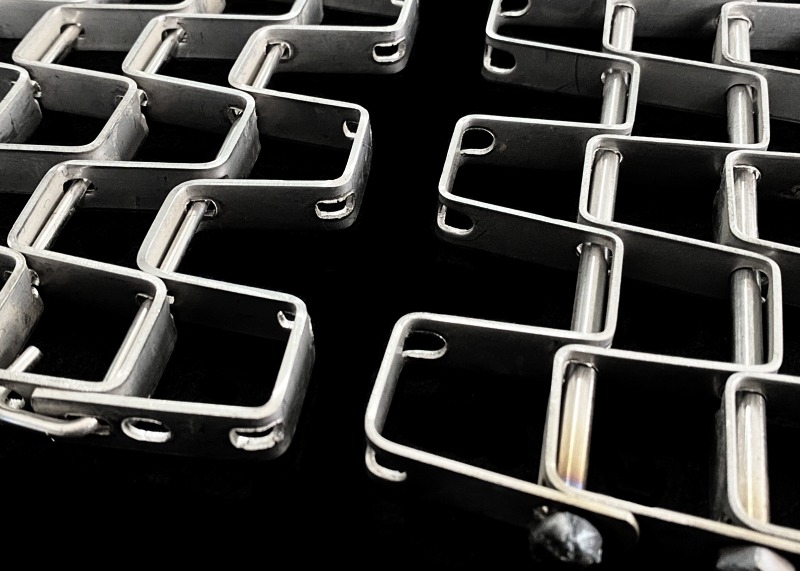

Chain Link Stainless Steel Metal Honeycomb Conveyor Belt Mesh For Beer Bottle Conveyor
Introduction of Honeycomb Conveyor Wire Mesh Belt
Stainless steel conveyor belt is a kind of mechanical parts which is driven by friction to transport materials in a continuous
way. It can be the material in a certain delivery line, from the initial feeding point to the final unloading point between the
formation of a material transport process. It can not only carry out the transport of broken materials, but also can carry out the
transport of articles
Feature
High Hardness
Corrosion resistance
high strength
Good air permeability
Data Sheet of Honeycomb Conveyor Wire Mesh Belt
Item : Honeycomb Conveyor Wire Mesh Belt
Material : carbon steel, SS 201, SS 304, SS 316.
Spiral pitch : 12.7 mm to 40 mm.
Rod pitch : 12.7 mm, 25.4 mm, 38.1 mm, 50.8 mm.
Rod diameter : 3 mm, 4 mm, 5 mm, 6 mm, 8 mm.
Belt width : 200 mm to 4000 mm.
Open size : 1" × 1", 1/2" × 1", 1/2" × 1/2".
Belt speed : from less than 1 m/min to 25 m/min.
|
Item
|
Size(mm) |
Sheet thickness(mm) |
sheet width(mm) |
Material |
| Flat wire conveyor belt |
25.4*12.7 |
1.2 |
9.5 |
carbon steel |
| |
25.4*25.4 |
1.2 |
9.5 |
stainless steel |
| |
27.2*18 |
1.5 |
12 |
galvanized steel |
| |
27.2*27.2 |
1.5 |
12 |
|
| |
38.1*38.1 |
1.5-2.0 |
12 |
|
| |
38.1*19 |
1.5-2.0 |
12 |
|
| |
50.8*25.4 |
2.0-2.5 |
15 |
|
| |
50.8*50.8 |
2.0-2.5 |
15 |
|
Drawing of Honeycomb Conveyor Wire Mesh Belt
Please supply these detail size that show in drawing, so that i can give you offer.
If do not know these size, you can tell me the usage and i can suggest suitable belt for you.
Workshop Of Honeycomb Wire Mesh Belt
