Double Layer Polyester Dryer Screen Fabrics Paper Machine Clothing Drying Screen

Large Image : Double Layer Polyester Dryer Screen Fabrics Paper Machine Clothing Drying Screen

Product Details:

Place of Origin:	China
Brand Name:	R&K
Certification:	SGS,FDA,CE
Model Number:	WP-01

Payment & Shipping Terms:

Minimum Order Quantity:	10m
Price:	Negotiable
Packaging Details:	plastic bags and carton or wooden case
Delivery Time:	5-8 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 meters per day

Contact Now

Detailed Product Description

Material:	100% Polyester	Color:	Red Color
Application:	Paper Making	Type:	Mesh Fabric
Feature:	Anti-Static	Product Name:	Polyester Paper Machine Clothing
Weaving Method:	Woven	Name:	Polyester Dryer Screen
Highlight:	Double Layer Fabrics Dryer Screen , Paper Machine Clothing Drying Screen , Double Layer Polyester Dryer Screen

Double Layer Polyester Dryer Screen Fabrics Paper Machine Clothing Drying Screen

Introduction of Polyester Dryer Screen

Double warp dryer fabric is more widely used in ordinary packaging paperboard with low requirements on paper surface properties due to its high fabric strength, multiple air permeability channels and high drying efficiency, and is widely used in high-speed paper machine production.

Features of Polyester Dryer Screen

100% PA yarn for excellent abrasion resistance
Smooth surface, long life
Hydrolysis resistant PET
Widest application
Low caliper, clean running
Resistant to contamination
Very stable

Weave	Double Layer
Air Permeability	available in 200 to 600CFM
Basis Weight	1100 - 1300GSM
Caliper	1.70 -2.10mm
Raw Material	Hydrolysis Resistant Polyester
Monofilament Yarns	Yes
Seam:	Double Density Pin Spiral

Specifications of Polyester Dryer Screen

编织系列及种类 Weaving series&Types	型号 Type	单丝直径 Wire Diameter mm		密度(根/厘米) Density /cm		强度N/cm Tensile Strength			网重 Weight Kg/m2	厚度 Thickness Mm	透气度 Air permeability	透气度 CFM 200Pa
编织系列及种类 Weaving series&Types	型号 Type	经线 Warp	纬线 Weft	经线 Warp	纬线 Weft	网面 Surface	接口 Joint	插接接口 Screw ring interface	网重 Weight Kg/m2	厚度 Thickness Mm	透气度 Air permeability	透气度 CFM 200Pa
3综系列 3-shed series	22503	0.50	0.50	24	12	2000	1400	900	1.06	2.0	(m3/m2/h) 8000	500
3综系列 3-shed series	24503	0.50	0.50	25	12	2000	1400	900	1.10	2.0	7000	438
4综系列 4-shed series	22504	0.50	0.50	24	12	2000	1400	900	1.26	2.1	12000	750
4综系列 4-shed series	24504	0.50	0.50	26	12	2100	1500	950	1.3	2.1	11000	680
8综系列 4-shed series	4106	0.50	0.50	23	12.6	2200	1500	900	1.2	1.75	6800	425
圆丝干网 Round wire series	4106-1	0.5	0.3	22.8		2200	1500	900	1.3	1.8	8000	500
圆丝干网 Round wire series	4106-1	0.5	0.7	22.8		2200	1500	900	1.3	1.8	8000	500
扁丝干网 Flat wire series	4106-2	0.35*0.68	0.50	19.6	15.7	2200	1500	900	1.10	1.62	5500	345
	15505	0.25*0.40	0.50	17	13.5	2000	1500	900	0.75	0.83	6500	406
	20654	0.33*0.52	0.65	22	7.5	2000	1400	800	1.02	1.35	10000	625
	18688	0.30*0.58	0.35/0.68	20	18.5	2000	1400	800	1.2	1.40	1600	100
	16904	0.29*1.06	0.90/0.98	15.2	8.6	2600	1800	1500	1.33	1.54	1920	120

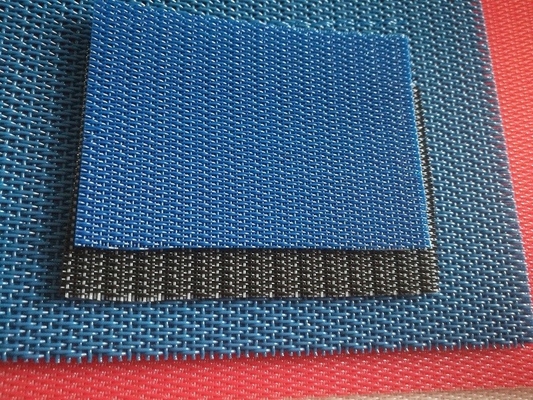

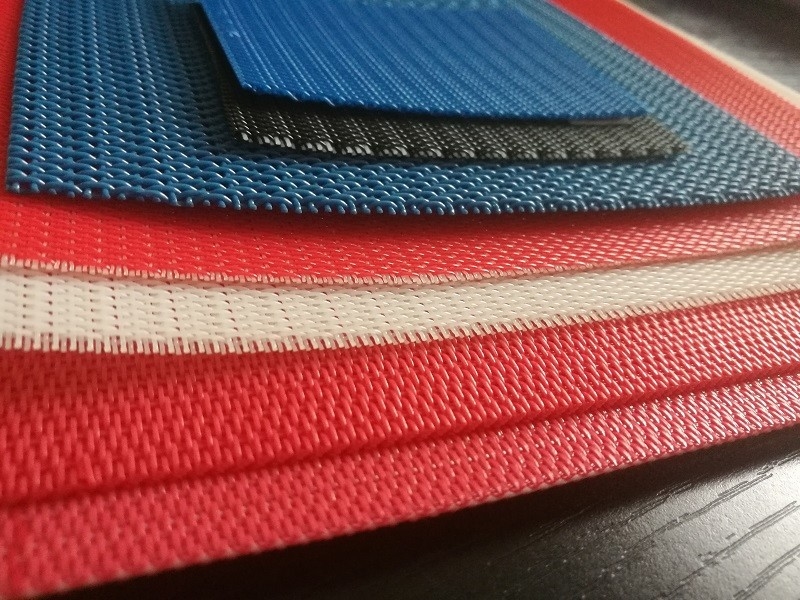

Photo of Polyester Dryer Screen

Double Layer Polyester Dryer Screen Fabrics Paper Machine Clothing Drying Screen 0
