Product Details:
Payment & Shipping Terms:
|
| Material: | 100% Polyester | Color: | White Blue |
|---|---|---|---|
| Name: | Polyester Spiral Sludge Dewatering Conveyor Belt | Usage: | Juice, Coal Mine, Sludge Dewatering |
| Air Permeability: | 186-600CFM | Width: | 0.2-3.2m |
| Length: | 1-100meters | Type: | 0911 0709 |
| Advantage: | Long Service Time, Easy Clean | ||
| High Light: | drying polyester sludge dewatering belt,conveyor polyester sludge dewatering belt,sludge dewatering polyester mesh conveyor belt |
||

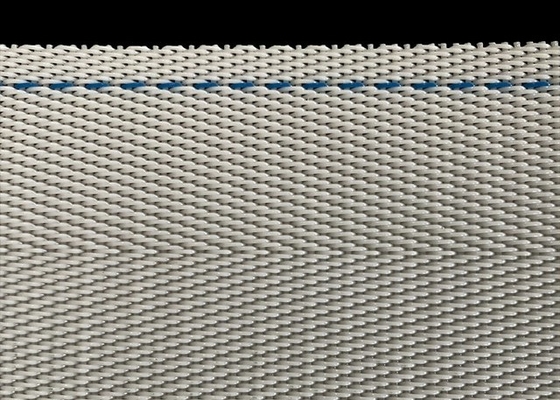

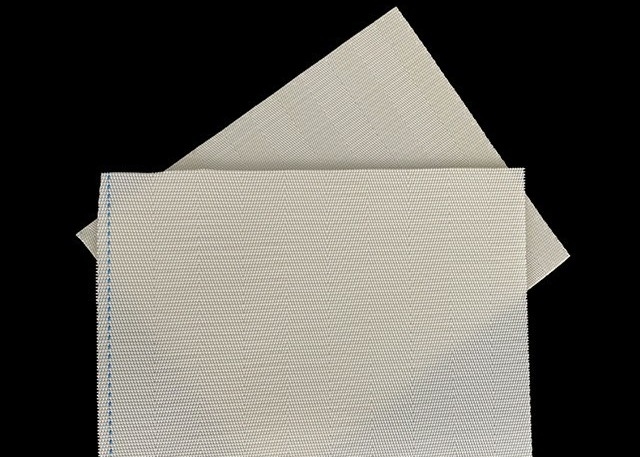

Customized Drying Conveyor Belt Polyester Sludge Dehydration Mesh Belt
Product Introduction:
The sludge dewatering fabric is mainly used for sludge dewatering in sewage treament factories.
It also for Domestic sewage treatment plants,food processing industry,textile industry,tanner
Specifcation sheet:
|
Type |
Spiral loop width mm |
Wire Diameter(mm) |
Tensile Strength (N/cm) |
Weight Kg/m2 |
Thickness mm |
Air Permeability M3/m2h |
||
|
Spiral wire |
Connection wire |
Filler wire |
||||||
| Small Loop 5080A1 | 5.2 | 0.50 | 0.80 | 0.60*3 | 1800 | 1.5 | 2.1 | 4480 |
| Middle Loop 6890A1 | 8 | 0.68 | 0.90 | 0.80*4 | 2000 | 2.0 | 2.45 | 6080 |
| Middle Loop 6890B1 | 7.15 | 0.68 | 0.90 | 0.90*3 | 2000 | 1.90 | 2.45 | 5760 |
| Middle Loop 6890B2 | 7.15 | 0.68 | 0.90 | 0.80*3 | 2000 | 1.85 | 2.45 | 7750 |
| Middle Loop 6890B3 | 7.15 | 0.68 | 0.90 | Flat 2.1*0.80 | 2000 | 1.80 | 2.45 | 9000 |
| Middle Loop 6890B4 | 7.15 | 0.68 | 0.90 | Flat 2.4*0.88 | 2000 | 1.85 | 2.45 | 8000 |
| Big Loop 9090A1 | 8 | 0.90 | 0.90 | 0.90*3 | 2300 | 2.30 | 3.03 | 7500 |
| Big Loop 90110A1 | 10 | 0.90 | 1.10 | 1.0*4 | 2000 | 2.40 | 3.15 | 6240 |
| Big Loop 10090A1 | 8 | 1.0 | 0.90 | 1.0*3 | 2000 | 2.50 | 3.60 | 5000 |
| Big Loop 120130A1 | 1.2 | 1.20 | 1.30 | 1.2*3 | 2600 | 2.85 | 4.30 | 7500 |
Applicant:
Mainly used in belt type filter press,
the rubber belt type vacuum filter,
horizontal vacuum belt filter.
Features of the belt:
Its diameter line direction is not easy to deformation, not springing, not fold.Long service life with acid and alkali resistance, wear resistance, high temperature resistant (at 180 °C environment long time operation) long service life.ies,pulp and paper industry.
