Product Details:
Payment & Shipping Terms:
|
Product Name: | 80*120 Mesh SS316 Stainless Steel Woven Wire Mesh For Anti Acid High Strength | Type: | Weave Wire Mesh |
---|---|---|---|
Hole Shape: | Square Shape | Application: | Screen |
Technique: | Woven | Feature: | Acid Resistant |
Material: | SUS 316 | Key Word: | Stainless Steel Reverse Mesh |
Highlight: | Square 304 Stainless Steel Wire Mesh,Square shape wire mesh ss 304,Acid resistant wire mesh ss 304 |

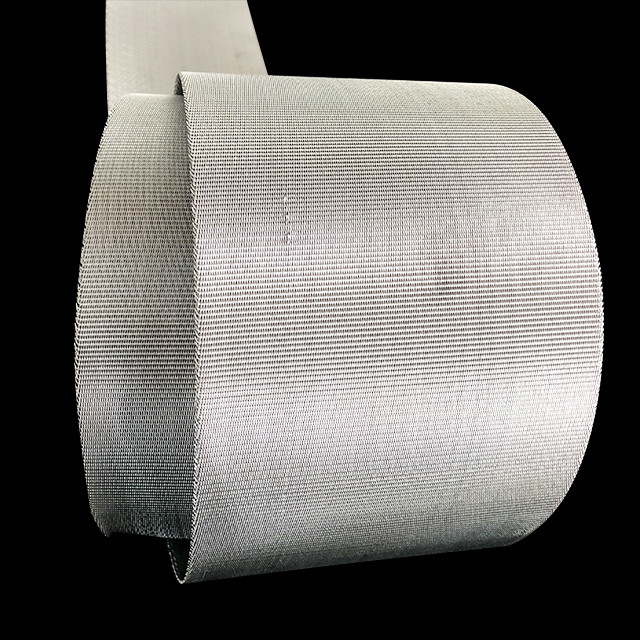

Factory Wholesale Automatic Screen Belt Reverse Dutch Stainless Steel Wire Mesh
Feature of stainless steel Reverse Dutch woven wire mesh
The mesh surface is smooth,the hardness is high,the net is continuous,the deformation is not high,the high temperature resistance
the corrosion resistance,the flexible mesh and excellent filtering performance.
Stainless steel reverse Dutch mesh application:
Uses: Widely used in such as plastic woven bags, plastic film, aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, scientific research and transportation industries. Plastic extruder with automatic belt filter, plastic melt filter, plastic machine belt filter. Products work fine, often with filtration equipment exported to Southeast Asia, Britain, Germany, Japan, the United States, South Africa, Indonesia, Thailand and other countries and regions.
The product is well operated and is usually exported to Southeast Asia, Britain, Germany, Japan, the United States, South Africa, Indonesia, Thailand and other countries and other regions and regions.
Material | 304 stainless steel wire mesh |
Weave | Plain weave |
Mesh count | 20*270mesh-500*3500 mesh |
Thread diameter | 0.25*0.2-0.025*0.015mm |
Opening size | 3-119 micron |
Color | silver |
Brand name | R&K |
Parameter of Dutch mesh
Plain weave Dutch mesh |
||||
Number |
Mesh(warpxweft) |
Wire diameter (warpxweft) |
Aperture (um) |
Weight (kg/m2) |
32# |
8 x 62 |
0.63mm x 0.45mm |
300 |
5.42 |
40# |
10 x 79 |
0.50mm x 0.355mm |
250 |
3.16 |
48# |
12 x 64 |
0.58mm x 0.40mm |
280 |
2.9 |
55# |
14 x 88 |
0.40mm x 0.30mm |
180 |
2.54 |
76# |
19 x 140 |
0.315mm x 0.20mm |
140 |
1.88 |
80# |
20 x 300 |
0.35mm x 0.20mm |
- |
3.6 |
95# |
24 x 110 |
0.355mm x 0.25mm |
120 |
2.45 |
100# |
25 x 140 |
0.28mm x 0.20mm |
100 |
1.95 |
120# |
30 x 150 |
0.25mm x 0.18mm |
80 |
1.68 |
140# |
35 x 175 |
0.224mm x 0.16mm |
71 |
1.52 |
160# |
40 x 200 |
0.20mm x 0.14mm |
60 |
1.40 |
180# |
45 x 250 |
0.16mm x 0.112mm |
56 |
1.09 |
200# |
50 x 250 |
0.14mm x 0.11mm |
53 |
1.04 |
220# |
55.5 x 280 |
0.14mm x 0.10mm |
50 |
0.92 |
240# |
65 x 330 |
0.11mm x 0.08mm |
36 |
0.71 |
280#(1) |
70 x 350 |
0.11mm x 0.08mm |
35 |
0.72 |
280#(2) |
70 x 385 |
0.11mm x 0.07mm |
32 |
0.75 |
300# |
78 x 700 |
0.11mm x 0.08mm |
30 |
1.39 |
315#(1) |
80 x 400 |
0.10mm x 0.065mm |
40 |
0.62 |
315#(2) |
80 x 600 |
0.10mm x 0.06mm |
- |
0.74 |
315#(3) |
80 x 800 |
0.15mm x 0.04mm |
- |
0.77 |
320# |
81 x 780 |
0.10mm x 0.07mm |
30 |
1.22 |
354# |
90 x 550 |
0.12mm x 0.05 |
- |
0.667 |
Width:1m-1.6m |
