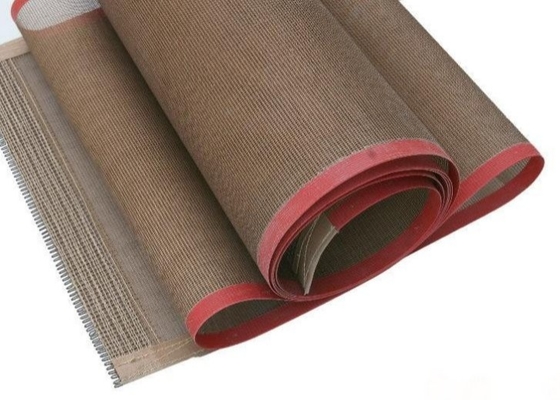

Coated Fiberglass Open Mesh Food Grade Ptfe Conveyor Belt 30cm to 4.3m

Coated Fiberglass Open Mesh Food Grade Ptfe Conveyor Belt 30cm to 4.3m
Coated Fiberglass Open Mesh Food Grade Ptfe Conveyor Belt 30cm to 4.3m Coated Fiberglass Open Mesh Food Grade Ptfe Conveyor Belt 30cm to 4.3m

Large Image :  Coated Fiberglass Open Mesh Food Grade Ptfe Conveyor Belt 30cm to 4.3m

Product Details:
Place of Origin: China
Brand Name: Reking
Certification: CE SGS
Model Number: conveyor belt
Payment & Shipping Terms:
Minimum Order Quantity: 3 meters
Price: Negotiable
Packaging Details: plywood box
Delivery Time: up to your quantity
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 5000 meters per month
Detailed Product Description
Features: High Temperature Resistance Keywords: PTFE Conveyor Belts
Material: Fiberglass And Kevlar Material Brand Name: REKING
Hole Size: 1*1mm 2*2mm 4*4mm 6*6mm 8*8mm Width: 30cm To 4.3m
Weight: 120-160g/m2 Length: We Will Do According To Your Demands
High Light:

Open Mesh Ptfe Conveyor Belt

,

Ptfe Conveyor Belt 4.3m

,

ptfe mesh belt 4.3m

Coated Fiberglass Open Mesh Food Grade Ptfe Conveyor Belt



Conveyor Belts Description



PTFE mesh belts are used in applications such as the drying of printed products for example; point of display stands, T-shirts, glass and mass produced paper prints. Print dryers usually opt for Ultra violet, Infra red or hot air as the heat source to dry.



Other applications range from the drying of cereals, non woven's, charcoal interlinings, carpet & carpet tiles, printed circuit boards and shrink-wrap tunnels but to name a few.



Conveyor Belt Specification



Item No. Mesh Size Material Thickness Weight Temperature Resistance Max Width Tensile Strength
(mm) (mm) (g/m2) (°C) (mm) (N/cm)
6001 1x1 Fiberglass 0.5 370 -70~260 3000 310/290
6002 2x2 Fiberglass 0.7 450 -70~260 3000 350/310
6003 4x4 Fiberglass 1.0 400 -70~260 4000 390/320
6004 4x4 Fiberglass 1.0 450 -70~260 4000 390/320
6007 4x4 Fiberglass+ 1.2 600 -70~260 4000 895/370
6008 4x4 Fiberglass 1.0 500 -70~260 4000 395/370
6010 4x4 Fiberglass 1.0 500 -70~260 4000 900/600
6012 4x4 Fiberglass 1.0 550 -70~260 4000 395/370
6013 10x10 Fiberglass 1.2 450 -70~260 3000 360/300
6014 0.5x1 Fiberglass 0.5 420 -70~260 3000 310/290
6015 2x2.5 Fiberglass 0.9 600 -70~260 3000 390/320



Conveyor Belts Features



1. It is used between -196 °C and 300 °C, with weather resistance and anti-aging.
2. Resistant to chemical corrosion, resistant to strong acids, strong alkalis and various organic solvents;
3. Non-adhesive: not easy to adhere to any substance. It is easy to clean all kinds of oil stains, stains or other attachments attached to its surface; almost all adhesive substances such as paste, resin, paint, etc. can be easily removed;
4. Dimensional stability (extension coefficient less than five thousandths), high strength, with good mechanical properties;
5. Anti-bending fatigue, can be used for smaller wheel diameters,
6. Resistant to pharmaceutical agents, non-toxic, almost resistant to all pharmaceutical products;
7. Rire retardant,
8. Breathability: The air permeability of the conveyor belt is high, the heat source is reduced, and the drying efficiency is improved.





Conveyor Belt Application



It is suitable for use of teflen conveyor belt for hot air and heat transfer conditions .

A : textile , printing and dyeing : printing drying , bleaching cloth drying , fabric shrinkage drying , non-woven cloth drying and other drying road , drying conveyor belt

B : silk screen , printing: loose dryer , offset printing press , UV series light solid machine , paper oil drying , UV drying , plastic products silk printing drying and other drying road , oven conveyor belt .

C : other items : high frequency drying , microwave drying , all kinds of food freezing and thawing , baking , packaging thermal contraction , general water cut of items fast drying , solvent ink drying chamber conduction band.





Coated Fiberglass Open Mesh Food Grade Ptfe Conveyor Belt 30cm to 4.3m 0
