60mesh Stainless Steel Crimped Wire Mesh Ss304 SS316 Wire Mesh Corrosion Protection

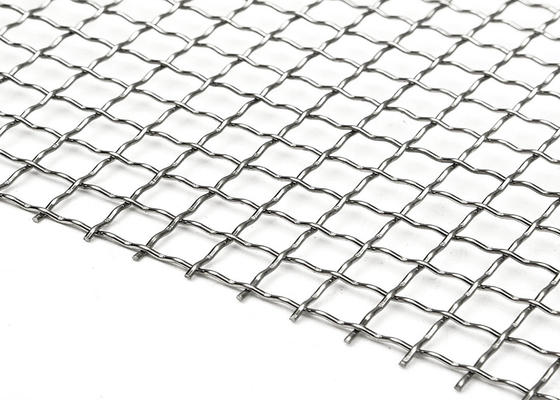

Large Image : 60mesh Stainless Steel Crimped Wire Mesh Ss304 SS316 Wire Mesh Corrosion Protection

Product Details:

Place of Origin:	Hebei,China
Brand Name:	R&K
Certification:	ISO9001:2008,SGS,FDA
Model Number:	R&K-SS

Payment & Shipping Terms:

Minimum Order Quantity:	1m
Price:	negotiation
Packaging Details:	Packing by rolls or folded then plastic bags inside carton or other packages according to the customers' demand.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union,Paypal,Trade assurance.Credit card.
Supply Ability:	2000 square meter per month

Contact Now

Detailed Product Description

Product Name:	304 60 Mesh Stainless Steel Woven Wire Mesh Plain Weave Filter Mesh	Material:	Stainless Steel 304 ,316
Weave Type:	Plain/Twill/Dutch	Mesh Count:	60 Mesh
Width:	1m	Color:	Silver
Application:	Filtration	Type:	Crimped Wire Mesh
High Light:	60mesh Crimped Wire Mesh , 60mesh SS316 Wire Mesh , Crimped Wire Mesh Corrosion Protection

Stainless Steel Wire Mesh Crimped Wire Mesh Ss 304 316 Wire Mesh

Description of stainless steel wire mesh:

Product name	Stainless Steel Wire Mesh Crimped Wire Mesh Ss 304 316 Wire Mesh
Material:	SUS302, 304, 304L, 316, 316L, 310s
Type	steel crimped wire mesh,weave mesh ,
Weave	plain weave ,twill weave
Mesh Count	60 mesh
Width	1 meter
Length	30 meters
Pack	roll

Stainless steel mesh is classified by variety: 1. Stainless steel plain weave mesh. 2. Stainless steel twill mesh. 3. Stainless steel bamboo mesh. 4. Five shed stainless steel mesh. 5. Stainless steel perforated mesh. 6. Stainless steel crimped wire mesh. 7. Stainless steel chain link fence. 8. Stainless steel expanded metal mesh. 9. Stainless steel welded wire mesh. 10. Stainless steel hexagonal mesh. 11. Stainless steel pad mesh. 12. Stainless steel barbecue net. 13. Stainless steel mine screen. 14. Stainless steel tortoise shell net.

Features of stainless steel wire mesh:

The surface is smooth, rust-proof, corrosion-resistant, non-toxic, hygienic and environmentally friendly. Uses: Hospitals, pasta, meat barbecues, life-use flower baskets, fruit basket series are mainly made of stainless steel wire mesh, using electrolytic polishing technology for surface treatment, the surface is as bright as a mirror.

Stainless steel is heat-resistant, acid-resistant, corrosion-resistant and wear-resistant. Because of these characteristics, stainless steel mesh is widely used in mining, chemical, food, petroleum, medicine and other industries, mainly for gas and liquid filtration and other media separation.

Specification of the stainless steel wire mesh:

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight (kg/Square meter)
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight (kg/Square meter)
1*1	0.08	2.03	0.92	23.37	92	2
2*2	0.063	1.6	0.437	11.1	87.4	2.5
3*3	0.054	1.37	0.279	7.09	83.8	2.7
4*4	0.047	1.19	0.203	5.16	81.2	2.7
5*5	0.041	1.04	0.159	4.04	79.5	2.6
10*10	0.025	0.64	0.075	1.91	74.9	2
12*12	0.02	0.508	0.063	1.6	75.9	1.5
14*14	0.02	0.508	0.051	1.3	71.9	1.8
16*16	0.018	0.457	0.445	1.13	71.2	1.6
18*18	0.017	0.432	0.386	0.98	69.4	1.6
20*20	0.02	0.24	0.03	0.76	76	0.56
20*20	0.016	0.33	0.034	0.86	72.2	1.1
30*30	0.12	0.305	0.213	0.54	63.9	1.4
30*30	0.0094	0.24	0.243	0.62	72.1	0.84
40*40	0.01	0.254	0.015	0.38	59.9	1.3
50*50	0.0055	0.14	0.0145	0.368	72.4	0.48
60*60	0.0047	0.12	0.012	0.303	71.6	0.42
60*60	0.0059	0.15	0.0107	0.273	64.5	0.65
80*80	0.0055	0.14	0.0069	0.117	45.5	0.76
100*100	0.0045	0.114	0.0055	0.14	55.1	0.59
100*100	0.004	0.102	0.006	0.152	59.8	0.49
120*120	0.0028	0.07	0.0057	0.147	67.7	0.29
150*150	0.0024	0.06	0.0043	0.11	64.7	0.26
150*150	0.0028	0.07	0.0039	0.1	58.8	0.38
165*165	0.0019	0.05	0.0041	0.104	67.5	0.2
180*180	0.0019	0.05	0.0035	0.091	64.5	0.22
180*180	0.0024	0.06	0.0031	0.081	57.4	0.32
200*200	0.0019	0.05	0.003	0.077	60.6	0.24
200*200	0.0024	0.06	0.0026	0.067	52.7	0.35
250*250	0.0016	0.04	0.0024	0.0616	60.6	0.2
270*270	0.0016	0.04	0.0021	0.054	57.4	0.21
300*300	0.0016	0.04	0.0018	0.045	53.5	0.23
325*325	0.0014	0.035	0.0017	0.0432	55.3	0.2
400*400	0.0012	0.03	0.0013	0.0335	52.7	0.18
500*500	0.0009	0.025	0.001	0.0258	50.7	0.15
635*635	0.0007	0.018	0.0008	0.022	55	0.1
