Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stainless Steel Wire Mesh Crimped Wire Mesh Plain Weave Wire Mesh | Material: | Stainless Steel |
|---|---|---|---|
| Weave Type: | Plain | Mesh Count: | 1-10 |
| Width: | 1m | Color: | Silver |
| Application: | Filtration | Micorn: | 1000 Micron |
| High Light: | 1000 Micron Crimped Woven Wire Mesh,1000 Micron Plain Weave Wire Mesh,Crimped Woven Wire Mesh Wear proof |
||

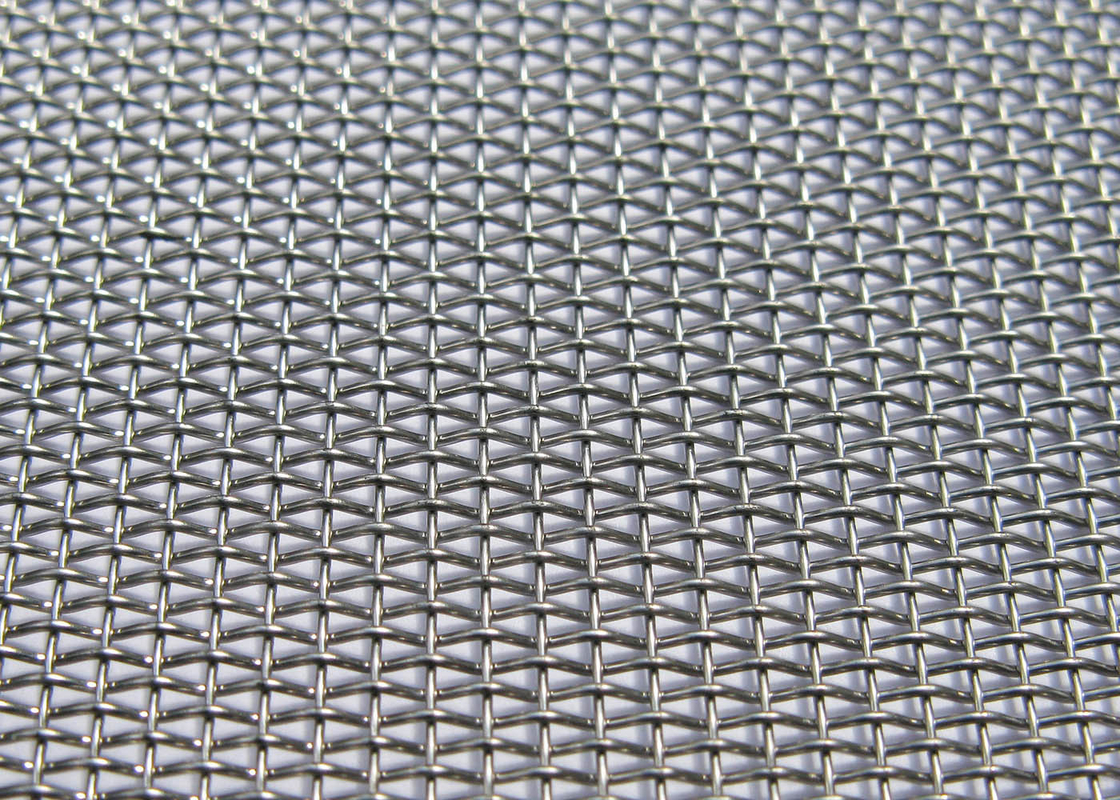

Stainless Steel Wire Mesh Crimped Wire Mesh Plain Weave Wire Mesh
Description of stainless steel wire mesh:
Stainless steel mesh is made of 304, 304L, 316, 316L, 310, 310s and other wires. The surface is smooth, rust-proof, corrosion-resistant, non-toxic, hygienic and environmentally friendly. Uses: Hospital, pasta, meat barbecue, daily life flower baskets, fruit basket series are mainly made of stainless steel wire mesh, and the surface is treated by electrolytic polishing technology, the surface is as bright as a mirror. Stainless steel is heat-resistant, acid-resistant, corrosion-resistant and wear-resistant. Due to these characteristics, stainless steel mesh is widely used in mining, chemical, food, petroleum, pharmaceutical and other industries, mainly for the filtration of gas and liquid and the separation of other media.
| Product Name | Stainless Steel Wire Mesh Crimped Wire Mesh Plain Weave Wire Mesh |
| Mesh Count | 1-635 mesh |
| Wire Diameter | 0.018-0.1um |
| Micron | 3-1000 |
| Length | 30meters |
| Width | 1m |
| Material | 304 316,304N,316L |
| Weave Style | Plain weave,twill weave |
| Color | Sliver |
| Pack | roll |
| Type | woven |
| Application | Filter |
| Advantage | Acid-resisting,corrosion Resistent Etc |
| Hole shape | square hole |
| Technique | woven |
Specification of the stainless steel wire mesh:
| Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight (kg/Square meter) |
||
| Inch | MM | Inch | MM | |||
| 1*1 | 0.08 | 2.03 | 0.92 | 23.37 | 92 | 2 |
| 2*2 | 0.063 | 1.6 | 0.437 | 11.1 | 87.4 | 2.5 |
| 3*3 | 0.054 | 1.37 | 0.279 | 7.09 | 83.8 | 2.7 |
| 4*4 | 0.047 | 1.19 | 0.203 | 5.16 | 81.2 | 2.7 |
| 5*5 | 0.041 | 1.04 | 0.159 | 4.04 | 79.5 | 2.6 |
| 10*10 | 0.025 | 0.64 | 0.075 | 1.91 | 74.9 | 2 |
| 12*12 | 0.02 | 0.508 | 0.063 | 1.6 | 75.9 | 1.5 |
| 14*14 | 0.02 | 0.508 | 0.051 | 1.3 | 71.9 | 1.8 |
| 16*16 | 0.018 | 0.457 | 0.445 | 1.13 | 71.2 | 1.6 |
| 18*18 | 0.017 | 0.432 | 0.386 | 0.98 | 69.4 | 1.6 |
| 20*20 | 0.02 | 0.24 | 0.03 | 0.76 | 76 | 0.56 |
| 20*20 | 0.016 | 0.33 | 0.034 | 0.86 | 72.2 | 1.1 |
| 30*30 | 0.12 | 0.305 | 0.213 | 0.54 | 63.9 | 1.4 |
| 30*30 | 0.0094 | 0.24 | 0.243 | 0.62 | 72.1 | 0.84 |
| 40*40 | 0.01 | 0.254 | 0.015 | 0.38 | 59.9 | 1.3 |
| 50*50 | 0.0055 | 0.14 | 0.0145 | 0.368 | 72.4 | 0.48 |
| 60*60 | 0.0047 | 0.12 | 0.012 | 0.303 | 71.6 | 0.42 |
| 60*60 | 0.0059 | 0.15 | 0.0107 | 0.273 | 64.5 | 0.65 |
| 80*80 | 0.0055 | 0.14 | 0.0069 | 0.117 | 45.5 | 0.76 |
| 100*100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 55.1 | 0.59 |
| 100*100 | 0.004 | 0.102 | 0.006 | 0.152 | 59.8 | 0.49 |
| 120*120 | 0.0028 | 0.07 | 0.0057 | 0.147 | 67.7 | 0.29 |
| 150*150 | 0.0024 | 0.06 | 0.0043 | 0.11 | 64.7 | 0.26 |
| 150*150 | 0.0028 | 0.07 | 0.0039 | 0.1 | 58.8 | 0.38 |
| 165*165 | 0.0019 | 0.05 | 0.0041 | 0.104 | 67.5 | 0.2 |
| 180*180 | 0.0019 | 0.05 | 0.0035 | 0.091 | 64.5 | 0.22 |
| 180*180 | 0.0024 | 0.06 | 0.0031 | 0.081 | 57.4 | 0.32 |
| 200*200 | 0.0019 | 0.05 | 0.003 | 0.077 | 60.6 | 0.24 |
| 200*200 | 0.0024 | 0.06 | 0.0026 | 0.067 | 52.7 | 0.35 |
| 250*250 | 0.0016 | 0.04 | 0.0024 | 0.0616 | 60.6 | 0.2 |
| 270*270 | 0.0016 | 0.04 | 0.0021 | 0.054 | 57.4 | 0.21 |
| 300*300 | 0.0016 | 0.04 | 0.0018 | 0.045 | 53.5 | 0.23 |
| 325*325 | 0.0014 | 0.035 | 0.0017 | 0.0432 | 55.3 | 0.2 |
| 400*400 | 0.0012 | 0.03 | 0.0013 | 0.0335 | 52.7 | 0.18 |
| 500*500 | 0.0009 | 0.025 | 0.001 | 0.0258 | 50.7 | 0.15 |
| 635*635 | 0.0007 | 0.018 | 0.0008 | 0.022 | 55 | 0.1 |
