Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stainless Steel Sieve Mesh Crimped Wire Mesh Ss 304 Woven Wire Mesh | Material: | Stainless Steel |
|---|---|---|---|
| Weave Type: | Plain/Twill/Dutch | Mesh Count: | 10-600 |
| Width: | 1.2m | Color: | Silver |
| Application: | Filtration | Micorn: | 200 Micron |
| High Light: | 200 Micron Stainless Steel Sieve Mesh,crimped wire cloth Ss304,200 Micron crimped wire cloth |
||

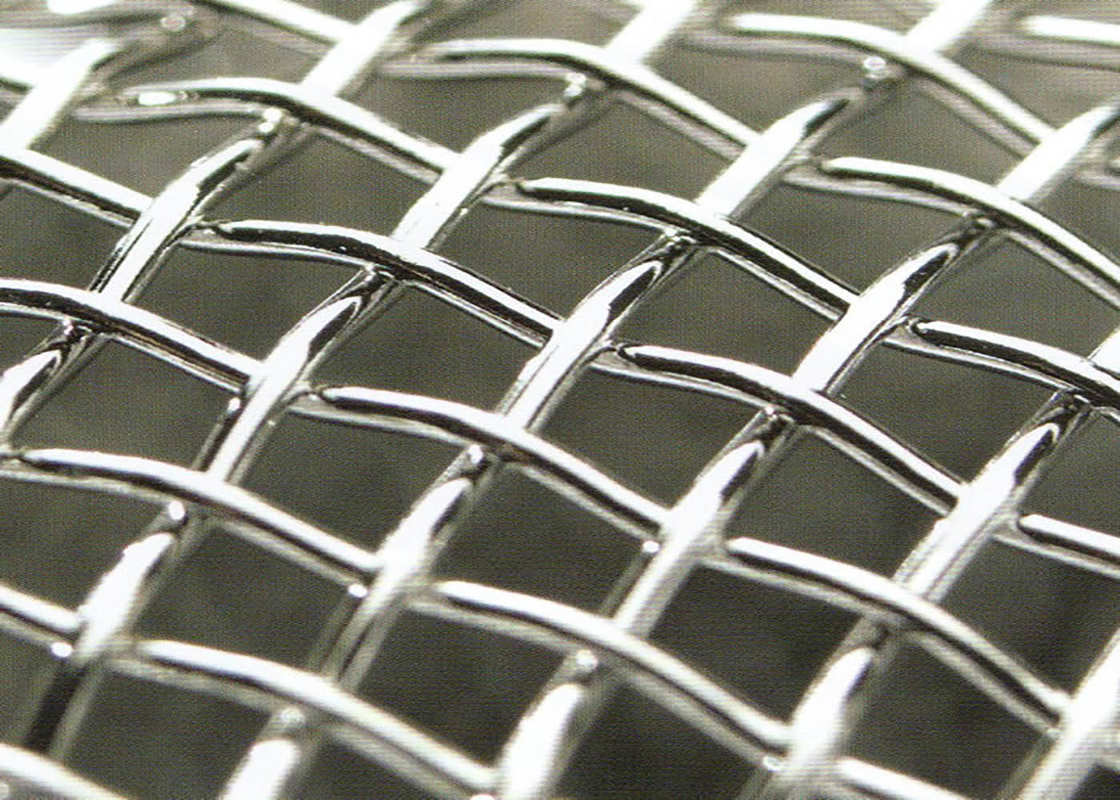

Stainless Steel Sieve Mesh Crimped Wire Mesh Ss 304 Woven Wire Mesh
Description of stainless steel wire mesh:
Stainless steel is heat-resistant, acid-resistant, corrosion-resistant and wear-resistant. Because of these characteristics, stainless steel mesh is widely used in mining, chemical, food, petroleum, medicine and other industries, mainly for gas and liquid filtration and other media separation.
| Product Name | Stainless Steel Sieve Mesh Crimped Wire Mesh Ss 304 Woven Wire Mesh |
| Mesh Count | 1-635 mesh |
| Wire Diameter | 0.018-0.1um |
| Micron | 3-1000 |
| Length | 30meters |
| Width | 1m |
| Material | 304 316,304N,316L |
| Weave Style | Plain weave,twill weave |
| Color | Sliver |
| Pack | roll |
| Type | woven |
| Application | Filter |
| Advantage | Acid-resisting,corrosion Resistent Etc |
| Hole shape | square hole |
| Technique | woven |
Specification of the stainless steel wire mesh:
| Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight (kg/Square meter) |
||
| Inch | MM | Inch | MM | |||
| 1*1 | 0.08 | 2.03 | 0.92 | 23.37 | 92 | 2 |
| 2*2 | 0.063 | 1.6 | 0.437 | 11.1 | 87.4 | 2.5 |
| 3*3 | 0.054 | 1.37 | 0.279 | 7.09 | 83.8 | 2.7 |
| 4*4 | 0.047 | 1.19 | 0.203 | 5.16 | 81.2 | 2.7 |
| 5*5 | 0.041 | 1.04 | 0.159 | 4.04 | 79.5 | 2.6 |
| 10*10 | 0.025 | 0.64 | 0.075 | 1.91 | 74.9 | 2 |
| 12*12 | 0.02 | 0.508 | 0.063 | 1.6 | 75.9 | 1.5 |
| 14*14 | 0.02 | 0.508 | 0.051 | 1.3 | 71.9 | 1.8 |
| 16*16 | 0.018 | 0.457 | 0.445 | 1.13 | 71.2 | 1.6 |
| 18*18 | 0.017 | 0.432 | 0.386 | 0.98 | 69.4 | 1.6 |
| 20*20 | 0.02 | 0.24 | 0.03 | 0.76 | 76 | 0.56 |
| 20*20 | 0.016 | 0.33 | 0.034 | 0.86 | 72.2 | 1.1 |
| 30*30 | 0.12 | 0.305 | 0.213 | 0.54 | 63.9 | 1.4 |
| 30*30 | 0.0094 | 0.24 | 0.243 | 0.62 | 72.1 | 0.84 |
| 40*40 | 0.01 | 0.254 | 0.015 | 0.38 | 59.9 | 1.3 |
| 50*50 | 0.0055 | 0.14 | 0.0145 | 0.368 | 72.4 | 0.48 |
| 60*60 | 0.0047 | 0.12 | 0.012 | 0.303 | 71.6 | 0.42 |
| 60*60 | 0.0059 | 0.15 | 0.0107 | 0.273 | 64.5 | 0.65 |
| 80*80 | 0.0055 | 0.14 | 0.0069 | 0.117 | 45.5 | 0.76 |
| 100*100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 55.1 | 0.59 |
| 100*100 | 0.004 | 0.102 | 0.006 | 0.152 | 59.8 | 0.49 |
| 120*120 | 0.0028 | 0.07 | 0.0057 | 0.147 | 67.7 | 0.29 |
| 150*150 | 0.0024 | 0.06 | 0.0043 | 0.11 | 64.7 | 0.26 |
| 150*150 | 0.0028 | 0.07 | 0.0039 | 0.1 | 58.8 | 0.38 |
| 165*165 | 0.0019 | 0.05 | 0.0041 | 0.104 | 67.5 | 0.2 |
| 180*180 | 0.0019 | 0.05 | 0.0035 | 0.091 | 64.5 | 0.22 |
| 180*180 | 0.0024 | 0.06 | 0.0031 | 0.081 | 57.4 | 0.32 |
| 200*200 | 0.0019 | 0.05 | 0.003 | 0.077 | 60.6 | 0.24 |
| 200*200 | 0.0024 | 0.06 | 0.0026 | 0.067 | 52.7 | 0.35 |
| 250*250 | 0.0016 | 0.04 | 0.0024 | 0.0616 | 60.6 | 0.2 |
| 270*270 | 0.0016 | 0.04 | 0.0021 | 0.054 | 57.4 | 0.21 |
| 300*300 | 0.0016 | 0.04 | 0.0018 | 0.045 | 53.5 | 0.23 |
| 325*325 | 0.0014 | 0.035 | 0.0017 | 0.0432 | 55.3 | 0.2 |
| 400*400 | 0.0012 | 0.03 | 0.0013 | 0.0335 | 52.7 | 0.18 |
| 500*500 | 0.0009 | 0.025 | 0.001 | 0.0258 | 50.7 | 0.15 |
| 635*635 | 0.0007 | 0.018 | 0.0008 | 0.022 | 55 | 0.1 |
