304 316L Stainless Steel Flat Wire Mesh Belt Easy to Clean For Food Washing Cooling
Production Descripitions:

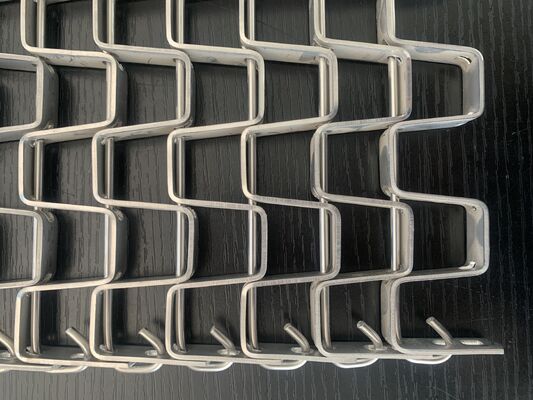

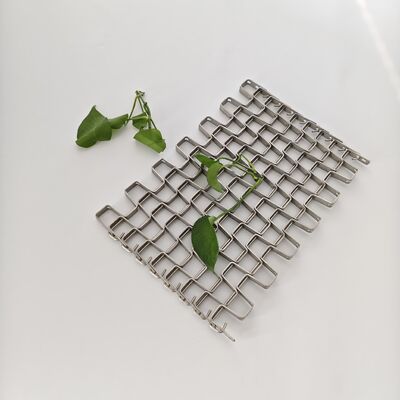

Flat Wire Mesh Belt, also known as horseshoe honeycomb conveyor belt, is assembled by stamped flat metal sheets and cross support rods. It adopts sprocket driving structure for stable operation.
The flat and smooth surface will not scratch conveyed goods. Medium open area ensures good air circulation for baking, drying and cooling processes. Made of stainless steel 304 or 316L, the belt has corrosion resistance and can work within -20℃ to 600℃.
It is widely applied in food baking, drying, washing, cooling lines, as well as industrial oven and heat‑treatment conveying.
Different width, length and specification are optional.
Small cut‑off sample is available with sample charge.
Packed with inner waterproof film and outer wooden case. Multiple trade terms and shipping options are supported. Production lead time is 10‑20 working days.
Technical Parameters:
| Product Name |
Flat Wire Mesh Conveyor System |
| Belt Type |
Flat Wire Conveyor Belt |
| Material |
Stainless Steel / Carbon Steel |
| Wire Diameter |
1.0 mm - 5.0 mm |
| Pitch |
10 mm - 50 mm |
| Belt Width |
Customizable, typically 300 mm - 2000 mm |
| Belt Thickness |
5 mm - 15 mm |
| Working Temperature |
-40°C to 600°C |
| Maximum Load |
Up to 500 kg/m² |
| Applications |
Food processing, heat treatment, drying, conveying heavy materials |
| Edge Type |
Flat Steel Wire Belt Edge / Hooked Edge |
Services:
We supply Flat Wire Mesh Belt with different specifications based on actual application requirements. Width length flat sheet thickness and rod diameter can be adjusted to match on‑site working conditions.
Pre‑sales service includes working condition analysis and parameter confirmation. We assist customers to confirm proper belt size material and structure according to actual operating environment.
After‑sales service covers technical guidance for installation and daily operation. We respond to technical questions about belt usage. Feedback about product practical performance will be accepted for follow‑up reference.
Applications:
‑ Food baking drying washing and cooling production lines
‑ Bakery canned food fruit vegetable processing conveying
‑ Industrial oven high temperature heat‑treatment transportation
‑ Pharmaceutical equipment material conveying
‑ General manufacturing material handling
