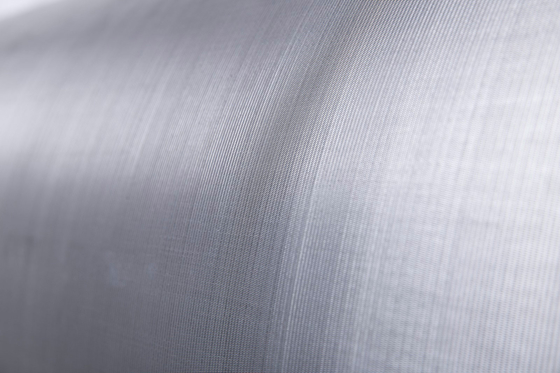

12x60mm Stainless Steel Wire Mesh Filter Screen SS201 304 Plastic Extrusion

12x60mm Stainless Steel Wire Mesh Filter Screen SS201 304 Plastic Extrusion
12x60mm Stainless Steel Wire Mesh Filter Screen SS201 304 Plastic Extrusion

Large Image :  12x60mm Stainless Steel Wire Mesh Filter Screen SS201 304 Plastic Extrusion

Product Details:
Place of Origin: Hebei,China
Brand Name: R&K
Certification: SGS
Model Number: Dutch-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 squaremeter
Price: Negotiate
Packaging Details: Inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 1000 squaremeter per week
Detailed Product Description
Product Name: 12x60 Stainless Steel Wire Mesh Filter Screen SS201 304 Plastic Extrusion Type: Weave Wire Mesh
Hole Shape: Square Shape Application: Screen
Technique: Woven Feature: Acid Resistant
Material: SUS 304 Key Word: Stainless Steel Dutch Mesh
High Light:

60mm Stainless Steel Wire Mesh

,

stainless steel filter screen SS201

,

60mm stainless steel filter screen

12x60 stainless steel wire mesh filter screen SS201 304 plastic extrusion



Description of stainless steel Dutch woven wire mesh



Plain Dutch Weave Wire Mesh or Wire Filters are woven in the same way as plain weave mesh. The exception to ordinary Dutch woven wire mesh is that the warp is heavier than the weft. The Dutch woven wire mesh is produced by using a coarse mesh (mesh, woven wire mesh, wire mesh basket) in the warp yarn and a fine mesh having a relatively small wire in the filler. The shape and location of the opening contributes to particle retention and increases filter cake formation.



Feature of the Dutch mesh



In addition to the so-called open-line weave with square or rectangular openings, it can be woven into a 20 micron aperture fineness, with many combinations of filter weaves, remaining in the micron range.

Compared to fiber mats made of paper, synthetic or metal yarns, woven wire cloth specifications are precise geometries with uniform porosity.

A Dutch braided filter made of wire (stainless steel, brass and alloy) is used to separate solids and liquids for filtration, such as cleaning fuel or hydraulic fluids, or for water treatment.



Material 304 stainless steel wire mesh
Weave Plain weave
Mesh count 20*270mesh-500*3500 mesh
Thread diameter 0.25*0.2-0.025*0.015mm
Opening size 3-119 micron
Color silver
Brand name R&K



Parameter of Dutch mesh

Plain weave Dutch mesh

Number

Mesh(warpxweft)

Wire diameter

(warpxweft)

Aperture

(um)

Weight

(kg/m2)

32#

8 x 62

0.63mm x 0.45mm

300

5.42

40#

10 x 79

0.50mm x 0.355mm

250

3.16

48#

12 x 64

0.58mm x 0.40mm

280

2.9

55#

14 x 88

0.40mm x 0.30mm

180

2.54

76#

19 x 140

0.315mm x 0.20mm

140

1.88

80#

20 x 300

0.35mm x 0.20mm

-

3.6

95#

24 x 110

0.355mm x 0.25mm

120

2.45

100#

25 x 140

0.28mm x 0.20mm

100

1.95

120#

30 x 150

0.25mm x 0.18mm

80

1.68

140#

35 x 175

0.224mm x 0.16mm

71

1.52

160#

40 x 200

0.20mm x 0.14mm

60

1.40

180#

45 x 250

0.16mm x 0.112mm

56

1.09

200#

50 x 250

0.14mm x 0.11mm

53

1.04

220#

55.5 x 280

0.14mm x 0.10mm

50

0.92

240#

65 x 330

0.11mm x 0.08mm

36

0.71

280#(1)

70 x 350

0.11mm x 0.08mm

35

0.72

280#(2)

70 x 385

0.11mm x 0.07mm

32

0.75

300#

78 x 700

0.11mm x 0.08mm

30

1.39

315#(1)

80 x 400

0.10mm x 0.065mm

40

0.62

315#(2)

80 x 600

0.10mm x 0.06mm

-

0.74

315#(3)

80 x 800

0.15mm x 0.04mm

-

0.77

320#

81 x 780

0.10mm x 0.07mm

30

1.22

354#

90 x 550

0.12mm x 0.05

-

0.667

Width:1m-1.6m
