Product Description:
Flat Wire Mesh Belt is a key part for industrial conveyor systems, widely used for material handling across food processing, automotive, electronics and general manufacturing industries.

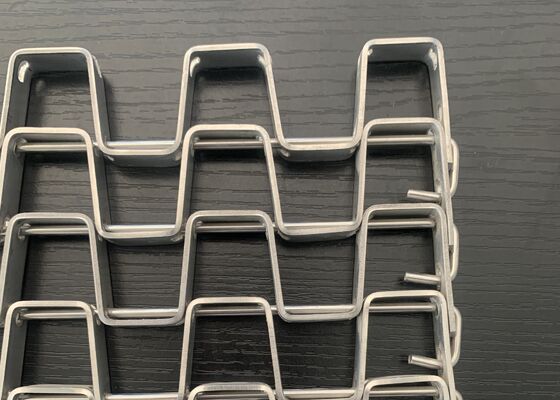

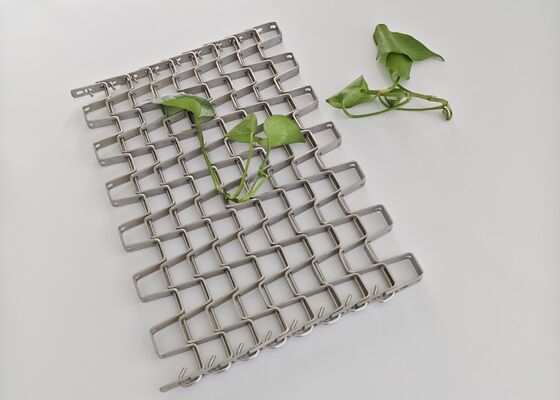

It is built with interlinked flat‑wire mesh structure. This structure delivers good strength and stability to carry heavy loads under tough working conditions. The mesh supports conveyed items well and lowers the risk of small parts falling through.
Its open mesh enables good airflow, heat dissipation and liquid drainage. It works well for cooling, drying and washing processes. The structure is easy to clean, which meets hygiene requirements for food processing.
With modular structure, this belt is easy to install, disassemble and repair on‑site, reducing downtime. It features good wear resistance and long service life. It runs with low friction and low vibration for smooth and quiet operation.
Suitable for multiple industrial working conditions, Flat Wire Mesh Belt provides stable and adaptable conveying performance for material handling.
Applications:
- Food processing for baking drying washing and cooling
- Bakery canned food and fruit vegetable production conveying
- Industrial oven heat‑treatment transportation
- Pharmaceutical equipment material conveying
- General manufacturing material handling
Technical Parameters:
| Product Name |
Flat Wire Mesh Conveyor System |
| Belt Type |
Flat Wire Conveyor Belt |
| Material |
Stainless Steel / Carbon Steel |
| Wire Diameter |
1.0 mm - 5.0 mm |
| Pitch |
10 mm - 50 mm |
| Belt Width |
Customizable, typically 300 mm - 2000 mm |
| Belt Thickness |
5 mm - 15 mm |
| Working Temperature |
-40°C to 600°C |
| Maximum Load |
Up to 500 kg/m² |
| Applications |
Food processing, heat treatment, drying, conveying heavy materials |
| Edge Type |
Flat Steel Wire Belt Edge / Hooked Edge |
FAQ:
Q: Can the Flat Wire Mesh Belt be customized?
A: Yes. Width length flat sheet thickness and rod diameter can be adjusted according to site working conditions.
Q: Is sample available?
A: Small cut‑off sample is available. Sample charge will apply.
Q: What material options are available?
A: Stainless steel 304 and 316L are optional for different corrosion and temperature requirements.
Q: What is the production lead time?
A: Production lead time is 10‑20 working days after specification confirmation.
Q: What kind of pre‑sales support can you provide?
A: We offer working condition analysis and parameter confirmation support before production.
Q: What about after‑sales service?
A: We provide technical guidance for installation and operation. Technical questions about belt usage will be responded. Product use feedback is accepted.
Q: What packing and shipping methods are supported?
A: Packed with inner waterproof film and outer wooden case. Sea air and express shipping are available. Multiple trade terms can be adopted.
