Product Details:
Payment & Shipping Terms:
|
| Product Name: | Tea Drying Strawberry Cleaning Oven Chain Wire Mesh Belts | Keyword: | Chain Wire Mesh Belts |
|---|---|---|---|
| Material: | 304 316 Stainless Steel | Width: | 1m |
| Chain Pitch: | 50.8mm | Rod Pitch: | 10mm |
| Spiral Pitch: | 7mm | Wire Diameter: | 1.5mm |
| Support Rod Diameter: | 5mm | Main Feature: | Food Grade Material |
| High Light: | tea drying chain mesh conveyor belt,chain wire mesh belts,strawberry cleaning wire mesh belt |
||
Tea Drying Strawberry Cleaning Oven Chain Wire Mesh Belts
Chain Link Wire Mesh Belt Introduction

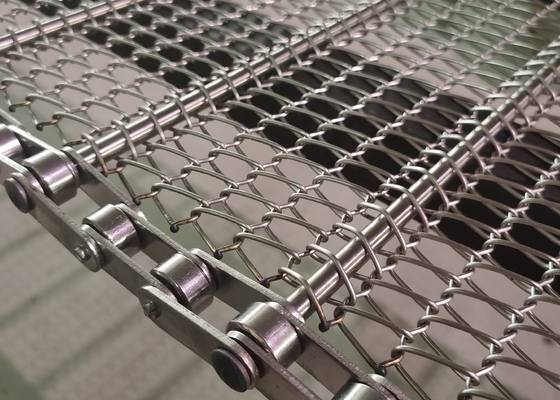

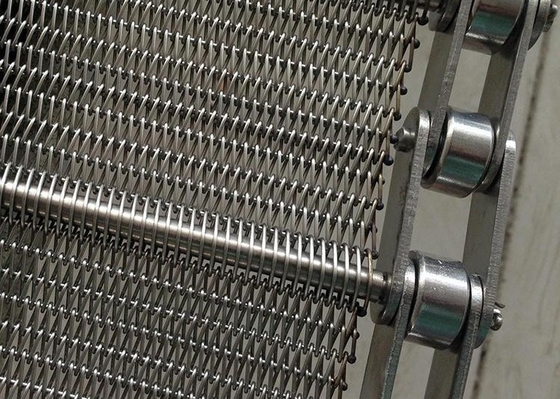

Chain Driven Belt is built with ring wires with bar links or side chains. Robust metal wire provides a flat, stable surface. It
is suited to convey heavy loads and unstable or fragile products that require good support from the conveyor belt.
We offer flights and side guards to meet all product handling needs. It is available with multiple drive options including
rollers, sprockets, and side chain.Eye Link Mesh Belt is built with ring wires with bar links or side chains. Robust metal wire provides a flat, stable surface. It
is suited to convey heavy loads and unstable or fragile products that require good support from the conveyor belt.
| Keywords | chain link wire mesh belt |
| Material | 316 stainless steel |
| Size | customized |
| Package | plastic film and plywood box |
| After sales service | life time online video support |
Chain Link Wire Mesh Belt Features
Economic belt : Chain link wire mesh belt structure is sample and do not need cost much but has widely usage ,
Flat and smooth surface : Chain link wire mesh belt has same hole size and also have chain edge, so it is very smooth and work well .
Good load ability : Chain link wire mesh belt is made of stainless steel and also have chain edge , so it can load many not such heavy goods .
Positive drive without creeping, driven by sprockets.
Large open area enables washing or drying of products on the chainmeshbelt
It is not suitable for transportation of products, which leave residues on the chainbelt
Chain Link Wire Mesh Belt Usage
It is widely used in the electronics industry, the solidification of the circuit board, solid fusion, drying, reflow
soldering. Cap industry of plastic drying; for chocolate, biscuits, fish baked, frozen and dry, with B network edge can be used in food industry chain drive.
Chain Link Wire Mesh Belt Advantages:
1. Flat surface, easy to install and clean.
2. Positive drive, high load capacity, modular design
3. Strong corrosion resistance, tensile strength.
4. Good acid resistance, alkali resistance and low / high temperature resistance.
5. Wire diameter can be customized.
6. Reinforcement bar links are made for heavy load and high speed.
