Product Details:
Payment & Shipping Terms:
|
| Brand Name: | R&K | Keywords: | PTFE Conveyor Belts |
|---|---|---|---|
| Material: | Fiberglass And Kevlar Material | Hole Size: | 1*1mm 2*2mm 4*4mm 6*6mm 8*8mm |
| Width: | 30cm To 4.3m | Weight: | 120-160g/m2 |
| Length: | We Will Do According To Your Demands | Machinery Test Report:: | Provided |
| High Light: | long lasting ptfe conveyor belts,coated fiberglass mesh ptfe conveyor belts,4*4mm teflon coated fiberglass conveyor belt |
||

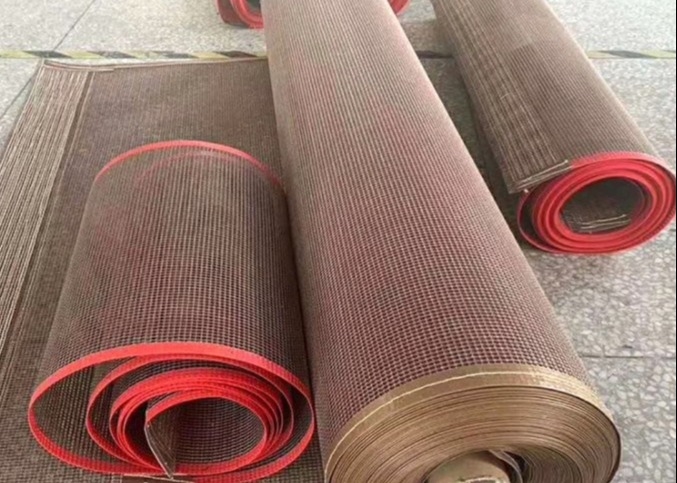

4*4mm Long Lasting High Temperature Resistance Coated Fiberglass Mesh PTFE Dryer Belt
Conveyor Belts Description
PTFE Conveyor Belts are specifically engineered with the mechanical strength needed for the fusing and laminating industries. Its non-stick surface, thermal transfer and high temperature resistance characteristics ensure the flow of woven and non-woven materials through the fusing and lamination process. These belts are for fusing machines, such as Oshima, Kannegiesser, Meyer, Macpi, and many others.
Conveyor Belt Specification
| Mesh Size | Material | Thickness | Weight | Tensile Strength |
| 1*1mm | Fiberglass | 0.5mm | 370g/ m2 | 310/290N/cm |
| 2*2mm | Fiberglass | 0.7mm | 450g/ m2 | 350/310N/cm |
| 4*4mm | Fiberglass | 1.0mm | 400g/ m2 | 390/320N/cm |
| 10*10mm | Fiberglass | 1.2mm | 450g/ m2 | 360/300N/cm |
| 0.5*1mm | Fiberglass | 0.5mm | 420g/ m2 | 310/290N/cm |
| 2*2.5mm | Fiberglass | 0.9mm | 600g/ m2 | 390/320N/cm |
Conveyor Belts Features
1. Lightweight and energy efficiency for economical operation
2. Outstanding temperature resistance (-170oC + 260oC)
3. Low thermal mass
4. Controlled porosity
5. Superior non-stick surface, easy to clean
6. Exceptional strength and dimensional stability
7. Superior tracking
Conveyor Belt Application
It is suitable for use of teflen conveyor belt for hot air and heat transfer conditions .
A : textile , printing and dyeing : printing drying , bleaching cloth drying , fabric shrinkage drying , non-woven cloth drying and other drying road , drying conveyor belt
B : silk screen , printing: loose dryer , offset printing press , UV series light solid machine , paper oil drying , UV drying , plastic products silk printing drying and other drying road , oven conveyor belt .
C : other items : high frequency drying , microwave drying , all kinds of food freezing and thawing , baking , packaging thermal contraction , general water cut of items fast drying , solvent ink drying chamber conduction band.
