Product Details:
Payment & Shipping Terms:
|
| Features: | Non-revealed Sludge | Name: | 16903 Polyester Sludge Dewatering Belt Mainly Matching Horizontal Vacuum Belt Filter |
|---|---|---|---|
| Color:: | White Blue And Black | Size:: | 0.1-50m Long |
| Application:: | Paper Mill Industry | Advantage:: | High Wear Resistance |
| Packing:: | Simple Packing | Durability: | Repeatable Application |
| High Light: | 24408 polyester sludge dewatering belt,horizontal vacuum polyester filter belt,sewage solid control polyester filter belt |
||

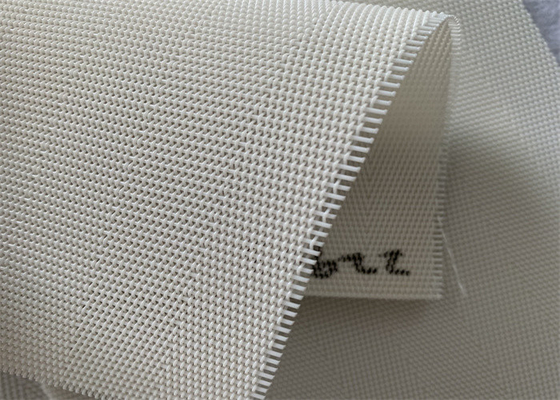

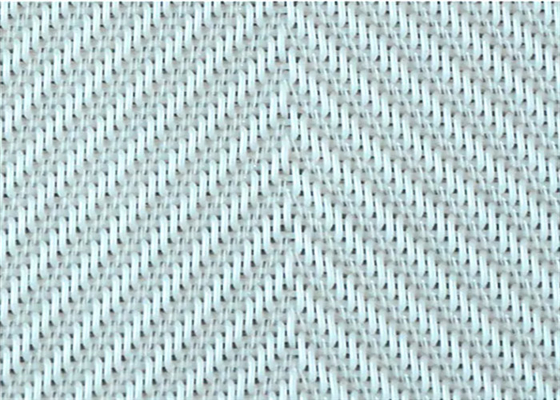

24408 Polyester Sludge Dewatering Belt Mainly Matching Horizontal Vacuum Belt Filter
Polyester Sludge Dewatering Belt Product Introduction
Dewatering in its simplest definition is the removal of water This process is used in
many industries but commonly referred to in construction and wastewater
when water is separated from solids through a variety of different pumping or filtering processes
In wastewater treatment, dewatering is the part of the process whereby sludges are
reduced in volume and converted from a liquid to a solid product
| Model | wire diameter mm |
Density/cm | Air Permeability m3/m2h |
Weight g/㎡ |
Tensile kg/cm |
Application | ||
| Warp | Weft | Warp | Weft | |||||
| WNW14803 | 0.7 | 0.8 | 142 | 47-60 | 3900- 8500 |
1400 | 240 | Sludge dewatering, fruit squeezing |
| WNW16803 | 0.7 | 0.8 | 156 | 46-50 | 6000 | 1400 | 265 | Sludge dewatering, fruit squeezing |
| WNW16904 | 0.75 | 0.9 | 156 | 47 | 8000 | 1800 | 280 | Sludge dewatering in the iron and steel industry |
| WNW121054 | 0.9 | 1.05 | 120 | 42 | 8000 | 1650 | 340 | Sludge dewatering in the iron and steel industry |
| WNW22903 | 0.5 | 0.9 | 220 | 50-55 | 9000- 10000 |
1200 | 200 | Dewatering of domestic sludge |
| WNW20703 | 0.5 | 0.7 | 200 | 70 | 10000 | 1000 | 185 | Dewatering of domestic sludge |
| GW24504 | 0.5 | 0.5 | 240 | 130-140 | 8500- 10000 |
1180 | 220 | Paper industry |
| WNW08903 | 0.9 | 0.9 | 78 | 50 | 8500 | 1430 | 210 | Paper industry |
| WNW16704 | 0.7 | 0.7 | 160 | 90 | 12000 | 1350 | 265 | Building Materials Industry |
Polyester Sludge Dewatering Belt Product Description
Sludge Dewatering Filter Belt Products are widely being used in urban sewage plants
paper mills printing and dyeing plants chemical plants electroplating plants pharmaceutical plants
food factories ceramic factories mining and other industries
Polyester Sludge Dewatering Belt Product Advantage
| We always use poly bag for the goods which ship by air, so that customer can save freight free |
| Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping |
| There also have some customer request us to use the carton to packing their goods |
| We can according to customer's requirement |
