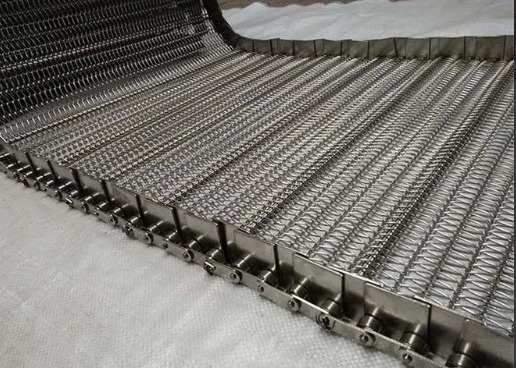

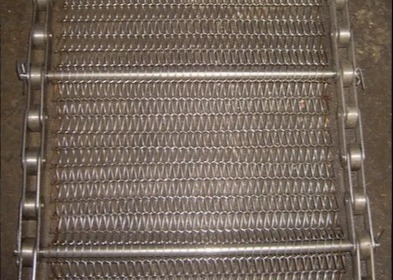

Chain Mesh Conveyor Belt 304 material for cooling conveyor with low temperature resistance
Chain Mesh Conveyor Belt Description :
Spiral mesh belt is widely used in friction drive continuous material transport machines. Capable of handling granular materials, this belt is also compatible with the requirements of the production processes of various industrial enterprises, the formation of the rhythmic flow transport line.
Chain Mesh Conveyor Belt List
| Specification : |
| Material |
carbon steel, SUS 201 304 316 |
| Wire diameter |
1 to 3mm |
| Rod diameter |
4 to 12 mm |
| Spiral wire pitch |
3 to 20 mm |
| Chain pitch |
19.05mm 25.4mm 31.75mm 38.1mm 50.8mm 76.2mm or customized |
| Width |
0.2m to 4m |
| Rod pitch |
5 to 30 mm |
Chain Mesh Conveyor Belt Categories:
1. Fast frozen machine,baking machine, plane conveyor, screw conveyor.
2. Cleaning,sterilization,drying ,cooking,cooling and so on for food machine.
3. Losing bottle annealing,roast flower etc for glass machine .
4. Eachi kinds of pipeline transport.
5. Metal process:powder metallurgy, heat treatment ,hardening, sintering, brazing, roasting, brightening, blacking, bearing, carburizing high-temperature.
6. Washing machine,winding machine,drying machine, etc.
Chain Mesh Conveyor Belt material :
1) Balanced weave,double balanced weave.
2) Conventional Weave,Compound Balanced Weave /cormel weave.
3) Flat wire belt,flat-flex belt,rod reinforced belt.
4) Ladder link belt,flex-link belt,chain driven belt.with upturned edges belt mesh.
