Product Details:
Payment & Shipping Terms:
|
| Name: | Polyester Dryer Screen | Color: | Red And White |
|---|---|---|---|
| Width: | 1-4meters | Length: | 1-100meters |
| Material: | 100%polyester | Usage: | Produce The Non-woven Fabric |
| Type: | 4106 | ||
| High Light: | woven fabric polyester mesh belt,paper making industry polyester mesh belt,papermaking industry polyester dryer screen |
||

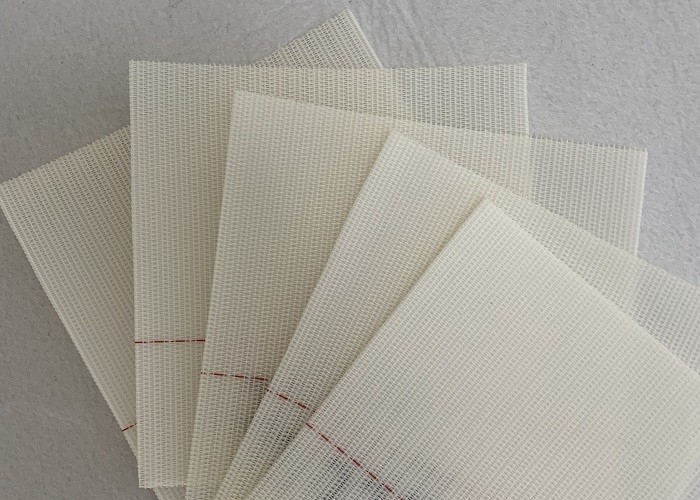

Polyetser Dryer Screen For Woven Fabric For Paper Making Indurty Dryer Mesh Belt
Introduction:
Polyester woven dry nets can be divided into one and a half layer, double-layer , flat wire, double flat wire and special material dryer fabric according to the types.
24503/22503 is suitable for multi-cylinder paper making machines, used in the first 3 groups of dryers, producing paper which weight less than 70 grams.
24504/22504/20654/4106 is used in multi-cylinder paper making machines. Due to its high air permeability, it is generally used in the second half part of the paper machine to produce the paper which weight more than 70 grams of paper.
4106-2/18688/16904 flat wire dryer, generally used in multi-cylinder paper machines, the first 3 groups of dryers to produce high-grade paper.
.
| Product Name | Non-woven fabric dryer belt polyester dryer screen |
| Material | 100% Polyamide thread |
| Technique | dense weave |
| width | 30cm,40cm,60cm,1m or customized |
| Seam | spiral ring,pin seam and endless seam |
| Edge | Ddges sealed by glue;heat resistant cloth |
| Working temperture | -70 ℃ to 180 ℃ |
| HP value | 2 to 8 |
Specification:
|
Type |
Wire Diameter mm |
Density /cm |
Weight Kg/m2 |
Thickness Mm |
CFM 200Pa |
||
|
Warp |
Weft |
Warp |
Weft |
||||
| 22503 | 0.50 | 0.50 | 24 | 12 | 1.06 | 2.0 | 500 |
| 24503 | 0.50 | 0.50 | 25 | 12 | 1.10 | 2.0 | 438 |
| 22504 | 0.50 | 0.50 | 24 | 12 | 1.26 | 2.1 | 750 |
| 24504 | 0.50 | 0.50 | 26 | 12 | 1.3 | 2.1 | 680 |
|
4106 |
0.50 |
0.50 |
23 |
12.6 |
1.2 |
1.75 |
425 |
|
4106-1 |
0.5 |
0.3 |
22.8 |
|
1.3 |
1.8 |
500 |
| 0.7 | |||||||
| 4106-2 | 0.35*0.68 | 0.50 | 19.6 | 15.7 | 1.10 | 1.62 | 345 |
| 15505 | 0.25*0.40 | 0.50 | 17 | 13.5 | 0.75 | 0.83 | 406 |
| 20654 | 0.33*0.52 | 0.65 | 22 | 7.5 | 1.02 | 1.35 | 625 |
| 18688 | 0.30*0.58 | 0.35/0.68 | 20 | 18.5 | 1.2 | 1.40 | 100 |
| 16904 | 0.29*1.06 | 0.90/0.98 | 15.2 | 8.6 | 1.33 | 1.54 | 120 |
