Dryer Polyester Mesh Conveyor Belt For Sss Sms Smms Ssmms Woven Fabric

Dryer Polyester Mesh Conveyor Belt For Sss Sms Smms Ssmms Woven Fabric
Dryer Polyester Mesh Conveyor Belt For Sss Sms Smms Ssmms Woven Fabric

Large Image :  Dryer Polyester Mesh Conveyor Belt For Sss Sms Smms Ssmms Woven Fabric

Product Details:
Place of Origin: China
Brand Name: RK
Model Number: RKDB01
Payment & Shipping Terms:
Minimum Order Quantity: 1square meter
Price: USD 9.8-13.8/square meter
Packaging Details: woven bag+wooden case
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 square meter per month
Detailed Product Description
Name: Polyester Dryer Screen Color: Red And White
Width: 1-4meters Length: 1-100meters
Material: 100%polyester Usage: Produce The Non-woven Fabric
Type: 4106
High Light:

dryer polyester mesh conveyor belt

,

sss fabric polyester mesh conveyor belt

,

ssmms woven fabric polyester dryer screen

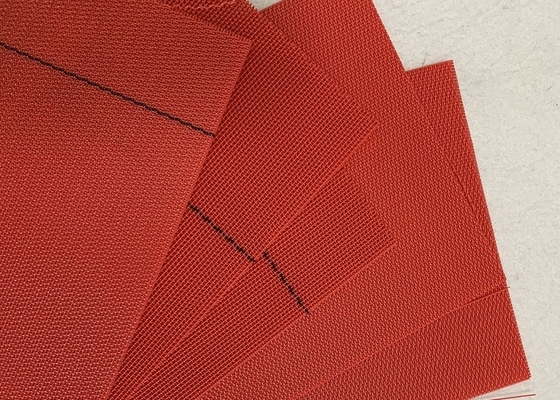

Polyester Dryer Mesh Belt For SSS SMS SMMS SSMMS Woven Fabric

Introduction:

Polyester woven dry nets can be divided into one and a half layer, double-layer , flat wire, double flat wire and special material dryer fabric according to the types



Flat wire, double flat wire polyester woven dryer fabric are generally suitable for the front drying cylinders of the dryer parts, and all high-quality papers can be used for.

Special material woven dryer fabric has the characteristics of high temperature resistance, high wear resistance and aging resistance. It is mainly used for drying paper in paper mills, and for drying parts in other industries.



Product Name Non-woven fabric dryer belt polyester dryer screen
Material 100% Polyamide thread
Technique dense weave
width 30cm,40cm,60cm,1m or customized
Seam spiral ring,pin seam and endless seam
Edge Ddges sealed by glue;heat resistant cloth
Working temperture -70 ℃ to 180 ℃
HP value 2 to 8



Specification:





Type



Wire Diameter mm



Density /cm



Weight

Kg/m2



Thickness

Mm



CFM

200Pa





Warp



Weft



Warp



Weft


22503 0.50 0.50 24 12 1.06 2.0 500
24503 0.50 0.50 25 12 1.10 2.0 438
22504 0.50 0.50 24 12 1.26 2.1 750
24504 0.50 0.50 26 12 1.3 2.1 680



4106



0.50



0.50



23



12.6



1.2



1.75



425



4106-1



0.5

0.3



22.8







1.3



1.8



500

    0.7
4106-2 0.35*0.68 0.50 19.6 15.7 1.10 1.62 345
15505 0.25*0.40 0.50 17 13.5 0.75 0.83 406
20654 0.33*0.52 0.65 22 7.5 1.02 1.35 625
18688 0.30*0.58 0.35/0.68 20 18.5 1.2 1.40 100
16904 0.29*1.06 0.90/0.98 15.2 8.6 1.33 1.54 120



Dryer Polyester Mesh Conveyor Belt For Sss Sms Smms Ssmms Woven Fabric 0

Dryer Polyester Mesh Conveyor Belt For Sss Sms Smms Ssmms Woven Fabric 1

Dryer Polyester Mesh Conveyor Belt For Sss Sms Smms Ssmms Woven Fabric 2
