| Name: | High Precision Protect Environment Polyester Sludge Dewatering Mesh Belt | Color: | White Blue And Black |
|---|---|---|---|
| Key Word: | Paper Mill Long Working Time Paper Pulp | Application: | Paper Mill Industry |
| Advantage: | High Wear Resistance | Packing: | Simple Packing |
| Certificate: | ISO9001 | Material: | 100% Polyester |
| High Light: | 50m polyester sludge dewatering belt,high precision polyester sludge dewatering belt,protect environment polyester mesh belt |
||

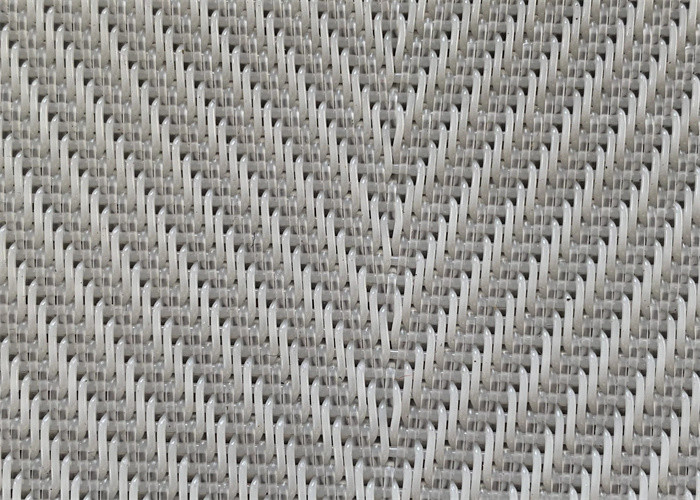

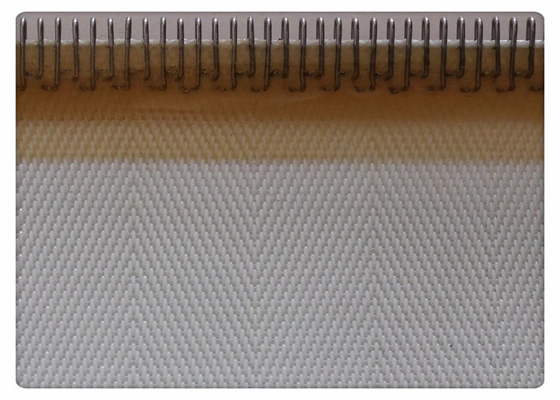

High Precision Protect Environment Polyester Sludge Dewatering Mesh Belt
Polyester Sludge Dewatering Belt Description
This kind of polyester mesh belt is specially designed for waste water treatment systems
as a sludge dewatering belt. Sludge dewatering belt is mainly used for belt type press filter
rubber belt vacuum filter horizontal belt vacuum filter especially for the drying process in paper milll
also used at critical stages of particle board medium density fibreboard (MDF)
manufacture of ceiling tiles, etc.Sludge dewatering belt is made of round or flat
threads,excellent permeation of air and water while keeping out the sludge
Applicable to the municipal sewage sludge,sludge filtrationenterprises
press paper mill pulp,the use of concentrated fruit juice squeezing and other special industry
Due to its unique structure,the sludge is easy to peel off and clean after
the sludge is pressed and filtered,not sticky mud
| name | Polyester Sludge Dewatering Belt |
| Keyword | Urban Swage Treatment |
| material | polyester |
| manufacture method | weave |
| warp filament diameter | 0.90mm |
| weft filament diameter | 1.1mm |
| warp density | 12.8 thread/cm |
| surface tensile strength | 1600N/cm |
| joint tensile strength | 900N/cm |
| working temperature | over 100℃ |
| application | widely used in wastewater treatment of chemical industry, pharmaceutical process, etc. |
| Model | Wire Diameter | Density Root/10cm | Air Permeability m3/m2h | Net Weight g/m2 | Strength kg/cm | Used in | ||
| Wrap | Weft | Wrap | Weft | |||||
| 14803 | 0.7 | 0.8 | 142 | 47-60 | 3900-8500 | 1400 | 240 | Sludge,Squeeze juice |
| 16803 | 0.7 | 0.8 | 156 | 46-50 | 6000 | 1400 | 265 | Sludge,Squeeze juice |
| 16904 | 0.75 | 0.9 | 156 | 47 | 8000 | 1800 | 280 | Iron and steel industry sludge dewatering Living slude dewatering |
| 121054 | 0.9 | 1.05 | 120 | 42 | 8000 | 1650 | 340 | Iron and steel industry sludge dewatering |
| 22903 | 0.5 | 0.9 | 220 | 50-55 | 9000 | 1200 | 200 | Living slude dewatering |
| 20703 | 0.5 | 0.7 | 200 | 70 | 10000 | 1000 | 185 | Living slude dewatering |
| 24504 | 0.5 | 0.5 | 240 | 130-140 | 8500 | 1180 | 220 | Paper dry network |
| 8903 | 0.9 | 0.9 | 78 | 50 | 8500 | 1430 | 210 | industrial sludge dewatering |
| 16704 | 0.7 | 0.7 | 160 | 90 | 12000 | 1350 | 165 | Building materials dewatering |
| 26908 | 0.5 | 0.9 | 26.4 | 69-75 | 5000 | 1364 | 240 | Viscosit of the larger |
| 12 Mesh | 0.75 | 0.8 | 47 | 48 | 650 | 94 | Paper pulp washing | |
Polyester Sludge Dewatering Belt Product Features
| Model:22903 16903 24908 24808 12904 |
| It has high beaking elongation tolerance |
| It has high temperature resistant under 180 degree |
| This fabric belt is widely used in all kinds of industries,such as printing |
| Polyester spiral link dryer fabric belt is also used in papermaking industry |
| 100% polyester monofilament |
Polyester Sludge Dewatering Belt Product Advantage
1 Good permeability air permeability
2 Non-revealed sludge
3 Acid-resisting alkali-resisting heat resistance(180 °C)
4 Because of their designing structure, the sludge can be peel off easily after
pigeonhole filter, so the screen are easily cleaned and have a long working time
5 Therefore they are designed specially for sludge dehydration
