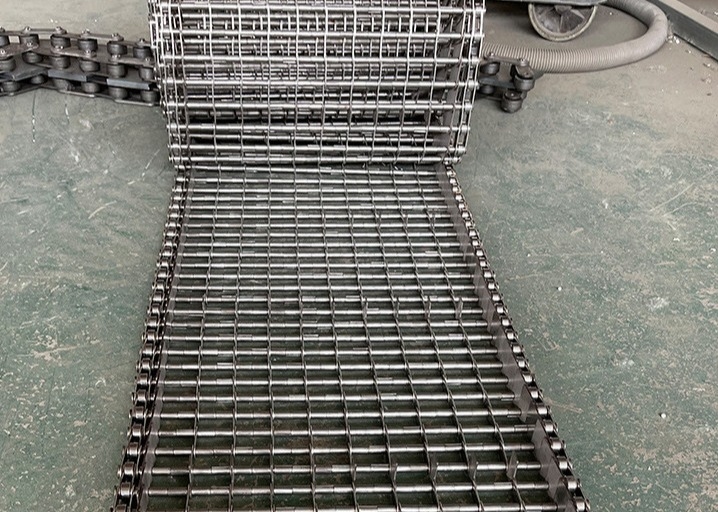

Large Open Areas Sus Eye Link Conveyor Belt For Food Cooling

Large Open Areas Sus Eye Link Conveyor Belt For Food Cooling
Large Open Areas Sus Eye Link Conveyor Belt For Food Cooling

Large Image :  Large Open Areas Sus Eye Link Conveyor Belt For Food Cooling

Product Details:
Place of Origin: China
Brand Name: Reking
Certification: CE SGS
Model Number: Eye Link Conveyor Belt
Payment & Shipping Terms:
Minimum Order Quantity: 3 meters
Price: Negotiable
Packaging Details: plywood box
Delivery Time: up to your quantity
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 5000 meters per month
Detailed Product Description
Features: Large Open Areas Product Name: Large Open Areas Sus Eye Link Conveyor Belt For Food Cooling
Keywords: Eye Link Conveyor Belt Material: 304 316 Stainless Steel
Usage: Food Cooling Width: 50cm
Length: 10m Package: Plastic Film And Wooden Box
High Light:

eye link mesh type conveyor belt

,

food cooling eye link conveyor belt

,

sus eye link conveyor belt

Large Open Areas Sus Eye Link Conveyor Belt For Food Cooling





Eye Link Conveyor Belt Specification

  1. Eye flex conveyor belt, also called eye link conveyor belt, is specially designed to conveying large and heavy products. It has large open area and rugged structure, which can ensure the long service life of eye flex convey belt.
  2. Eye flex conveyor belt material are commonly stainless steel, high carbon steel and galvanized steel. They all have excellent corrosion and rust resistance performance, also they are high temperature resistance, which can be used in the high temperature applications.

Eye Link Conveyor Belt Datas



Product Name Large Open Areas SUS Eye Flex Conveyor Belt Used For Food Cooling
Certificate SGS
Technique Eye Flex Conveyor Belts
Material 201,304,316L,310S,410 etc
Specification

· Chain pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm.

· Rod diameter: 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 12 mm.

· Wire diameter: 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm.



· Spiral pitch: 2.4 mm to 100 mm.

· Rod pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm.

· Belt width: 200 mm to 6,000 mm.

Application Drying,Cooling,Freezing,Pasteurizing,Blanching,Baking and Washing machine
Size Max width can reach to 4000mm , belt length can be customized as your machine.
Other services

Special requirements can be customized



Eye Link Conveyor Belt Advantages



Eye flex conveyor belts have a very flat mesh surface, which guarantees that your products stay flat and conststent throughout the production and packaging process. This means that your product will be more uniform and that product marking will be brought down to a minimum. Moreover, the single level surface ensures that no particles are entrapped between layers.



Eye Link Conveyor Belt Usage



1   Frozen equipment

2   Dewatering equipment

3   Washing machine

4   Filtering equipment

5   Packaging equipment



Eye Link Conveyor Belt Drawing



Large Open Areas Sus Eye Link Conveyor Belt For Food Cooling 0

Eye Link Conveyor Belt Quality Control



Large Open Areas Sus Eye Link Conveyor Belt For Food Cooling 1Large Open Areas Sus Eye Link Conveyor Belt For Food Cooling 2



Eye Link Conveyor Belt Package



Large Open Areas Sus Eye Link Conveyor Belt For Food Cooling 3



Eye Link Conveyor Belt Application



Large Open Areas Sus Eye Link Conveyor Belt For Food Cooling 4

Eye Link Conveyor Belt Workshop



Large Open Areas Sus Eye Link Conveyor Belt For Food Cooling 5Large Open Areas Sus Eye Link Conveyor Belt For Food Cooling 6
