| Keywords: | Compound Balance Weave Conveyor Belt | Belt Material: | 304 316 Stainless Steel |
|---|---|---|---|
| Main Features: | High Temperature Resistant | Application: | Baking Machine |
| Wire Diameter: | 1-3mm | Spiral Pitch: | 5-15mm |
| Rod Pitch: | 10-25mm | Belt Width: | 100-4000mm |
| High Light: | food grade compound balanced belt,baking compound balanced belt,compound balanced wire mesh conveyor belt |
||
Food Grade Stainless Steel Compound Balance Weave Conveyor Belt for Baking
Compound Balance Weave Conveyor Belt Specification
Material:carbon steel,SS201,SS304,SS316,SS314
Spiral pitch:5-15mm
Rod pitch:10-25mm
Wire diameter:1-3mm
Belt width:100-4000mm
Special specifications are available.
Compound balance weave conveyor belt is a variation of balanced weave belt,Right hand and left hand weave forms a very dense and smooth belt with most rod straight and some crimped.The belt is perfect to convey small products because of high dense mesh,such as nuts,bolts,screw,nail,cookies,chemical grain etc.
Compound Balance Weave Conveyor Belt Features
Straight running of the flat wire convoyer belt
Smooth surface of the woven belt, which enables transportation of goods with small contact surface
Long lifetime of these metal belts
It is not suitable for transportation of products, which leave residues on the woven wire belt
Compound Balance Weave Conveyor Belt Application
1 The weave is so close in compound balanced weave belt that they are used in applications,which includes carrying of small parts like nut bolts , screws , nails etc.
2 The high density of compound balanced belt up to they can use in conveying unstable and heavy products .

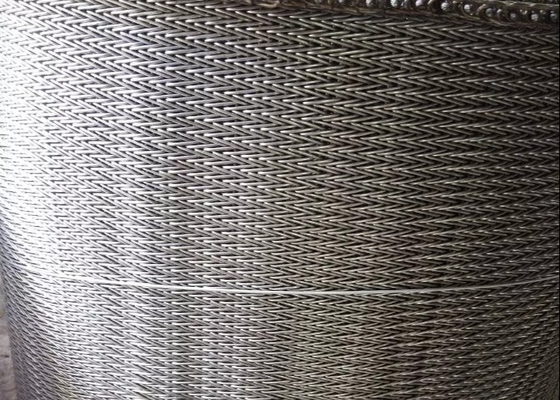

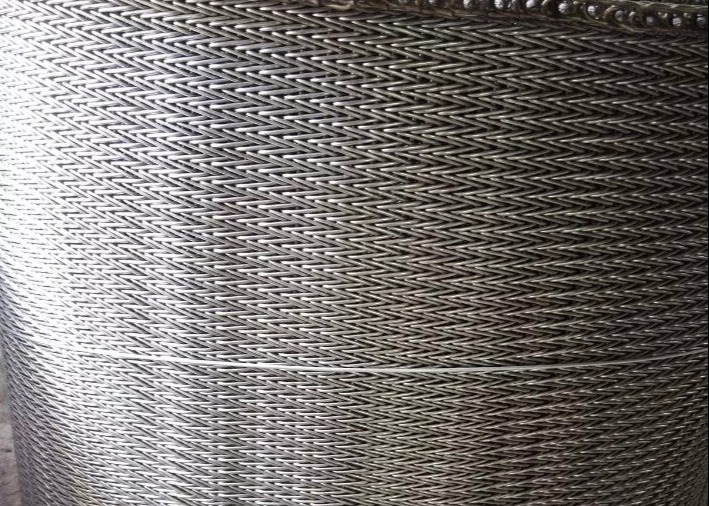

Compound Balance Weave Conveyor Belt Pictures
