Product Details:
Payment & Shipping Terms:
|
| Product Name: | 100% Nylon Material High Toughness 100 Micron Food Grade Nylon Filter Flour Mesh | Length: | 30-70m/roll |
|---|---|---|---|
| Weave Style: | Plain Woven Nylon Mesh | Technique: | Woven |
| Feature: | High Toughness | Color: | White |
| Usage: | Flour Filter | Material: | Nylon |
| Hole: | 100 Micorn | Width: | 0.1-3.6m |
| High Light: | 120 micron nylon filter mesh,90 micron nylon filter mesh,Plain Woven nylon filter mesh |
||

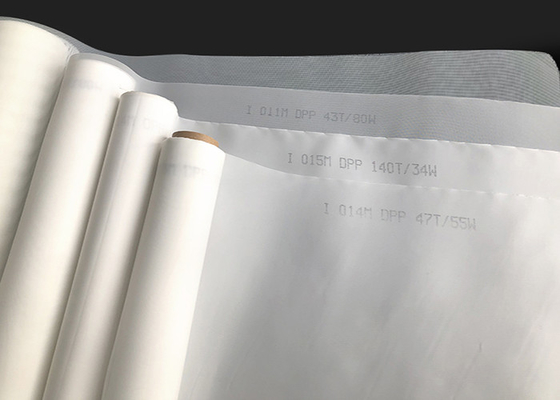

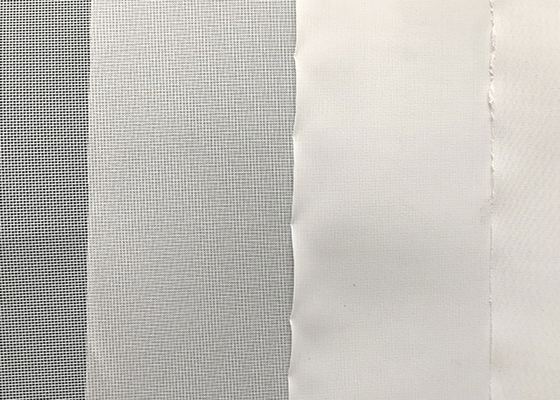

100% Nylon Material High Toughness 100 Micron Food Grade Nylon Filter Flour Mesh
Introduction of Nylon Filter Flour Mesh
| Product name | 100% Nylon Material High Toughness 100 Micron Food Grade Nylon Filter Flour Mesh |
| Material | FDA food grade commercial nylon mesh |
| Color | white, black or customized |
| Weave type | plain woven,twill weave |
| Common Width | 1m, 1.25m, 2.5m, 2.95m or customized |
| Roll length | 30-70m or customized |
| Monofilament Style | Yes |
| Mesh Count/inch | 10-600 mesh/inch |
| Thread diameter | 35-550 micron |
| Mesh Opening | 5-1950 micron |
| Thickness | 60-1100micron |
| package | roll package |
| Food grade | Yes |
| MOQ | 1 meter |
| Band Name | R&K |
| Type | filter mesh, filter cloth, mine sieving mesh, filter disc, filter cylinder |
Advantage of Nylon Filter Flour Mesh
1.Due to their uniformity they can be woven with great precision to give exact and regular apertures
Specification of Nylon Filter Flour Mesh
| NL5/1500 | 5 | 13 | 500 | 1500 | 1000 | 308 |
| NL6/1267 | 6 | 15 | 400 | 1267 | 840 | 228 |
| NL7/1079 | 7 | 18 | 350 | 1079 | 640 | 209 |
| NL8/900 | 8 | 20 | 350 | 900 | 645 | 232 |
| NL9/861 | 9 | 24 | 250 | 861 | 460 | 145 |
| NL10/750 | 10 | 25 | 250 | 750 | 530 | 148 |
| NL12/533 | 12 | 30 | 300 | 533 | 495 | 256 |
| NL14/514 | 14 | 35 | 200 | 514 | 380 | 135 |
| NL16/425 | 16 | 40 | 200 | 425 | 400 | 155 |
| NL16/375 | 16 | 40 | 250 | 375 | 420 | 240 |
| NL17/388 | 17 | 42 | 200 | 388 | 380 | 160 |
| NL18/366 | 18 | 45 | 220 | 366 | 400 | 207 |
| NL20/300 | 20 | 50 | 200 | 300 | 375 | 190 |
Nylon mesh is mostly used for filtering. Flour filter, oil filter, etc. Can be widely used in food factories, flour factories, etc.
The term ‘Mono-filament’ means that each thread used in the construction of the cloth is a single smooth solid strand instead of many smaller diameter threads twisted together, as in a spun or multi-filament material. These mono-filament threads are perfectly round in section and are extruded to very precise and uniform diameters.
