Product Details:
Payment & Shipping Terms:
|
| Material: | 100 % POLYESTER YARN | Mesh Count: | 460mesh |
|---|---|---|---|
| Standard Width: | 105cm/115cm/145cm/165cm/230cm/330cm/360cm | Color: | White Color |
| Popular Mesh Count: | 43T.55T.76T,90T,100T,120T,150T,165T | Inventory: | We Have In Stock Now |
| High Light: | high precision screen printing mesh polyester,110 screen printing mesh,110 polyester silk screen printing mesh |
||
180T 115cm Width White Color Polyester Monofilament Printing Screen
Description For The polyester monofilament printing mesh:
Silk screen printing mesh are widely used in ceramic,glass,electonic components,textile,Garment,CD/DVD Pinting industry,like the life metal advertisement,business card,and the imgae..
Low enlongation silk screen printing mesh is producing in our factory in a wide of rang of the mesh counts,and our silk screen printing mesh offers significant advantages over the tradinional mofofilament polyester mesh.
Reking silk screen printing mesh be setting within 180-200 centigrate,we can control our temperature in filexibility. if you have any problem,you can contact us freely.the satable of the mesh depends on the temperature when setting up.
How To Select The Suitable polyester monofilament printing mesh?
| USAGE | MESH COUNT | USAGE | MESH COUNT |
| Graphics printing mesh | |||
| Line artwork | 230-305 | Halftone and fine lines | 305-420 |
| Halftones screens up to 70 lines/in | 305-380 | Opaque areas | 255-305 |
| Halftones screens from 70-133lines/in | 380-420 | ||
| Garment printing | |||
| Glitter | 25-60 | Flock adhesive | 45-125 |
| Pigment ink printing, areasnes | 110-175 | Puff-up colors | 55-125 |
| Overpritnig | 80-110 | Plasticol transfer | 125-305 |
| Universal fabric | 125 | Plasticol direct | 125-305 |
| Pigment inks,half-tone | 155-255 | Sublimation transfer | 195-305 |
| Textile,flat films | 300-420 | ||
| Heavy decor fabric(terry cloth,denim | 110-255 | ||
Characteristic of the polyester monofilament printing mesh:
1/ High tension and low-Elongation;
2/ Less tension loss after high strength;
3/ Standard size and filtration value;
4/ (+-)2-6micorn thickness tollerance;
5/ Faster printing speed and finer printing effect
polyester monofilament printin mesh with high-precision high-quality monofilament polyester mesh, with high precision, stable tension and other characteristics, and excellent dimensional stability, making printing will not produce deviation, and to ensure ultra-high strength and low elongation Degree, can greatly extend the life of the screen, another with heat, high temperature, wear-resistant and so on.
Specification of the polyester monofilament printing mesh:
| Mesh count diameter (mesh/cm um) |
mesh count (mesh/inch) |
Weave | Aperture (um) |
Thread diameter | Opening | Thickness | Theoretic ink |
Weight | Tension (N/CM) |
|
| 165T-31(S) | 420 | 1:1 | 23 | 31 | 15 | 48 | 7 | 36 | 25-36 | |
| 150T-34(T) | 380 | 1:1 | 23 | 34 | 13 | 55 | 6.5 | 42 | 30-31 | |
| 150T-31(S) | 380 | 1:1 | 32 | 31 | 23 | 49 | 11 | 32 | 24-25 | |
| 140T-34(T) | 355 | 1:1 | 31 | 34 | 20 | 56 | 12 | 41 | 27-28 | |
| 140T-31(S) | 355 | 1:1 | 36 | 31 | 26 | 53 | 10 | 39 | 26-28 | |
| 120T-40(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 13 | 44 | 33-35 | |
| 120T-34(T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 16 | 35 | 25-26 | |
| 120T-31(S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 17 | 26 | 20-23 | |
| 110T-40(HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 17 | 40 | 30-32 |

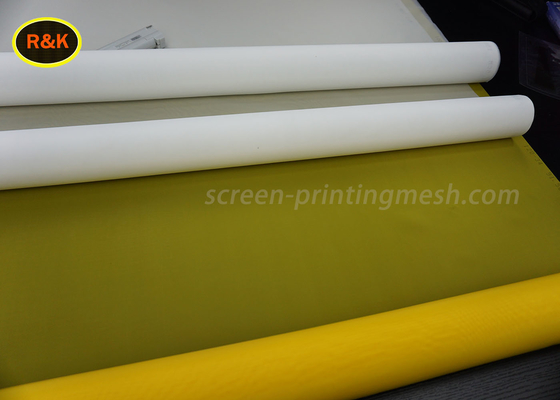

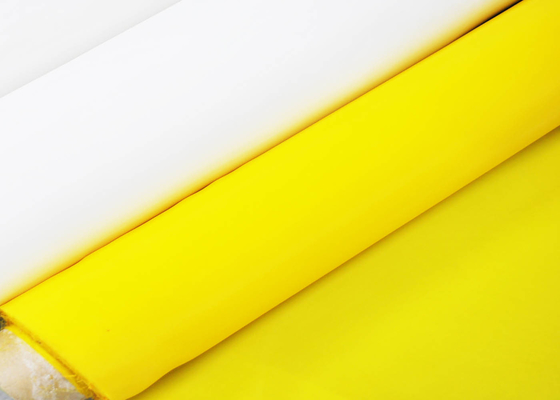

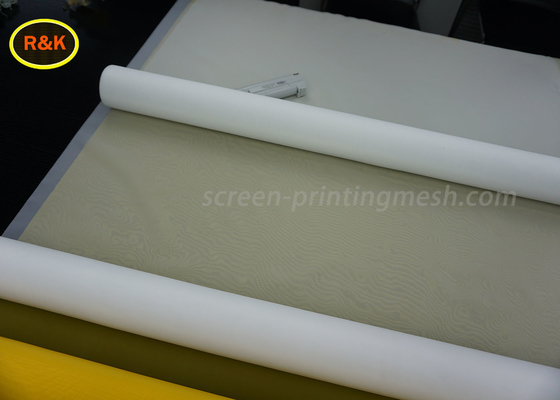

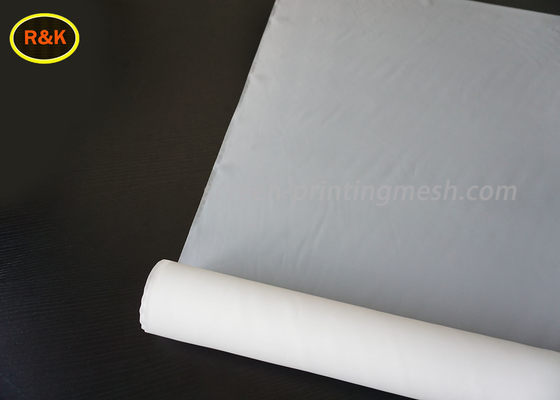

Photo of The Silk Screen Printing Mesh:
Packing of the polyester monofilament printing mesh:
WARPPING WEAVING:
Manufacturing Process:
Yarn→Warping→Drawing In Heddle→Drawing In Reed→Weaving→Insitial Survey→Washing→Heat Setting Treatment→Product Inspection→Product.
Application of the silk screen printing mesh:
Widely used in screen printing industry, filtering, textile printing and dyeing, printing plate, electronic printing, ceramics, glass printing and other industries.
Silk screen printing mesh can transfer thick ink deposits and great speical effect to make it to be optimal process to print high quality commercial farments,T-shirt etc.
Silk screen printing mesh can print the challenging intense color and ornate decor on glass and PCB etc.
Workshop of the silk screen printing mesh:
Warpping of the polyester wire:
