|Material:||Stainless Steel Wire||Application:||Woven Wire Mesh|
|Weave Style:||Plain Weave||Technique:||Perforated|
|Wire Diameter:||According To Your Requirement||Type:||Weave Wire Mesh|
perforated chain mesh conveyor belt,
carbon steel chain mesh conveyor belt,
spiral wire chain mesh conveyor belt
Food grade 304 stainless steel Chain Mesh Conveyor Belt spiral wire mesh conveyor belt

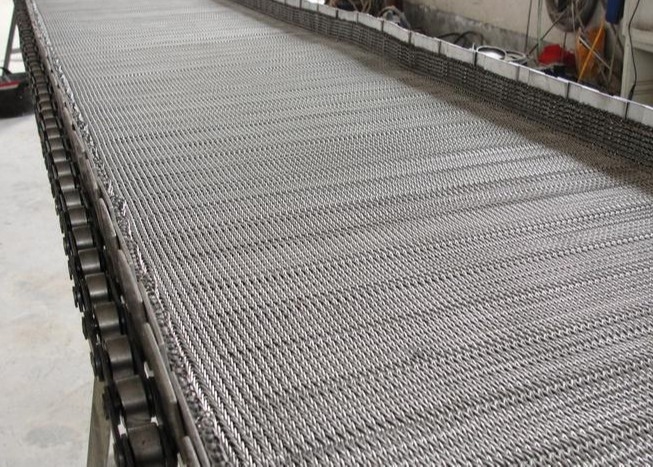

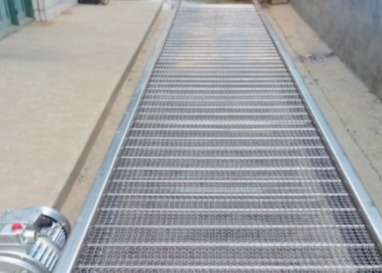

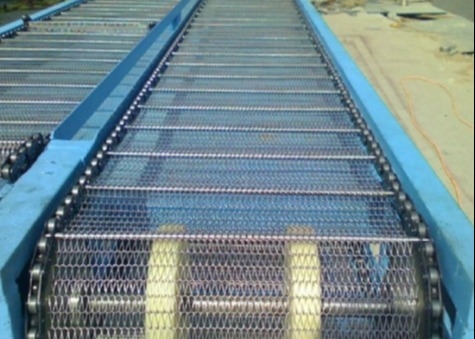

Chain Mesh Conveyor Belt Description :
Chain link conveyor belting consists of interwoven successive spiral wire, which looks like chain link fencing. This universal conveyor belt is the simplest wire belt but functional and economical in conveying light-duty applications. Owing to its large open area, chain link belt makes itself an ideal choice for drying, cooling and heating where energy efficiency is the most important.
Chain Mesh Conveyor Belt List
|Material||carbon steel, SUS 201 304 316|
|Wire diameter||1 to 3mm|
|Rod diameter||4 to 12 mm|
|Spiral wire pitch||3 to 20 mm|
|Chain pitch||19.05mm 25.4mm 31.75mm 38.1mm 50.8mm 76.2mm or customized|
|Width||0.2m to 4m|
|Rod pitch||5 to 30 mm|
Chain Mesh Conveyor Belt Categories:
1. Fast frozen machine,baking machine, plane conveyor, screw conveyor.
2. Cleaning,sterilization,drying ,cooking,cooling and so on for food machine.
3. Losing bottle annealing,roast flower etc for glass machine .
4. Eachi kinds of pipeline transport.
5. Metal process:powder metallurgy, heat treatment ,hardening, sintering, brazing, roasting, brightening, blacking, bearing, carburizing high-temperature.
6. Washing machine,winding machine,drying machine, etc.
High Carbon Steel, Galvanized Steel, 304 Stainless Steel, 314 Stainless Steel, 316 Stainless Steel, 316L, 317 Stainless Steel, 330 Stainless Steel, 430 Stainless Steel, 3519cb, 8020cb, Inconel 600, Inconel 601, Inconel 625, Manganese, 3% Chrome (specialty metals also available upon request.
