Product Details:
Payment & Shipping Terms:
|
| Product Name: | 304 316 310s Stainless Steel Chain Link Conveyor Belt For Fruit Drying | Keyword: | Chain Link Conveyor Belt |
|---|---|---|---|
| Material: | 304 316 310s | Main Feature: | Food Grade Material |
| Application: | Fruit Drying | Spiral Pitch: | 2.5-50mm |
| Rod Pitch: | 7-60mm | Wire Diameter: | 0.8-4mm |
| High Light: | fruit drying chain conveyor belt,310s stainless steel chain conveyor belt,310s stainless steel mesh conveyor belt |
||

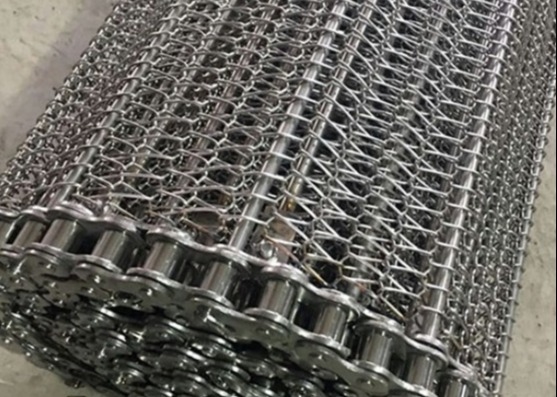

304 316 310s Stainless Steel Chain Link Conveyor Belt For Fruit Drying
Chain Link Conveyor Belt Specification
| Keywords | stainless steel chain link conveyor belt |
| Material | 304 316 310s stainless steel |
| Size |
Spiral diameter: 1mm-8mm Picth diameter: 1-8mm Rod diameter: 5-14mm (can do soild rod or hollow rod) Width: 30cm-500cm Length:at least 3 meters |
| Package | plastic film and plywood box |
| After sales service | life time online video support |
Chain Link Conveyor Belt Advantages
1.High open structure - high proportion of open area up to 86% makes the belt efficient in cooling, drying, heating applications.
2.Positive drive without slipping - Rod network belts are normally driven by sprockets positively without need for complicated tracking mechanisms.
3.Stable conveying - With smallest diameter end rolls and drive rolls, the rod network belts provide stable conveying of delicate products
4.A wide range of sizes - Various sizes with different openness to suit different applications providing superb strength and min contact surface between the products and the belts. Generally, the more the joints cross the width, the stronger the belt.
Chain Link Conveyor Belt Usage
Large open area : It makes the belts can be used into cooling and drying system due to good ventilation .
Food grade material : It makes the belts can be used into food industry due to its material is food grade 304 or 316 or 316l stainless steel .
Flat surafce and chain edge : It makes the belts goes smooth and can afford heavy goods
Chain Link Conveyor Belt Workshop
