| Product Name: | High Temperature Easy Clean Nylon Filter Mesh Roll For Nut Milk Filtering | Width: | 1-3.65m |
|---|---|---|---|
| Hole Shape: | Square | Usage: | Filtration |
| Weave Style: | Plain Woven Nylon Mesh | Technique: | Woven |
| Feature: | High Temperature Resistance | Mesh Count: | 5-800 Mesh |
| High Light: | Milk Filtering Nylon Filter Mesh,High Temperature Nylon Filter Mesh,Filter Mesh Roll Nut Filtering |
||

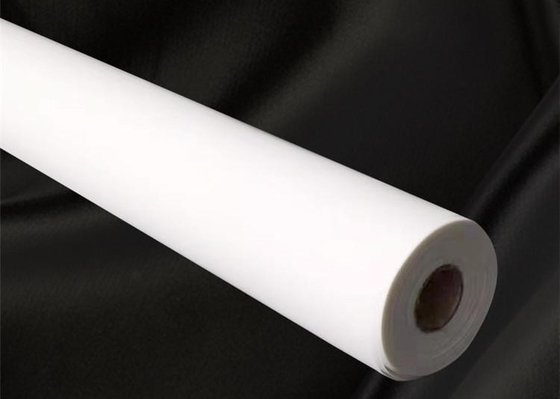

High Temperature Easy Clean Nylon Filter Mesh Roll For Nut Milk Filtering
Product Introduction
Micron nylon filter mesh is made of PA6 or PA66 monofilament yarn in plain weave or twill weave. It has smooth surface, uniform structure and ranges of mesh counts for industrial, medical and other filtration applications.
We can supply 0.05m to 3.65m wide, 1500m long jointless nylon filter mesh (nylon filter cloth), to meet the industry-specific applications. With more than 30 years experience of filter mesh manufacturing, We can make more than 10 types of processed nylon mesh products, such as nylon mesh filter discs, nylon mesh filter sheets, filter tubes, nylon mesh filter bags, nut & juice filter bags, etc. Customized products are accepted.
Our nylon filter mesh has passed food grade test and can be used for the collection of algae & cels, particle analysis & filtration, paint monitoring, medical filtration(blood filtration), etc.
Product Specification
| Fabric number |
Mest count |
Thread diameter |
Mesh opening |
Fabric thickness |
Weight | |
| NO. | cm mesh/inch | micron | micron | micron | g/m2 | |
| JPP5 | 5 | 12 | 500 | 1500 | 850 | 271 |
| JPP6 | 6 | 16 | 400 | 1267 | 780 | 208 |
| JMG7 | 7 | 18 | 350 | 1079 | 675 | 186 |
| JPP8 | 8 | 20 | 350 | 900 | 685 | 212 |
| JPP9 | 9 | 24 | 250 | 860 | 455 | 145 |
| JPP10 | 10 | 25 | 300 | 700 | 576 | 195 |
| JPP12 | 12 | 30 | 250 | 583 | 470 | 162 |
| JPP12 | 12 | 35 | 300 | 533 | 585 | 234 |
| JPP14 | 14 | 40 | 300 | 414 | 595 | 273 |
| JPP16 | 16 | 40 | 200 | 425 | 370 | 139 |
| JPP16 | 16 | 50 | 250 | 375 | 485 | 217 |
| JPP20 | 20 | 50 | 150 | 350 | 375 | 98 |
| JPP20 | 20 | 50 | 200 | 300 | 385 | 173 |
| JPP24 | 24 | 60 | 150 | 267 | 285 | 117 |
| JPP28 | 28 | 70 | 120 | 237 | 215 | 87 |
| JPP36 | 36 | 90 | 100 | 178 | 178 | 78 |
| JPP40 | 40 | 100 | 100 | 150 | 190 | 87 |
| JPP43 | 43 | 110 | 80 | 152 | 135 | 60 |
| JPP48 | 48 | 120 | 80 | 130 | 145 | 62 |
| JPP56 | 56 | 140 | 60 | 120 | 85 | 44 |
| JPP59 | 59 | 150 | 60 | 110 | 98 | 46 |
| JPP64 | 64 | 160 | 60 | 100 | 105 | 50 |
| JPP72 | 72 | 180 | 50 | 90 | 82 | 39 |
| JPP80 | 80 | 200 | 50 | 75 | 90 | 43 |
| JPP100 | 100 | 250 | 40 | 60 | 65 | 35 |
| JPP120 | 120 | 305 | 40 | 43 | 70 | 42 |
| JPP130 | 130 | 330 | 40 | 37 | 75 | 45 |
| JPP200 | 200 | 500 | 39 | 25 | 66 | 76 |
Product Features
1. Non-toxic,odourless,tasteless,high strength,high elongation,good elasticity.
2. With high toughness, good elasticity, resistance to weak acid, oil resistance, alkali resistance, wear resistance, heat resistance and other characteristics, it also has good insulation, low lubricating coefficient characteristics. Its application range is very wide.
3. High material quality, corrosion resistance, wear resistance, long use life, smooth surface high strength, strong elastic, ink permeability and good resilience.
4. Excellent alkaline resistance.
5. High precision,unifirm thread diameter
6. It has a working temperature of up to 120 degrees ℃
7. Stable chemical and physical properties
8. Available in disc, tube, bag and special shapes
9. Compliance with food grade
Product Application
1. Air filter mesh in air conditioner filter
2. Liquid filter mesh for milk, juice, cheese, soya bean ect.
3. Flour, solid mesh for milling
4. We can deep produce it into filter bags, filter disc and filter strainers.
Product Characteristic
Excellent abrasion resistance.
Excellent cake release.
Fine particle filtration.
Ideal for low temperature.
High tensile strength.
Good elasticity is ideal for continuous flexing purposes.
Suitable for caustic alkali atmosphere like dyestuffs.
Working temperature: 248 °F (constant); 275 °F (surge).
Product Features
| It has high tension threshold and breaking point |
| It has high modulus, low elongation monofilament nylon yarn |
| It has resist to chemicals, abrasion, heat and moisture |
| Minimal tension loss during stretching process |
| Improved registration due to stable fabric tension |
| Good antistatic |
| No surface treatment |
