Product Details:
Payment & Shipping Terms:
|
| Product Name: | Food Grade Plain Weave 150 Micron Nylon Mesh Filter | Width: | 1-3.65m |
|---|---|---|---|
| Hole Shape: | Square | Usage: | Filtration |
| Weave Style: | Plain Woven Nylon Mesh | Technique: | Woven |
| Feature: | High Temperature Resistance | Mesh Count: | 5-800 Mesh |
| High Light: | 150Micron Nylon Mesh Filter,150 Micron Nylon Mesh high Filtration,nylon mesh fabric High Filtration |
||

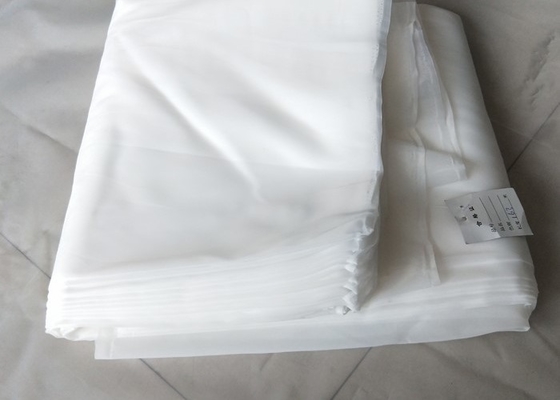

Food Grade Plain Weave 150 Micron Nylon Mesh Filter
Product Introduction
Reking supply customers the best monofilament nylon mesh ,our nylon mesh poses High toughness, good elasticity, corrosion resistance, oil resistance, water resistance, wear resistance, high temperature resistance, weather resistance,good air permeability and so on features
Nylon mesh is widly used in filtering(included food ,like coffee ) ,but nylon mesh also can be used in milling flour mesh,dustproof screen mesh,window screen,air purifier, but black nylon mesh mainly used in dustproof for electronic products.Large opening mesh can be used for fishing ,also can be made bags for filtering
Product Specification
| Fabric number |
Mest count |
Thread diameter |
Mesh opening |
Fabric thickness |
Weight | |
| NO. | cm mesh/inch | micron | micron | micron | g/m2 | |
| JPP5 | 5 | 12 | 500 | 1500 | 850 | 271 |
| JPP6 | 6 | 16 | 400 | 1267 | 780 | 208 |
| JMG7 | 7 | 18 | 350 | 1079 | 675 | 186 |
| JPP8 | 8 | 20 | 350 | 900 | 685 | 212 |
| JPP9 | 9 | 24 | 250 | 860 | 455 | 145 |
| JPP10 | 10 | 25 | 300 | 700 | 576 | 195 |
| JPP12 | 12 | 30 | 250 | 583 | 470 | 162 |
| JPP12 | 12 | 35 | 300 | 533 | 585 | 234 |
| JPP14 | 14 | 40 | 300 | 414 | 595 | 273 |
| JPP16 | 16 | 40 | 200 | 425 | 370 | 139 |
| JPP16 | 16 | 50 | 250 | 375 | 485 | 217 |
| JPP20 | 20 | 50 | 150 | 350 | 375 | 98 |
| JPP20 | 20 | 50 | 200 | 300 | 385 | 173 |
| JPP24 | 24 | 60 | 150 | 267 | 285 | 117 |
| JPP28 | 28 | 70 | 120 | 237 | 215 | 87 |
| JPP36 | 36 | 90 | 100 | 178 | 178 | 78 |
| JPP40 | 40 | 100 | 100 | 150 | 190 | 87 |
| JPP43 | 43 | 110 | 80 | 152 | 135 | 60 |
| JPP48 | 48 | 120 | 80 | 130 | 145 | 62 |
| JPP56 | 56 | 140 | 60 | 120 | 85 | 44 |
| JPP59 | 59 | 150 | 60 | 110 | 98 | 46 |
| JPP64 | 64 | 160 | 60 | 100 | 105 | 50 |
| JPP72 | 72 | 180 | 50 | 90 | 82 | 39 |
| JPP80 | 80 | 200 | 50 | 75 | 90 | 43 |
| JPP100 | 100 | 250 | 40 | 60 | 65 | 35 |
| JPP120 | 120 | 305 | 40 | 43 | 70 | 42 |
| JPP130 | 130 | 330 | 40 | 37 | 75 | 45 |
| JPP200 | 200 | 500 | 39 | 25 | 66 | 76 |
Product Features
1.High precision,unifirm thread diameter
2.High Elongation
3.Excellent alkaline resistance
4.It has a working temperature of up to 120 degrees ℃
6.Stable chemical and physical properties
Product Application
Liquid filtration, powder filters, oil, mining, pharmaceutical, chemical, paint, ink, oil products filtration, filtration alcohol, paint filters, filter dyes, resins, monosodium glutamate, fishery, filter impurities, tea , wine, milk, yogurt, soy milk, edible oil, milk, coffee, MSG, fisheries, aquaculture, filter impurities, food and industrial filtration, wide range of applications.
Product Characteristic
Excellent abrasion resistance.
Excellent cake release.
Fine particle filtration.
Ideal for low temperature.
High tensile strength.
Good elasticity is ideal for continuous flexing purposes.
Suitable for caustic alkali atmosphere like dyestuffs.
Working temperature: 248 °F (constant); 275 °F (surge).
Product Features
| It has high tension threshold and breaking point |
| It has high modulus, low elongation monofilament nylon yarn |
| It has resist to chemicals, abrasion, heat and moisture |
| Minimal tension loss during stretching process |
| Improved registration due to stable fabric tension |
| Good antistatic |
| No surface treatment |
