Product Description:

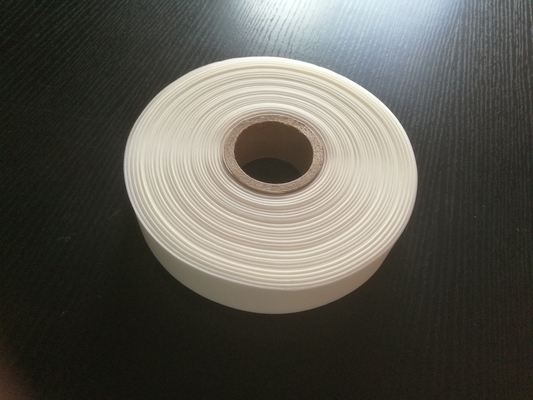

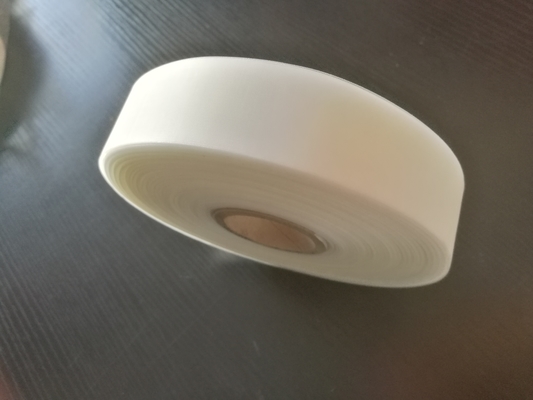

Product Name: Nylon Filter Mesh
Material: 100% Polyamide (Nylon) Monofilament
Technical Specifications:
Mesh Count: 13 - 300 mesh/inch
Weight Range: 50 - 150 g/m²
Thickness Range: 80 - 1000 μm
Standard Widths: 1m, 1.27m, 1.35m, 1.5m, 1.58m, 1.65m, 1.86m, 2m (custom widths available)
Roll Length: 50m or 100m (custom lengths available)
Yarn Type: Monofilament
Color Options: Standard white/black (custom colors on request)
Features:
Precision filtration performance
Exceptional abrasion & corrosion resistance
Food-grade compliant (non-toxic, odorless, tasteless)
High tensile strength with superior elongation
Excellent elasticity for repetitive stress applications
Chemical stability across industrial environments
Technical Parameters:
| Name |
Parameter |
| Manufacture |
Yes, we are factory |
| Weave Style |
Plain Weave,Twill Weave |
| Hole Size |
5 Micron - 1500 Micron |
| Mesh Count |
13 Mesh - 300 Mesh |
| Monofilament |
Yes |
| Wire Diameter |
40 Micron - 500 Micron |
| Length |
50 Meters, 100 Meters or as your requirements |
| Application |
Milk Filtration, Juice Filtration, Beer Filtration |
| Sample |
1 Square Meter Sample is Free |
| Color |
White Color, Black Color |
| Name |
Nylon Mesh, Nylon Mesh, Nylon Micron Mesh, Nylon Filter Mesh |
Applications:
Micron-scale filtration systems
JPP sieving processes
Screen filter assemblies
Industrial liquid/solid separation
Food/pharmaceutical processing
Chemical filtration solutions
Customization:
Nylon Mesh Filter
Brand Name: Hebei Reking
Model Number: Reking-001
Place of Origin: Hebei shijiazhuang
Certification: ISO9001
Minimum Order Quantity: 1 pics
Price: negotiable
Packaging Details: Wood
Delivery Time: Based on order quantity
Payment Terms: 7-15 days
Supply Ability: 10000 pics
Width: 1m, 1.27m, 1.35m, 1.5m, 1.65m, 2m
Open Area (%): 27%-67%
Thickness: 80 Um -1000 Um
Mesh Count (cm): 5T-120T
Manufacture: Yes, we Are Factory
Packing and Shipping:
The packaging and shipping of Nylon Filter Mesh:
The Nylon Filter Mesh will be carefully packaged to ensure safe delivery. The package will include the Nylon Filter Mesh, a plastic bag for protection, and a cardboard box to ensure the mesh is secure during shipping.
The Nylon Filter Mesh will be shipped by reliable carriers with tracking numbers so customers can be sure their product is safe and on its way.
