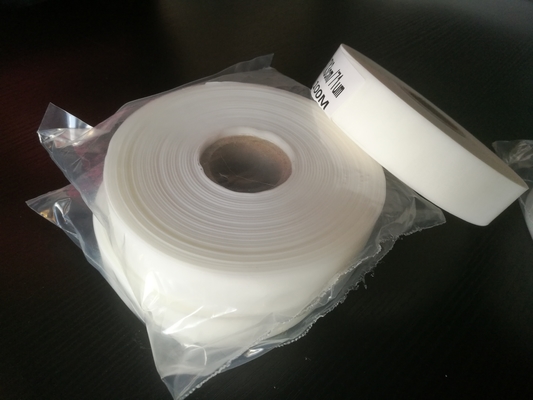

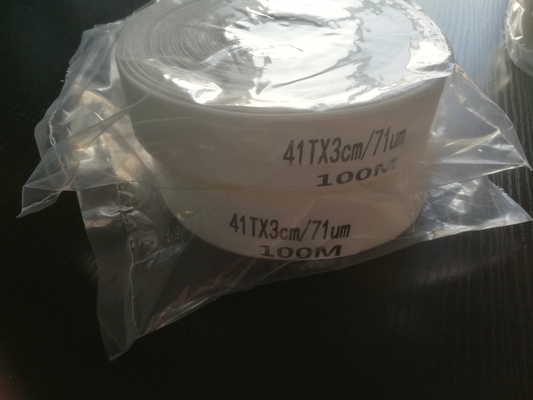

Food Grade Cuttable Nylon Filter Mesh 13-300 Mesh 5-1500 Micron For Filtration
Monofilament synthetic fibers can be made into industrial textiles with a narrow pore size distribution through a precision weaving process. This process can produce fine plain weave fabrics with pore sizes as small as 5 microns, with yarn and fabric thickness tolerances controlled to ±10%.
The construction of plastic filter fabrics is mainly determined by three factors: yarn type, yarn specification (fineness) and fabric density (yarn count). Monofilament yarns are composed of a single continuous filament and can form a relatively smooth surface. In a plain weave structure, the straight-through pores formed by the monofilament fabric minimize fluid resistance and particle accumulation on the surface.
| Product name |
Food Grade Cuttable Nylon Filter Mesh 13-300 Mesh 5-1500 Micron For Filtration |
| Material |
100% nylon monofilament |
| Color |
white, black or customized |
| Weave type |
plain woven,twill weave |
| Common Width |
100cm, 127cm, 150cm, 160cm, 175cm, 183cm, 365cm or customized |
| Roll length |
30-100m or customized |
| Mesh Count/cm |
4-240T |
| Mesh Count/inch |
10-600 mesh/inch |
| Thread diameter |
35-550 micron |
| Mesh Opening |
5-2000 micron |
| Thickness |
60-1100micron |
| package |
roll package |
| Food grade |
Yes |
Product Advantage
Liquid filtration, powder filters, oil, mining, pharmaceutical, chemical, paint, ink, oil products filtration, filtration alcohol, paint filters, filter dyes, resins, monosodium glutamate, fishery, filter impurities, tea , wine, milk, yogurt, soy milk, edible oil, milk, coffee, MSG, fisheries, aquaculture, filter impurities, food and industrial filtration, wide range of applications.
Product Specification
The specifications of the woven mesh are mainly the mesh number, the wire diameter, the aperture, the width, etc. The nylon mesh has various specifications and different uses, so the specifications are not the same. Generally, the mesh for screening and screening has 60 mesh. - 420 mesh, there is a corresponding ratio parameter between the wire diameter and the mesh. The smaller the aperture, the smaller the wire diameter; the mesh used for fishing is larger.
Fabric
number |
Mest
count |
Thread
diameter |
Mesh
opening |
Fabric
thickness |
Weight |
| NO. |
cm mesh/inch |
micron |
micron |
micron |
g/m2 |
| JPP5 |
5 |
12 |
500 |
1500 |
850 |
271 |
| JPP6 |
6 |
16 |
400 |
1267 |
780 |
208 |
| JMG7 |
7 |
18 |
350 |
1079 |
675 |
186 |
| JPP8 |
8 |
20 |
350 |
900 |
685 |
212 |
| JPP9 |
9 |
24 |
250 |
860 |
455 |
145 |
| JPP10 |
10 |
25 |
300 |
700 |
576 |
195 |
| JPP12 |
12 |
30 |
250 |
583 |
470 |
162 |
| JPP12 |
12 |
35 |
300 |
533 |
585 |
234 |
| JPP14 |
14 |
40 |
300 |
414 |
595 |
273 |
| JPP16 |
16 |
40 |
200 |
425 |
370 |
139 |
| JPP16 |
16 |
50 |
250 |
375 |
485 |
217 |
| JPP20 |
20 |
50 |
150 |
350 |
375 |
98 |
| JPP20 |
20 |
50 |
200 |
300 |
385 |
173 |
| JPP24 |
24 |
60 |
150 |
267 |
285 |
117 |
| JPP28 |
28 |
70 |
120 |
237 |
215 |
87 |
| JPP30 |
30 |
76 |
120 |
213 |
225 |
94 |
| JPP32 |
32 |
80 |
100 |
213 |
165 |
69 |
| JPP36 |
36 |
90 |
100 |
178 |
178 |
78 |
| JPP40 |
40 |
100 |
100 |
150 |
190 |
87 |
| JPP43 |
43 |
110 |
80 |
152 |
135 |
60 |
| JPP56 |
56 |
140 |
60 |
120 |
85 |
44 |
| JPP59 |
59 |
150 |
60 |
110 |
98 |
46 |
| JPP64 |
64 |
160 |
60 |
100 |
105 |
50 |
| JPP72 |
72 |
180 |
50 |
90 |
82 |
39 |
| JPP80 |
80 |
200 |
50 |
75 |
90 |
43 |
| JPP100 |
100 |
250 |
40 |
60 |
65 |
35 |
| JPP120 |
120 |
305 |
40 |
43 |
70 |
42 |
| JPP130 |
130 |
330 |
40 |
37 |
75 |
45 |
| JPP200 |
200 |
500 |
39 |
25 |
66 |
76 |
Product Characteristic
Exceptional Abrasion Resistance: Withstands wear in demanding industrial environments.
Superior Cake Release: Promotes efficient separation of filtered solids.
Fine Particle Filtration Capability: Effective down to low micron levels.
Excellent Low-Temperature Performance: Maintains properties in cold operating conditions.
High Tensile Strength: Resists tearing and deformation under load.
Good Elasticity: Ideal for applications involving continuous flexing.
Resistant to Caustic Alkali Environments: Suitable for harsh atmospheres, such as those found in dyestuff processing.
Operating Temperature Range:
Constant Service: Up to 248 °F (120 °C)
Peak/Surge Service: Up to 275 °F (135 °C)
Product Features
| It has high tension threshold and breaking point |
| It has high modulus, low elongation monofilament nylon yarn |
| It has resist to chemicals, abrasion, heat and moisture |
| Minimal tension loss during stretching process |
| Improved registration due to stable fabric tension |
| Good antistatic |
| No surface treatment |
