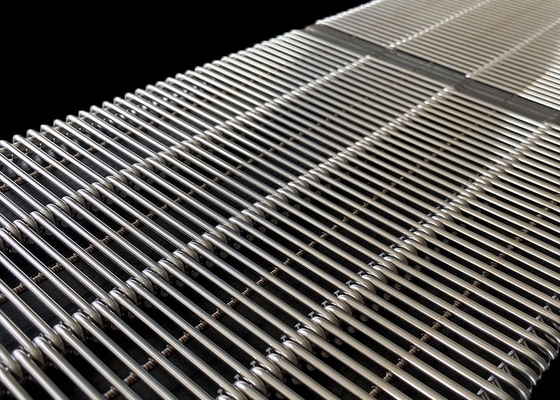

Stainless Steel Eye Link Wire Conveyor Belt For Food Transportation
Induction of Eye Link Wire Mesh Belt
Eye link Conveyor belts are composed from eye links put on cross rods,it is impossible for a product to form a deposit in"hollow spaces"in the belt,which is difficult to reach.The weight of the belt can be kept relatively low.Process fluids and gasses can go easily through the belt and the belt is easy to clean,repair and positively driven by means of sprockets or driving drum.It is possible to use relatively small diameters.This all adds to a perfect belt run without steering problems.
Eye link wire mesh belt is constructed by wire rings formed into 'eye' shape, which is fixed by the underside welded wire, sleeve or the spring with cross rods in it. Edge can be bar links or side chains. It is suitable to convey heavy loads, unstable or fragile products which need good support from the metal conveyor belt.
Datas Of Eye Link Wire Mesh Belt
| Product Name |
304 Stainless Steel Eye Link Wire Mesh Belt For Tunnel Freezer Oven |
| Certificate |
SGS |
| Technique |
Eye Link Wire Mesh Belt |
| Material |
201,304,316L,310S,410 etc |
| Specification |
· Chain pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm.
· Rod diameter: 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 12 mm.
· Wire diameter: 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm.
· Spiral pitch: 2.4 mm to 100 mm.
· Rod pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm.
· Belt width: 200 mm to 6,000 mm.
|
| Application |
Drying,Cooling,Freezing,Pasteurizing,Blanching,Baking and Washing machine |
| Size |
Max width can reach to 4000mm , belt length can be customized as your machine. |
| Other services |
Special requirements can be customized |
Features of Eye Link Wire Mesh Belt
1. Flat surface, easy to install and clean.
2. Positive drive, high load capacity, modular design
3. Strong corrosion resistance, tensile strength.
4. Good acid resistance, alkali resistance and low / high temperature resistance.
5. Wire diameter can be customized.
6. Reinforcement bar links are made for heavy load and high speed.
Usage Of Eye Link Wire Mesh Belt
Typical applications of eye link conveyor belt are baking , Cooking , Cooling , Heating , Drying , Freezing , Blanching , Washing , Frying , Sorting , Grading , Loading , Elevating .
Drawing Of Eye Link Wire Mesh Belt
Please show me these datas and i can give you offer according to your size.
Package Of Eye Link Conveyor Belt
Workshop of Eye Link Conveyor Belt
