22504 Polyester Dryer Screen Filter Fabric for Pulp, Paper, and Board Machine Drying Systems

Large Image : 22504 Polyester Dryer Screen Filter Fabric for Pulp, Paper, and Board Machine Drying Systems

Product Details:

Place of Origin:	China
Brand Name:	R&K
Certification:	SGS,FDA,CE
Model Number:	WP-01

Payment & Shipping Terms:

Minimum Order Quantity:	10m
Price:	Negotiable
Packaging Details:	plastic bags and carton or wooden case
Delivery Time:	5-8 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 meters per day

Contact Now

Detailed Product Description

Material:	100% Polyester	Color:	White,red,blue
Application:	Pulp, Paper, And Board	Type:	Mesh Fabric
Usage:	Paper Factory,Paper Mill	Width:	0.5 -8 M (customized)
Item:	22504	Length:	1-100m
Highlight:	Paper Polyester Dryer Screen , Board Machine Polyester Dryer Screen , 22504 Polyester Dryer Screen

22504 Polyester Dryer Screen Filter Fabric for Pulp, Paper, and Board Machine Drying Systems

Introduction of Polyester Dryer Screen

The most common dryer fabric is made of polyester, which can be divided into round polyester dryer fabric and flat polyester dryer fabric according to the different weaving and manufacturing processes. In terms of use effect, flat yarn is better than round yarn. On the one hand, the flat yarn structure can provide better paper contact surface and reduce dryer fabric marks; on the other hand, due to its geometric structure difference, flat yarn performs better in controlling dirt and adhesive residue.

Features of Polyester Dryer Screen

Keywords	Polyester Dryer Screen
Material	100% polyester
Size	we can do the size according to the clients requirement
Package	plastic film and plywood box
Delivery time	10 days after receiving your payment
After sales service	life time online video support

Applications of Polyester Dryer Screen

Polyester woven dryer fabric is widely used in papermaking, mining, food, pharmaceutical, printing and dyeing, rubber and other industries. It can also be used as a conveyor belt and laminating machine supporting belt. It is mainly used in the drying section to tightly wrap or carry paper, especially to ensure the transfer of wet paper webs; the flat and fine mesh design gives the paper good surface smoothness; the appropriate air permeability design matches the water evaporation requirements of paper webs at different positions; and it can also meet the operation requirements of the drying section under harsh conditions such as high temperature, high humidity, and extreme acidity and alkalinity.

Specifications of Polyester Dryer Screen

Weaving series&Types	型号 Type	Wire Diameter mm		Density /cm		N/cm Tensile Strength			Weight Kg/m2	Thickness Mm	Air permeability	CFM 200Pa
Weaving series&Types	型号 Type	Warp	Weft	Warp	Weft	Surface	Joint	Screw ring interface	Weight Kg/m2	Thickness Mm	Air permeability	CFM 200Pa
3-shed series	22503	0.50	0.50	24	12	2000	1400	900	1.06	2.0	(m3/m2/h) 8000	500
3-shed series	24503	0.50	0.50	25	12	2000	1400	900	1.10	2.0	7000	438
4-shed series	22504	0.50	0.50	24	12	2000	1400	900	1.26	2.1	12000	750
4-shed series	24504	0.50	0.50	26	12	2100	1500	950	1.3	2.1	11000	680
4-shed series	4106	0.50	0.50	23	12.6	2200	1500	900	1.2	1.75	6800	425
Round wire series	4106-1	0.5	0.3	22.8		2200	1500	900	1.3	1.8	8000	500
Round wire series	4106-1	0.5	0.7	22.8		2200	1500	900	1.3	1.8	8000	500
Flat wire series	4106-2	0.35*0.68	0.50	19.6	15.7	2200	1500	900	1.10	1.62	5500	345
	15505	0.25*0.40	0.50	17	13.5	2000	1500	900	0.75	0.83	6500	406
	20654	0.33*0.52	0.65	22	7.5	2000	1400	800	1.02	1.35	10000	625
	18688	0.30*0.58	0.35/0.68	20	18.5	2000	1400	800	1.2	1.40	1600	100
	16904	0.29*1.06	0.90/0.98	15.2	8.6	2600	1800	1500	1.33	1.54	1920	120

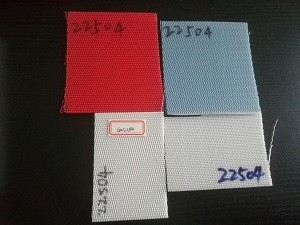

Photo of Polyester Dryer Screen

22504 Polyester Dryer Screen Filter Fabric for Pulp, Paper, and Board Machine Drying Systems 0
