| Material: | 100%polyester | Product Name: | Polyester Press Filter Mesh Screen |
|---|---|---|---|
| Color: | White And Blue | Advantages: | Acid And Alkali Resisting |
| Connection: | Steel Connection | Packing: | Woven Bag And Wooden Carton |
| Size: | Customized Length And Width | Usage: | Press Filter For Liquid And Soild |
| High Light: | Paper Making Industry Filter Mesh Belt,Paper Pulp Filter Mesh Belt,Polyester Spiral Dryer Screen Belt |
||

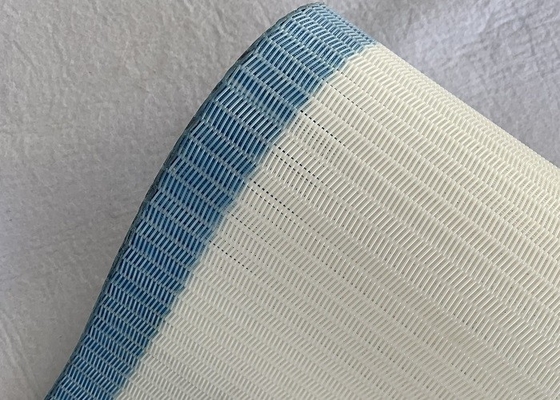

Polyester Spiral Dryer Screen Press Filter Mesh Belt Used For Paper Pulp Paper Making Industry
Brief Introduction:
Polyester spiral dryer screen mesh screen belt with high abrasion resistance, high drainage capacity and high mechanical anti -deformation and fold formation capabilities are suitable for abrasion mud. Due to the low organic matter in the sludge and easy to suppress, spiral sieves can usually be used. The indisputable advantage of using the spiral network is that the solid spiral connector will not highlight the level of the network, so it usually has a longer service life than the stainless steel connector on the weaving network.
Connections:
The edges of the sieve are smoothed by thermal sealing, reinforced in a width of about 4 cm with a two-component flexible adhesive. The sieves are connected into an endless strip by a demountable stainless steel (AISI 316) clipper joint. Another option for connecting the sieve into an endless strip is a woven non-separable joint, which has a longer service life than the clip joint, but can only be used on machines that allow the installation of an endless belt.
Filter screens are used as endless strips connected by a detachable or non-separable joint.
The edges of the filter screens are melted and reinforced with mechanically resistant flexible two-component adhesive. Triangular reinforcement of the joint at the edges of the sieve increases the mechanical resistance of the joint.
Usage:
Pressing of urban sludge in wastewater treatment plants
Pressing services for pulp and sludge
Fruit pressing services for the production of musts and wine
Pressing in the food industry
Separation of minerals in the mining industry
Sludge pressing in agriculture
Industrial separation processes
Advantages:
Very good drainage ability
Easy to clean
Universal sieve type for most industrial applications
Very high abrasion resistance
Long service life
For very abrasive sludges
|
Type
|
Wire Diameter(mm) |
Density/cm |
Strength(N/cm) Tensile strength |
Weight kg/m2 |
Thickness mm |
Air Permeability m3/m2h |
|||
|
Warp |
Weft |
Warp |
Weft |
Surface |
Joint |
||||
| RK22903 | 0.50 | 0.90 | 23 | 5.5 | 1600 | 900 | 1.4 | 1.90 | 8480 |
| RK24908 | 0.50 | 0.90 | 24.8 | 7.1 | 1600 | 900 | 1.48 | 2.1 | 7360 |
| RK24808 | 0.50 | 0.80 | 24.8 | 8 | 1600 | 900 | 1.4 | 2.0 | 6880 |
| RK16903 | 0.70 | 0.90 | 16.3 | 5 | 1600 | 900 | 1.5 | 2.1 | 7520 |
| RK16903 Blue | 0.70 | 0.90 | 16.3 | 5.8/6 | 1600 | 900 | 1.7 | 2.1 | 5550/3980 |
| RK12904 | 0.90 | 0.90 | 12.3 | 9.5 | 1600 | 900 | 2.2 | 3.5 | 9600 |
