Product Details:
Payment & Shipping Terms:
|
| Material: | 100% Polyester | Color: | White Blue |
|---|---|---|---|
| Name: | Polyester Spiral Sludge Dewatering Conveyor Belt | Usage: | Juice, Coal Mine, Sludge Dewatering |
| Air Permeability: | 186-600CFM | Width: | 0.2-3.2m |
| Length: | 1-100meters | Type: | 0911 0709 |
| Advantage: | Long Service Time, Easy Clean | ||
| High Light: | sludge dehydration polyester mesh belt,customized polyester mesh belt,customized polyester sludge dewatering belt |
||

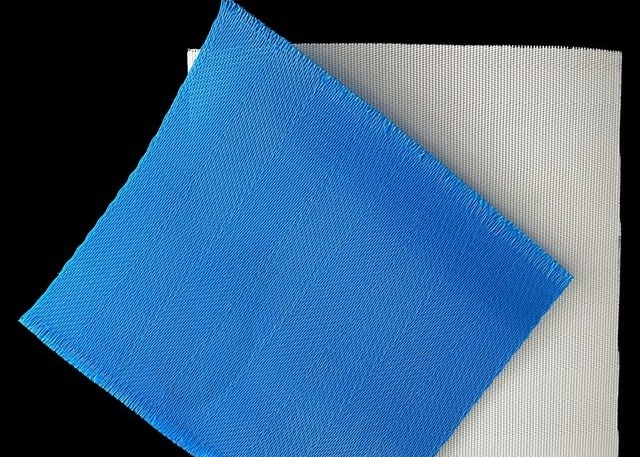

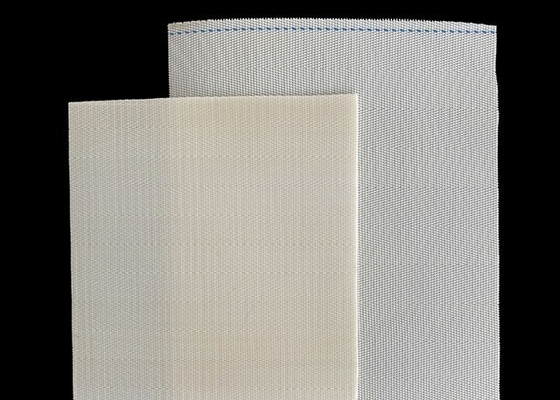

Blue And White Customized Polyester Sludge Dehydration Mesh Belt
Product Introduction:
Polyester sludge dehydration mesh belt
Dewatering process is the removal of water. This process is widely applied in different industries, most regularlly referred to construction and wastewater treatment plant when water is separated from solids through a variety of different pumping or filtering processes. During wastewater treatment, dewatering is the part of the process whereby sludges are reduced in volume and converted from a liquid to a solid product.
Sludge Dewatering Filter Belt Products are widely applied in urban sewage plants, Paper Mills, Printing and Dyeing plants, Chemical plants, Electroplating plants, Pharmaceutical plants, Food industry , Ceramic factories, Mining and other industries.
Specifcation sheet:
|
Type |
Spiral loop width mm |
Wire Diameter(mm) |
Tensile Strength (N/cm) |
Weight Kg/m2 |
Thickness mm |
Air Permeability M3/m2h |
||
|
Spiral wire |
Connection wire |
Filler wire |
||||||
| Small Loop 5080A1 | 5.2 | 0.50 | 0.80 | 0.60*3 | 1800 | 1.5 | 2.1 | 4480 |
| Middle Loop 6890A1 | 8 | 0.68 | 0.90 | 0.80*4 | 2000 | 2.0 | 2.45 | 6080 |
| Middle Loop 6890B1 | 7.15 | 0.68 | 0.90 | 0.90*3 | 2000 | 1.90 | 2.45 | 5760 |
| Middle Loop 6890B2 | 7.15 | 0.68 | 0.90 | 0.80*3 | 2000 | 1.85 | 2.45 | 7750 |
| Middle Loop 6890B3 | 7.15 | 0.68 | 0.90 | Flat 2.1*0.80 | 2000 | 1.80 | 2.45 | 9000 |
| Middle Loop 6890B4 | 7.15 | 0.68 | 0.90 | Flat 2.4*0.88 | 2000 | 1.85 | 2.45 | 8000 |
| Big Loop 9090A1 | 8 | 0.90 | 0.90 | 0.90*3 | 2300 | 2.30 | 3.03 | 7500 |
| Big Loop 90110A1 | 10 | 0.90 | 1.10 | 1.0*4 | 2000 | 2.40 | 3.15 | 6240 |
| Big Loop 10090A1 | 8 | 1.0 | 0.90 | 1.0*3 | 2000 | 2.50 | 3.60 | 5000 |
| Big Loop 120130A1 | 1.2 | 1.20 | 1.30 | 1.2*3 | 2600 | 2.85 | 4.30 | 7500 |
Applicant:
Mainly used in belt type filter press,
the rubber belt type vacuum filter,
horizontal vacuum belt filter.
Advantages
1. Filter Belt surface is smooth that makes mud cake easily to peel while belt is easy to flush.
2 .Filter belt lengthwise are not easy to cause deformation, no arch, no fold.
3. High tensile strength, crease resistant , uniform mesh monofilament, strong flexibility.
4.Long service life, with acid and alkali resistance, abrasion resistance, high
temperature (180 DEG C in the environment for a long time operation, etc.).
