Product Details:
Payment & Shipping Terms:
|
| Joint: | Autogenous Ring Steel Card Interface | Application: | Paper Making,Food Drying,mining |
|---|---|---|---|
| Tensile Strength: | High Strength | Edge Disposal: | Glue Edge |
| Surface: | Smooth And Flat | Wire Diameter: | 0.2-1.2mm |
| Thickness: | 2-4.5mm | Temperature Resistance: | 200 ℃ |
| High Light: | 1.2mm wire diameter polyester dewatering belt,high temperature resistance polyester dewatering belt,0.2mm dia synthetic sludge dewatering belt |
||

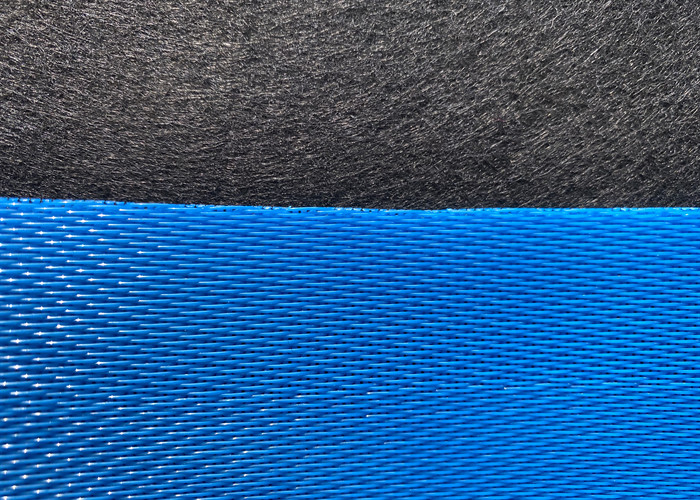

Polyester Sludge Dewatering Belt is a kind of polyester dryer mesh belt with surface smooth and flat
Its length is 0.1-100m, and it can be packed in woven bags and wooden boxes
The air permeability of this product is 15000-22000 M3/m2h, and it is widely used in paper making
food drying and mining. Polyester sludge dewatering belt is also called polyester dryer mesh or paper making belt
| Model | Wire Diameter | Density Root/10cm | Air Permeability m3/m2h | Net Weight g/m2 | Strength kg/cm | Used in | ||
| Wrap | Weft | Wrap | Weft | |||||
| 14803 | 0.7 | 0.8 | 142 | 47-60 | 3900-8500 | 1400 | 240 | Sludge,Squeeze juice |
| 16803 | 0.7 | 0.8 | 156 | 46-50 | 6000 | 1400 | 265 | Sludge,Squeeze juice |
| 16904 | 0.75 | 0.9 | 156 | 47 | 8000 | 1800 | 280 | Iron and steel industry sludge dewatering Living slude dewatering |
| 121054 | 0.9 | 1.05 | 120 | 42 | 8000 | 1650 | 340 | Iron and steel industry sludge dewatering |
| 22903 | 0.5 | 0.9 | 220 | 50-55 | 9000 | 1200 | 200 | Living slude dewatering |
| 20703 | 0.5 | 0.7 | 200 | 70 | 10000 | 1000 | 185 | Living slude dewatering |
| 24504 | 0.5 | 0.5 | 240 | 130-140 | 8500 | 1180 | 220 | Paper dry network |
| 8903 | 0.9 | 0.9 | 78 | 50 | 8500 | 1430 | 210 | industrial sludge dewatering |
| 16704 | 0.7 | 0.7 | 160 | 90 | 12000 | 1350 | 165 | Building materials dewatering |
| 26908 | 0.5 | 0.9 | 26.4 | 69-75 | 5000 | 1364 | 240 | Viscosit of the larger |
| 12 Mesh | 0.75 | 0.8 | 47 | 48 | 650 | 94 | Paper pulp washing | |
| Parameter | Value |
|---|---|
| Tensile Strength | High Strength |
| Material | 100% Polyester |
| Edge disposal | Glue Edge |
| Weight | 0.3-2.5 KG/M2 |
| Loop width | 5-12mm |
| Air permeability | 15000-22000 M3/m2h |
| Wire Diameter | 0.2-1.2mm |
| Color | Blue And White |
| Compilation method | Plain Weave |
| CFM | 900-1500 |
Hebei Reking's Polyester Sludge Dewatering Belt, Model Reking-001, is a dryer mesh belt made from polyester
, with a Wire Diameter of 0.2-1.2mm. It comes with an Autogenous Ring Steel Card Interface for joint
with a temperature resistance of up to 200℃, and is Reusable with a weight of 0.3-2.5 KG/M2
This product is certified with ISO9001 and origin from Hebei shijiazhuang, and it has a Minimum Order Quantity of 1 pics
with a Price negotiable. Packaging Details are in Wood and Delivery Time is Based on order quantity
Payment Terms are 7-15 days, and Supply Ability is up to 10000 pcs
Advantage of polyester mesh belt:
The polyester sludge dewatering belt is generally packaged in woven plastic bags and then placed in
wooden boxes or cardboard boxes. The packaging material can also be customized according to customer needs
The size of the package is based on the size of the product, and the weight of each package is generally not more than 25 kg
The sludge dewatering belt is generally shipped by sea or air, depending on the customer's needs
The shipping time and cost vary depending on the destination. Before shipping the product will be inspected to
ensure that the product is in good condition and in accordance with customer requirements
