Stainless Steel Twill Reverse Dutch Weave Wire Mesh Acid Resistant

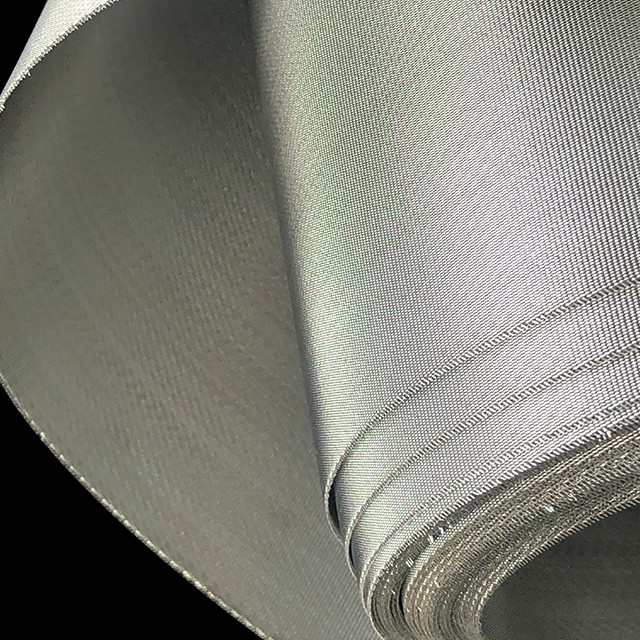

Large Image : Stainless Steel Twill Reverse Dutch Weave Wire Mesh Acid Resistant

Product Details:

Place of Origin:	Hebei,China
Brand Name:	R&K
Certification:	SGS
Model Number:	Dutch-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 squaremeter
Price:	Negotiate
Packaging Details:	Inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union，PayPal
Supply Ability:	1000 squaremeter per week

Contact Now

Detailed Product Description

Product Name:	Stainless Steel Twill Dutch Weave Wire Mesh Belt Reverse Dutch Woven Wire Mesh Filter Mesh	Type:	Weave Wire Mesh
Hole Shape:	Square Shape	Application:	Screen
Technique:	Woven	Feature:	Acid Resistant
Material:	SUS 316	Key Word:	Stainless Steel Reverse Mesh
Highlight:	SUS 316 Dutch woven wire mesh , Reverse Dutch woven wire mesh , Twill reverse dutch weave wire mesh

Stainless Steel Twill Dutch Weave Wire Mesh Belt reverse dutch woven wire mesh filter mesh

Feature of stainless steel Reverse Dutch woven wire mesh

The mesh surface is smooth,the hardness is high,the net is continuous,the deformation is not high,the high temperature resistance
the corrosion resistance,the flexible mesh and excellent filtering performance.

Stainless steel reverse Dutch mesh application:

Plastic wire drawing machine, stretch film machine, coating machine filters, plastic recycling filter, single or multi-layer molding machine filter, polymer melt filtration.

The product is well operated and is usually exported to Southeast Asia, Britain, Germany, Japan, the United States, South Africa, Indonesia, Thailand and other countries and other regions and regions.

Material	304 stainless steel wire mesh
Weave	Plain weave
Mesh count	20270mesh-5003500 mesh
Thread diameter	0.250.2-0.0250.015mm
Opening size	3-119 micron
Color	silver
Brand name	R&K

Parameter of Dutch mesh

Plain weave Dutch mesh
Number	Mesh(warpxweft)	Wire diameter (warpxweft)	Aperture (um)	Weight (kg/m2)
32#	8 x 62	0.63mm x 0.45mm	300	5.42
40#	10 x 79	0.50mm x 0.355mm	250	3.16
48#	12 x 64	0.58mm x 0.40mm	280	2.9
55#	14 x 88	0.40mm x 0.30mm	180	2.54
76#	19 x 140	0.315mm x 0.20mm	140	1.88
80#	20 x 300	0.35mm x 0.20mm	-	3.6
95#	24 x 110	0.355mm x 0.25mm	120	2.45
100#	25 x 140	0.28mm x 0.20mm	100	1.95
120#	30 x 150	0.25mm x 0.18mm	80	1.68
140#	35 x 175	0.224mm x 0.16mm	71	1.52
160#	40 x 200	0.20mm x 0.14mm	60	1.40
180#	45 x 250	0.16mm x 0.112mm	56	1.09
200#	50 x 250	0.14mm x 0.11mm	53	1.04
220#	55.5 x 280	0.14mm x 0.10mm	50	0.92
240#	65 x 330	0.11mm x 0.08mm	36	0.71
280#(1)	70 x 350	0.11mm x 0.08mm	35	0.72
280#(2)	70 x 385	0.11mm x 0.07mm	32	0.75
300#	78 x 700	0.11mm x 0.08mm	30	1.39
315#(1)	80 x 400	0.10mm x 0.065mm	40	0.62
315#(2)	80 x 600	0.10mm x 0.06mm	-	0.74
315#(3)	80 x 800	0.15mm x 0.04mm	-	0.77
320#	81 x 780	0.10mm x 0.07mm	30	1.22
354#	90 x 550	0.12mm x 0.05	-	0.667
Width:1m-1.6m

Stainless Steel Twill Reverse Dutch Weave Wire Mesh Acid Resistant 0
