Product Details:
Payment & Shipping Terms:
|
| Product Name: | 80*120 Mesh SS316 Stainless Steel Woven Wire Mesh For Anti Acid High Strength | Type: | Weave Wire Mesh |
|---|---|---|---|
| Hole Shape: | Square Shape | Application: | Screen |
| Technique: | Woven | Feature: | Acid Resistant |
| Material: | SUS 316 | Key Word: | Stainless Steel Reverse Mesh |
| High Light: | 80X120 Mesh Woven Wire Mesh,SS316 Woven Wire Mesh,SS Woven Wire Mesh Anti Acid |
||

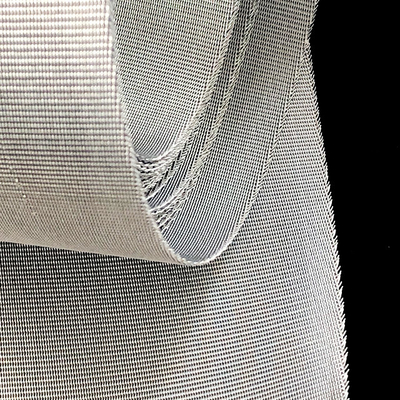

80*120 Mesh SS316 Stainless Steel Woven Wire Mesh For Anti Acid High Strength
Feature of stainless steel Reverse Dutch woven wire mesh
The mesh surface is smooth,the hardness is high,the net is continuous,the deformation is not high,the high temperature resistance
the corrosion resistance,the flexible mesh and excellent filtering performance.
Stainless steel reverse Dutch mesh application:
It is widely used for such as
plastic bags, plastic film, etc.
aerospace
oil
chemical fiber
machineryplastic products
scientific research and transportation.
Plastic extrusion machine, plastic melt filter, and automatic leather filter of plastic belt filters.
The product is well operated and is usually exported to Southeast Asia, Britain, Germany, Japan, the United States, South Africa, Indonesia, Thailand and other countries and other regions and regions.
| Material | 304 stainless steel wire mesh |
| Weave | Plain weave |
| Mesh count | 20*270mesh-500*3500 mesh |
| Thread diameter | 0.25*0.2-0.025*0.015mm |
| Opening size | 3-119 micron |
| Color | silver |
| Brand name | R&K |
Parameter of Dutch mesh
|
Plain weave Dutch mesh |
||||
|
Number |
Mesh(warpxweft) |
Wire diameter (warpxweft) |
Aperture (um) |
Weight (kg/m2) |
|
32# |
8 x 62 |
0.63mm x 0.45mm |
300 |
5.42 |
|
40# |
10 x 79 |
0.50mm x 0.355mm |
250 |
3.16 |
|
48# |
12 x 64 |
0.58mm x 0.40mm |
280 |
2.9 |
|
55# |
14 x 88 |
0.40mm x 0.30mm |
180 |
2.54 |
|
76# |
19 x 140 |
0.315mm x 0.20mm |
140 |
1.88 |
|
80# |
20 x 300 |
0.35mm x 0.20mm |
- |
3.6 |
|
95# |
24 x 110 |
0.355mm x 0.25mm |
120 |
2.45 |
|
100# |
25 x 140 |
0.28mm x 0.20mm |
100 |
1.95 |
|
120# |
30 x 150 |
0.25mm x 0.18mm |
80 |
1.68 |
|
140# |
35 x 175 |
0.224mm x 0.16mm |
71 |
1.52 |
|
160# |
40 x 200 |
0.20mm x 0.14mm |
60 |
1.40 |
|
180# |
45 x 250 |
0.16mm x 0.112mm |
56 |
1.09 |
|
200# |
50 x 250 |
0.14mm x 0.11mm |
53 |
1.04 |
|
220# |
55.5 x 280 |
0.14mm x 0.10mm |
50 |
0.92 |
|
240# |
65 x 330 |
0.11mm x 0.08mm |
36 |
0.71 |
|
280#(1) |
70 x 350 |
0.11mm x 0.08mm |
35 |
0.72 |
|
280#(2) |
70 x 385 |
0.11mm x 0.07mm |
32 |
0.75 |
|
300# |
78 x 700 |
0.11mm x 0.08mm |
30 |
1.39 |
|
315#(1) |
80 x 400 |
0.10mm x 0.065mm |
40 |
0.62 |
|
315#(2) |
80 x 600 |
0.10mm x 0.06mm |
- |
0.74 |
|
315#(3) |
80 x 800 |
0.15mm x 0.04mm |
- |
0.77 |
|
320# |
81 x 780 |
0.10mm x 0.07mm |
30 |
1.22 |
|
354# |
90 x 550 |
0.12mm x 0.05 |
- |
0.667 |
|
Width:1m-1.6m |
||||
