| Features: | Non-revealed Sludge | Name: | Polyester Square Hole Mesh Belt Special For Food Drying |
|---|---|---|---|
| Color:: | White Blue | Size:: | 0.1-30m Long |
| Application:: | Paper Mill Industry | Advantage:: | High Wear Resistance |
| Packing:: | Simple Packing | Durability: | Repeatable Application |
| High Light: | 1mm Hole Polyester Mesh Belt,Square Polyester Mesh Belt,0.5mm Hole Polyester Mesh Belt |
||

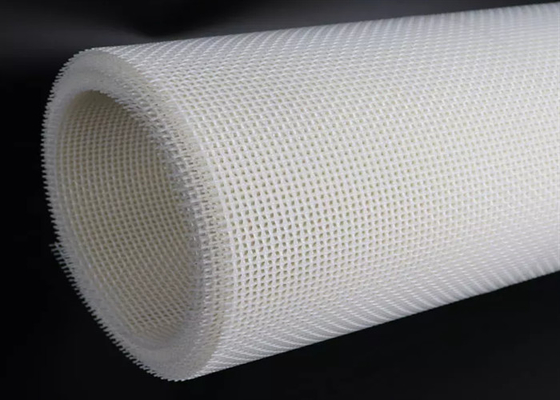

0.5 Mm 1mm Hole Plan Weave Square Hole Polyester Mesh Belt For Drying And Conveying
Polyester Square Hole Mesh Belt Product Introduction
The polyester linear screen cloth mesh belts cloth is made out by high viscosity Polyester monofilament yarn
and weaving in 1:1 plain weave to get uniform and defined mesh opening which makes the polyester mesh belts
in high separation efficiency and optimum filtration effects. Furthermore our linear screen filter belts are
all being thermal setting to get high lateral stability and optimum running properties
| Weaving Type | Thread Diameter(mm) | Density(No.s/cm) | Strength (N/cm) | Air Permeability(m³/m²h) | ||
| Warp | Weft | Warp | Weft | |||
| 2-shed plain weaving fabric | 0.7 | 0.8 | 4.7-5.0 | 4.8-5.0 | 940 | >20000 |
| 1.0 | 1.0 | 4.7-5.2 | 4.3-5.0 | 1600 | >15000 | |
| 0.7 | 0.7 | 8.0 | 7.0 | ≥1600 | 11000 | |
| 0.7 | 0.7 | 6.6-7.0 | 4.3-4.6 | 1100 | >15000 | |
| 0.55 | 0.55 | 7.5-8.0 | 8.5-9.0 | 850 | 850-6500 | |
| 0.45 | 0.45 | 10.0 | 8.6 | 1600 | 1600 | |
| 0.55 | 0.55 | 8.5-9.0 | 10-10.5 | 750 | >10000 | |
| 0.55 | 0.55 | 13.5 | 8.5 | 1800 | 6500 | |
| 3-shed plain weaving fabric | 0.55 | 0.6 | 10.0 | 9.0 | 1600 | 14000 |
| 0.9 | 0.9 | 7.8-8.0 | 5.0-5.5 | 2100 | 87500-8500 | |
| 0.7 | 0.8 | 8.0 | 8.0 | 1600 | 10000 | |
| 0.3 | 0.35 | 22.0 | 14.5 | 1200 | 13000 | |
| 0.3 | 0.4 | 22.0 | 14.5 | 1200 | 13500 | |
Product Name | Polyester Mesh Conveyor Belt | ||
Material | 100% polyester | ||
Type | Plain Weave | ||
Color | White/Blue | ||
Mesh Aperture | 1 x 1mm, 2 x 2mm, 4 x 4mm, 1.2 x 1.2mm, 800 x 800, 5 x 5mm etc | ||
Features | High temperature resistance, abrasion resistance and aging resistance etc | ||
Advantages | Larger air permeability, flat surface, good strength, long working time etc | ||
Applications | Food Drying Conveyor, Paper Making and Paper Pulp, Wooden Industry | ||
Matched filter machine | Food Dryer Conveyor Belt | ||
Seam type | Spiral Seam/Pin Joint/Steel Joint/ Woven Edge | ||
Size | Customized | ||
Main markets | South Asia, North America, South Amercia, South Africa, Europe etc | ||
Polyester Square Hole Mesh Belt Product Description
In the food processing industry like coffee roasting tea drying vegetable and fruit prior washing for
their further use, soup drying freezing etc the multifunctional polyester mesh belts are required to
fulfill the combined demand of heating and mechanical conveying etc
Polyester Square Hole Mesh Belt Product Introduction Advantage
1) High strength,standard plain weave ,uniform opening
2) Stand high working strength,durable,long work time
3) Resistance under 180 degrees
4) Waterproof
5) Shrink-Resistance
HD’s polyester mesh screen belts are the appropriate material which in precise aperture sturdy structure
High stability in lateral, flexible in lengthwise, heat resistance and excellent durability as well as the smooth surface and easy clean
FDA & EU food contact regulations compliant material to ensure the safety and reliability
The polyester material could endure temperature -40-150°C for higher temperature PPS material can be customized
according to your condition respectively
Aperture size generally used in fruit and vegetable washing in blue color
Square mesh size 500 x 500um, 1000 x 1000um
