Product Details:
Payment & Shipping Terms:
|
| Product Name: | 500mm Width Stainless Steel Compound Balanced Conveyor Belt | Keywords: | Compound Balanced Belt |
|---|---|---|---|
| Main Features: | Long Life Time | Belt Material: | 304 316 Stainless Steel |
| Working Temperature: | 700-800 Degree | Width: | 500mm |
| Package: | Plywood Box | Application: | Conveying Small Parts |
| High Light: | 500mm Compound Balanced Belt,Compound Balanced Belt Wear Resisting,500mm balanced weave belt |
||

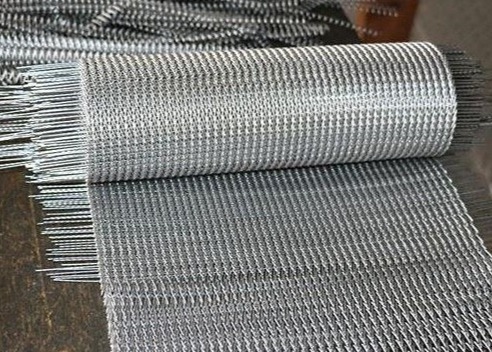

500mm Width Stainless Steel Compound Balanced Conveyor Belt
Introduction of Compound Balanced Belt
Compound balanced belt is a varation of balanced belt. It is similar with it besides small open area and high density . Due to this kind of construction , compound balanced belt is highly recommend on conveying small parts and as well as unstable and heavy loads .
As for the material , It is ideal for 304 or 316 stainless steel . If you have any other demands, we also can do other materail according to the suoorunding of the machine use .
As for the size , we can produce belt as the drawing you give us . Or we can design for you according to your usage and machine size .
The compound weave conveyor belt is made of stainless steel and high carbon steel. They all have excellent high temperature resistance performance and high tensile strength. All these can ensure the compound weave conveyor belt be a strong, durable and high lifespan products.
Datas of Compound Balanced Belt
| Item | Compound Balanced Conveyor Belt |
| Material | Carbon Steel , 201 304 316 316L 310 314 Stainless Steel |
| Wire Diameter | 1-3mm |
| Spiral Pitch | 5-15mm |
| Rod Pitch | 10-25mm |
| Belt Width | 100-4000mm |
| Belt Length | at least 3m |
| Production Time | 10 days after receiving your payment |
Usage of Compound Balanced Belt
The compound balanced belt with little open area is popular in the food, electric, mechanical and other industries. It can be used to convey the following products : Baking cookies , nuts , nails , screws , fasteners .
Benefits of Compound Balanced Belt
high tension
acid resistance
alkali resistance
high corrosion
low and high temperatures
good conveying function
break resistance
antioxidation
easy to install
steadily run without deflection
Package and usage of Compound Balanced Belt
Workshop of Compound Balanced Belt
