Product Details:
Payment & Shipping Terms:
|
| Product Name: | SUS314 High-Temperature Resistant Compound Balanced Belt For Stone Processing | Keywords: | Compound Balanced Belt |
|---|---|---|---|
| Belt Material: | 201 304 316 316L Stainless Steel , Carbon Steel | Wire Diameter: | 1-3mm |
| Rod Pitch: | 10-25mm | Spiral Pitch: | 5-15mm |
| Main Features: | Tighten And Smooth Surface | Belt Application: | Electronic Components Convey |
| High Light: | High Temperature Resistant Compound Balanced Belt,Stone Processing Compound Balanced Belt,Stone Processing balanced weave belt |
||

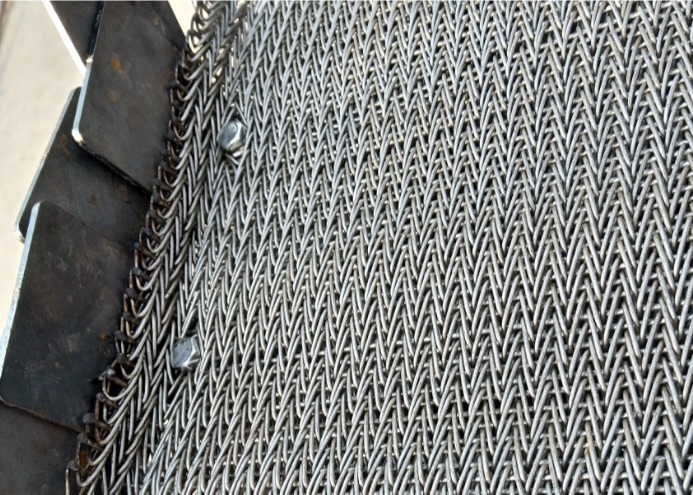

SUS314 High-Temperature Resistant Compound Balanced Belt For Stone Processing
Compound Balanced Belt Description
Compound balanced belt is a variation of balanced weave belt,Right hand and left hand weave forms a very dense and smooth belt with most rod straight and some crimped.The belt is perfect to convey small products because of high dense mesh,such as nuts,bolts,screw,nail,cookies,chemical grain etc.
Compound Balanced Belt has two kinds edge treatment . One is Welde edge and other is chain edage. We can produce as the edge treatment you want .
Compoud Balanced Belt , As for its material , we can do 201 304 316 stainless steel or carbon steel . It is up to your demands .
Compound Balanced Belt also called as cord weave conveyor belts, refer to series of right and left spirals compound together to form a tighter conveying surface comparing with balanced or universal weave belts. This tightly woven structure makes compound weave conveyor belts ideal for baking, conveying small products and top heavy loads.
Compound Balanced Belt Data Sheet
|
Product Name
|
Compound Balanced Belt |
|
Brand
|
Reking |
|
wire diameter
|
0.1-10mm
|
|
Application
|
bakery ovens, food equipment, belt con |
|
Size
|
according to your project
|
|
Surface treatment
|
hot dipped galvanized, blacking,polishing
|
|
Place of Product
|
Hebei Province,China
|
|
Modes of packing
|
Water-proof paper and then in wooden cases
|
|
After sale service
|
support technical support
|
Compound Balanced Belt Benefits
Compound Balanced Belt has the features of carry small items and unstable products because belt surface is flat and smooth , Convey heavy load because belt high allowable tension , processing under pressure because the belt has high strength and pressure capacity , high temperature because its material is stainless steel , textile products refining and cleaning process .
Compound Balanced Belt Usage
Compound Balanced Belt is widly used in baking industyr and industrial industry.
As for Baking Industry such as Cookie Baking , Tortilla Baking , Food Processing, Crackers , Biscuits and popular with all forms of continous baking applications of baked goods including cracker and cookie baking .
As for Industrial Industry , such as heat treating of small parts , hardening , tempering , Quenching. It's great for for handling small parts in heat treating and quench tank operations .
Compound Balanced Belt Common Size
| Type | Rod number for a spiral | Spiral number in 12" | Cross rod number in 12" | Cross rod diameter | Spiral wire diameter |
| CWCB-1 | 3 | 53 | 102 | 0.47" | 0.47" |
| CWCB-2 | 3 | 41 | 102 | 0.54" | 0.54" |
| CWCB-3 | 3 | 34 | 82 | 0.08" | 0.63" |
| CWCB-4 | 4 | 33 | 84 | 0.08" | 0.63" |
| CWCB-5 | 5 | 27 | 83 | 0.08" | 0.63" |
| CWCB-6 | 3 | 28 | 72 | 0.08" | 0.08" |
| CWCB-7 | 3 | 20 | 50 | 0.12" | 0.12" |
| CWCB-8 | 3 | 60 | 132 | 0.141" | 0.141" |
| CWCB-9 | 3 | 60 | 132 | 0.041" | 0.041" × 0.035" |
| CWCB-10 | 3 | 84 | 157 | 0.035" | 0.025" |
| CWCB-11 | 3 | 84 | 157 | 0.035" | 0.03" × 0.02" |
| CWCB-12 | 3 | 114 | 192 | 0.028" | 0.028" |
| CWCB-13 | 3 | 140 | 186 | 0.032" | 0.025" |
Compound Balanced Belt Package
Compound Balanced Belt Workshop
