| Stock: | Have Stock | Product Name: | Polyester Forming Mesh Belt |
|---|---|---|---|
| Usage: | Paper Making, MDF Board Making, Board Paper Making | Color: | White Blue Green Red |
| Size: | Length Adn Width Can Be Customized | Air Permeability: | 3800-5000 |
| Factory: | We Are Factory | Production Time: | 10-15days |
| High Light: | Paper Pulp Making polyester mesh belt,Paper Pulp Making Polyester forming fabric,1.5 Layers Polyester Mesh Conveyor Belt |
||

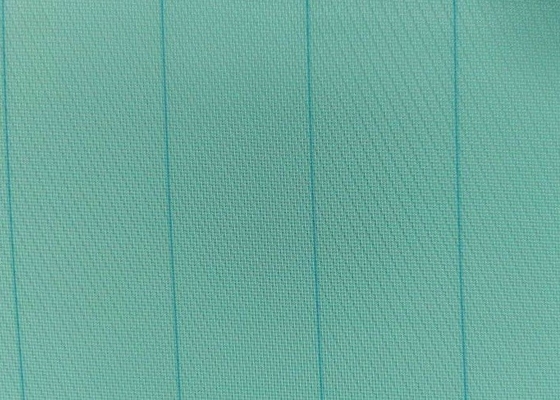

Polyester Mesh Conveyor Belt Forming Dryer Filter Fabric Belt For Paper Pulp Making
Introduction:
Polyester forming fabric for paper making paper making forming fabric mesh paper making screen mesh polyester mesh lining fabric, according to the different weave ways used for different speeds of paper machine
Polyester paper making forming mesh can be divided into 4-shed, 5-shed, 7-shed, 8-shed single layer fabric 7-shed, 8-shed double layer fabric, 8-shed 16-shed double and a half layer fabric, and three layer fabric according to the weaving type.
4-shed single layer fabrics is the standard of polyester forming fabrics in making paper. It is used in wide range such as: newspaper, offset printing paper, Chemical pulp high-grade paper, test liner, corrugated paper. It is usually by machine middle and slow paper machine.
5-Shed single layer fabric has a good wear wear-ability and dehydration, regular and uniform opening, vestige inconspicuous, high rate of adhesion, long life. It is suitable for making tobacco paper and tissue paper.
7-shed single layer fabric has good wear-ability, steady size, high rate of adhesion and long life. It is suitable for making high-quality press light paper, offset point paper, low ration original paper, it is the perfect paper of high speed paper machine.
8-shed double layer fabric is suitable for quality printing paper, tissue paper and the pulp, board paper.
Advantage:
1.High fiber support index, good retention, and good drainage;
2.smooth surface and the paper features are good.
3.Good dewatering performance, anti-wear, easy to clean;
4.Easy paper feeding, dimensional stability and good running stability
| Product name | Polyester 1.5 layers 2layers 3 layers paper making forming fabric |
| Material | 100% polyester |
| Woven structure | Plain woven |
| Air permeability(m3/m2/h) | 3800-5000 |
| Application | Middle and high speed paper machine making culture paper |
| Filament diameter mm |
Density/cm |
Tensile strength N/cm |
Weight Kg/m2 |
Thickness mm |
Mesh mm Warp/weft |
Aperture mm Warp/weft |
L/m2/S 200Pa | |||
Warp |
Weft |
Warp |
Weft |
surface |
joint | |||||
| 1.0 | 1.0 | 2.85 | 2.65 | 1600 | 650 | 0.6 | 1.85 | 7.1*6.73 | 2.5*2.77 | 12600 |
| 1.0 | 1.0 | 3.2 | 3.25 | 1600 | 650 | 0.8 | 1.86 | 8.1*8.2 | 2.12*2.07 | 10500 |
| 0.9 | 0.9 | 3.9 | 3.65 | 1600 | 650 | 0.55 | 1.7 | 9.6*9.3 | 1.66*1.83 | 9000 |
| 0.9 | 0.9 | 4.65 | 4.7 | 1600 | 650 | 0.95 | 1.66 | 12*12 | 1.25*1.22 | 8100 |
| 0.5 | 0.6 | 4.4 | 5.2 | 1600 | 650 | 0.58 | 1.23 | 12*13.2 | 1.72*1.32 | 8500 |
| 0.6 | 0.6 | 5.9 | 5.6 | 1600 | 650 | 0.62 | 1.1 | 14.98*14.2 | 1.09*1.18 | 8210 |
| 0.8 | 0.8 | 5.1 | 5.3 | 1600 | 650 | 0.89 | 1.48 | 13*13.5 | 1.16*1.08 | 6350 |
