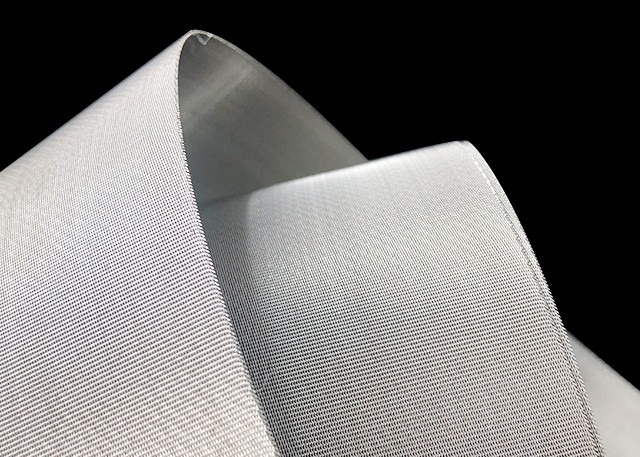

20*270Mesh SS304 Weave Conveyor Belt Wire Mesh Anti Acid High Strength

Large Image : 20*270Mesh SS304 Weave Conveyor Belt Wire Mesh Anti Acid High Strength

Product Details:

Place of Origin:	Hebei,China
Brand Name:	R&K
Certification:	SGS
Model Number:	Dutch-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 squaremeter
Price:	Negotiate
Packaging Details:	Inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union，PayPal
Supply Ability:	1000 squaremeter per week

Contact Now

Detailed Product Description

Product Name:	20*270 Mesh Reverse SS304 Wire Mesh Anti Acid For Conveyor Belt System	Type:	Weave Wire Mesh
Hole Shape:	Square Shape	Application:	Screen
Technique:	Woven	Feature:	Acid Resistant
Material:	SUS 304	Key Word:	Stainless Steel Reverse Mesh
Highlight:	conveyor belt wire mesh Anti Acid , SS304 conveyor belt wire mesh , conveyor wire mesh belt High Strength

20*270 Mesh Reverse SS304 Wire Mesh Anti Acid For Conveyor Belt System

Feature of stainless steel Reverse Dutch woven wire mesh

mesh surface is smooth
the hardness is high
the net is continuous
the deformation is not high
the high temperature resistance
the corrosion resistance
the flexible mesh
excellent filtering performance.

Stainless steel reverse Dutch mesh application:

It is widely used for such as

plastic bags, plastic film, etc.

aerospace

chemical fiber

machineryplastic products

scientific research and transportation.

Plastic extrusion machine, plastic melt filter, and automatic leather filter of plastic belt filters.

The product is well operated and is usually exported to Southeast Asia, Britain, Germany, Japan, the United States, South Africa, Indonesia, Thailand and other countries and other regions and regions.

Material	304 stainless steel wire mesh
Weave	Plain weave
Mesh count	20270mesh-5003500 mesh
Thread diameter	0.250.2-0.0250.015mm
Opening size	3-119 micron
Color	silver
Brand name	R&K

Parameter of Dutch mesh

Plain weave Dutch mesh
Number	Mesh(warpxweft)	Wire diameter (warpxweft)	Aperture (um)	Weight (kg/m2)
32#	8 x 62	0.63mm x 0.45mm	300	5.42
40#	10 x 79	0.50mm x 0.355mm	250	3.16
48#	12 x 64	0.58mm x 0.40mm	280	2.9
55#	14 x 88	0.40mm x 0.30mm	180	2.54
76#	19 x 140	0.315mm x 0.20mm	140	1.88
80#	20 x 300	0.35mm x 0.20mm	-	3.6
95#	24 x 110	0.355mm x 0.25mm	120	2.45
100#	25 x 140	0.28mm x 0.20mm	100	1.95
120#	30 x 150	0.25mm x 0.18mm	80	1.68
140#	35 x 175	0.224mm x 0.16mm	71	1.52
160#	40 x 200	0.20mm x 0.14mm	60	1.40
180#	45 x 250	0.16mm x 0.112mm	56	1.09
200#	50 x 250	0.14mm x 0.11mm	53	1.04
220#	55.5 x 280	0.14mm x 0.10mm	50	0.92
240#	65 x 330	0.11mm x 0.08mm	36	0.71
280#(1)	70 x 350	0.11mm x 0.08mm	35	0.72
280#(2)	70 x 385	0.11mm x 0.07mm	32	0.75
300#	78 x 700	0.11mm x 0.08mm	30	1.39
315#(1)	80 x 400	0.10mm x 0.065mm	40	0.62
315#(2)	80 x 600	0.10mm x 0.06mm	-	0.74
315#(3)	80 x 800	0.15mm x 0.04mm	-	0.77
320#	81 x 780	0.10mm x 0.07mm	30	1.22
354#	90 x 550	0.12mm x 0.05	-	0.667
Width:1m-1.6m

20*270Mesh SS304 Weave Conveyor Belt Wire Mesh Anti Acid High Strength 0
