Product Details:
Payment & Shipping Terms:
|
| Features: | High Temperature Resistance | Keywords: | PTFE Conveyor Belts |
|---|---|---|---|
| Material: | Fiberglass And Kevlar Material PTFE | Brand Name: | REKING |
| Hole Size: | 1*1mm 2*2mm 4*4mm 6*6mm 8*8mm | Width: | 30cm To 4.3m |
| Weight: | 120-160g/m2 | Length: | We Will Do According To Your Demands |
| High Light: | UV Dryer PTFE Mesh Conveyor Belt,PTFE Conveyor Belt Cracking Resistance,ptfe mesh belt Cracking Resistance |
||

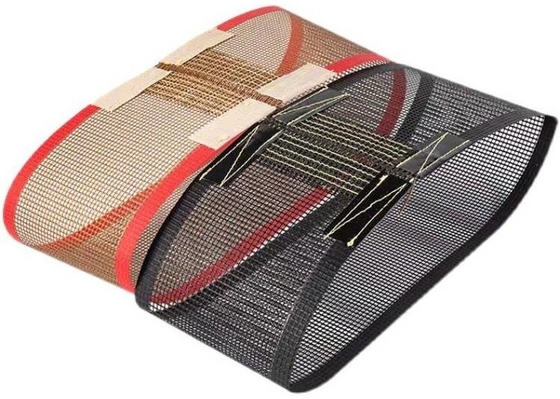

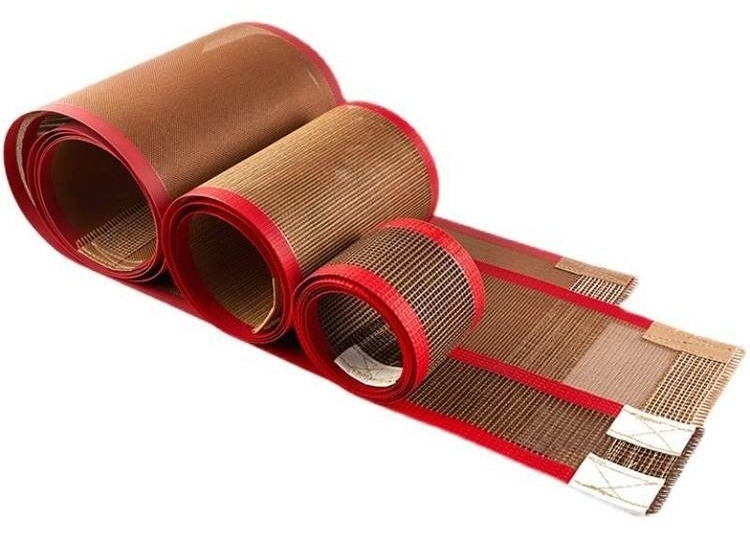

High Temperature Cracking Resistance UV Dryer PTFE Mesh Conveyor Belt
Conveyor Belts Description
PTFE mesh belts are used in applications such as the drying of printed products for example; point of display stands, T-shirts, glass and mass produced paper prints. Print dryers usually opt for Ultra violet, Infra red or hot air as the heat source to dry.
Other applications range from the drying of cereals, non woven's, charcoal interlinings, carpet & carpet tiles, printed circuit boards and shrink-wrap tunnels but to name a few.
Conveyor Belt Specification
| Item No. | Mesh Size | Material | Thickness | Weight | Temperature Resistance | Max Width | Tensile Strength |
| (mm) | (mm) | (g/m2) | (°C) | (mm) | (N/cm) | ||
| 6001 | 1x1 | Fiberglass | 0.5 | 370 | -70~260 | 3000 | 310/290 |
| 6002 | 2x2 | Fiberglass | 0.7 | 450 | -70~260 | 3000 | 350/310 |
| 6003 | 4x4 | Fiberglass | 1.0 | 400 | -70~260 | 4000 | 390/320 |
| 6004 | 4x4 | Fiberglass | 1.0 | 450 | -70~260 | 4000 | 390/320 |
| 6007 | 4x4 | Fiberglass+ | 1.2 | 600 | -70~260 | 4000 | 895/370 |
| 6008 | 4x4 | Fiberglass | 1.0 | 500 | -70~260 | 4000 | 395/370 |
| 6010 | 4x4 | Fiberglass | 1.0 | 500 | -70~260 | 4000 | 900/600 |
| 6012 | 4x4 | Fiberglass | 1.0 | 550 | -70~260 | 4000 | 395/370 |
| 6013 | 10x10 | Fiberglass | 1.2 | 450 | -70~260 | 3000 | 360/300 |
| 6014 | 0.5x1 | Fiberglass | 0.5 | 420 | -70~260 | 3000 | 310/290 |
| 6015 | 2x2.5 | Fiberglass | 0.9 | 600 | -70~260 | 3000 | 390/320 |
Conveyor Belts Features
1. It is used between -196 °C and 300 °C, with weather resistance and anti-aging.
2. Resistant to chemical corrosion, resistant to strong acids, strong alkalis and various organic solvents;
3. Non-adhesive: not easy to adhere to any substance. It is easy to clean all kinds of oil stains, stains or other attachments attached to its surface; almost all adhesive substances such as paste, resin, paint, etc. can be easily removed;
4. Dimensional stability (extension coefficient less than five thousandths), high strength, with good mechanical properties;
5. Anti-bending fatigue, can be used for smaller wheel diameters,
6. Resistant to pharmaceutical agents, non-toxic, almost resistant to all pharmaceutical products;
7. Rire retardant,
8. Breathability: The air permeability of the conveyor belt is high, the heat source is reduced, and the drying efficiency is improved.
Conveyor Belt Application
1. Drying machine for non-woven textile, textile printing, silk-printing and dyeing machine.
2. Shrinking machine for garment fabric, high-frequency and UV dryer.
3. Hot-air dryer, various of food baking, quick-frozen machines.
4. Food processing and packing.
5. Release sheet for sticky products.
