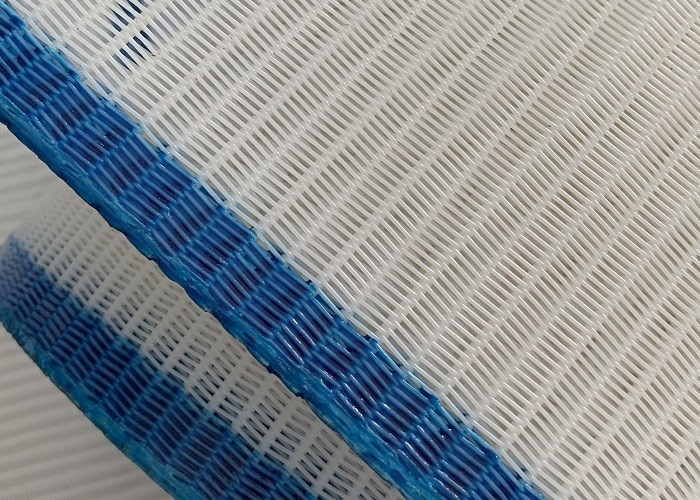

Polyester Paper Making Spiral Dryer Mesh Belt White Small Middle Big Loop

Polyester Paper Making Spiral Dryer Mesh Belt White Small Middle Big Loop
Polyester Paper Making Spiral Dryer Mesh Belt White Small Middle Big Loop
video play

Large Image :  Polyester Paper Making Spiral Dryer Mesh Belt White Small Middle Big Loop

Product Details:
Place of Origin: China
Brand Name: RK
Certification: no
Model Number: RKP02
Payment & Shipping Terms:
Minimum Order Quantity: 1square meetr
Price: USD 9.85-10.85/square meter
Packaging Details: woven bag+wooden case
Delivery Time: 10-12 days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability: 10000 square meter per month
Detailed Product Description
Material: 100%polyester Color: Black, Green, White, Red
Loop Size: Small Middle Large Loop Usage: Paper Making
Sample: Free Sample Provide Feature: Flat Surface, Easy Clean
Wire Diameter: 0.7 And 0.9mm
Highlight:

Paper Making Dryer Mesh Belt

,

Paper Making Polyester Mesh Belt

,

Dryer Mesh Belt Big Loop

White color small middle big loop polyester paper making Spiral dryer screen belt fabric



Introduction:

Polyester Spiral Dryer Fabric is suitable for drying packing paper, cultural paper, board paper and pulp board which be requested with big quantity, applies to the following machine speed not more than m600/s. The fabric is widely used in paper making, mining, food industry, pharmaceutical, printing and dyeing, rubber industry. Also could be used as conveyor belt and the laminating machine belt.

Polyester spiral dryer fabrics have the advantage of larger air permeability, smooth surface, good strength, long working time and easy to repair etc



Product Introduction Polyester spiral dryer screen mesh belt
Mainly size 0.7mm and 0.9mm wire diameter
Weight 1.4KGS/square meter
Color White, blue, red, black



Advantages:

1. good air permeability

2. flat surface

3. long service life.

4. Special material

5. against heat and moisture,

6. High Abrasion Resistance

7. aging resistance.





Features

Acid and alkali-resistant, Wear resistance, high temperature resistance,non-toxic ( can have a long time operation at 180 degrees environment)long service life, is several times more than woven dry blanket, canvas and general dry net.

The net surface is smooth, high tensile strengthis high,air permeability is good.The heat transfer efficiency is high,can save energy for users, and it is convenient to installation and use, there are no impression in the interface.



Polyester dryer screen belt is widely used in paper making, printing and dyeing, environmental protection, processing, food processing and other industries, round wire or flat can filled into to mesh according to user needs,adjust the air permeability as you wish to meet the technical demand. The net glue edge is imported glue.The glue can still constant hard in high temperature , color is stable,can adapt to different temperature change.





          Type

Spiral loop width mm Wire Diameter(mm)

Tensile Strength

(N/cm)

Weight

Kg/m2

Thickness

mm

Air Permeability

M3/m2h

CFM

127/pa

    Spiral wire Connection wire
Small Loop 5080A 5.2 0.50 0.80 1800 1.0 2.1 15000 937
Middle Loop 6890A 8 0.68 0.90 2000 1.31 2.45 18000 1125
Middle Loop 6890B 7.15 0.68 0.90 2000 1.40 2.45 16000 1000
Big Loop 9090A 8 0.90 0.90 2300 1.80 3.03 19000 1188
Big Loop 90110A 10 0.90 1.1 2300 1.65 3.15 20000 1250
Big Loop 10090A 8 1.0 0.90 2000 2.0 3.60 17000 1060
Big Loop 120130A 1.2 1.20 1.30 2600 2.35 4.30 22000 1375







Polyester Paper Making Spiral Dryer Mesh Belt White Small Middle Big Loop 0

Polyester Paper Making Spiral Dryer Mesh Belt White Small Middle Big Loop 1

Polyester Paper Making Spiral Dryer Mesh Belt White Small Middle Big Loop 2

Polyester Paper Making Spiral Dryer Mesh Belt White Small Middle Big Loop 3
