SUS201 Stainless Steel Spiral Mesh Belt Cooling Conveyor Belt Erosion Resistant

SUS201 Stainless Steel Spiral Mesh Belt Cooling Conveyor Belt Erosion Resistant
SUS201 Stainless Steel Spiral Mesh Belt Cooling Conveyor Belt Erosion Resistant SUS201 Stainless Steel Spiral Mesh Belt Cooling Conveyor Belt Erosion Resistant

Large Image :  SUS201 Stainless Steel Spiral Mesh Belt Cooling Conveyor Belt Erosion Resistant

Product Details:
Place of Origin: China
Brand Name: Reking
Certification: CE SGS
Model Number: rod conveyor belt
Payment & Shipping Terms:
Minimum Order Quantity: 3 meters
Price: Negotiable
Packaging Details: plywood box
Delivery Time: up to your quantity
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 5000 meters per month
Detailed Product Description
Product Name: Cooling Dry Food 304 Stainless Steel Spiral Mesh Belt Keyword: Rod Wire Conveyor Belt
Material: 201/304 Stainless Steel Main Feature: Heavy Load
Application: Havey Product Conveyor Package: Plywood Box
Width: 0.2-4.0m Wire Diameter: 1 Mm To 3 Mm
Chain Pitch: 19.05mm, 25.4mm, 31.75mm, 38.1mm, 50.8mm, 76.2mm Rod Pitch: 5 To 30 Mm
High Light:

Cooling Conveyor Belt Erosion Resistant

,

SUS201 Spiral Mesh Belt

,

SUS201 Cooling Conveyor Belt

Stainless Steel Spiral Mesh Belt Cooling Conveyor Belt





Introduction Spiral Mesh Belt



1. spiral wire mesh belt without chain

2. spiral wire balance weave wire mesh with chain

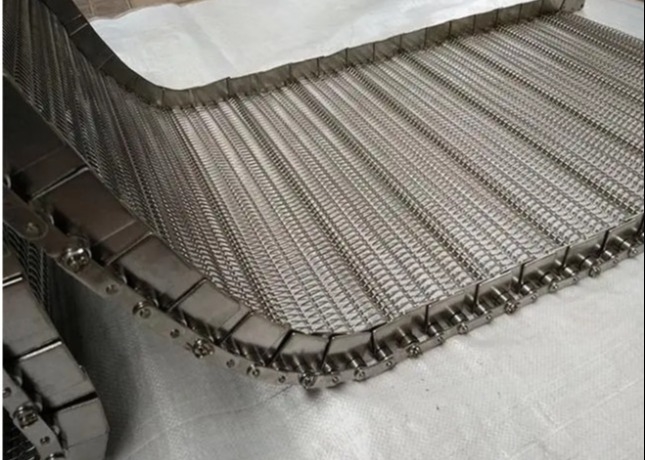

3. spiral wire mesh with U shape chain for freezing or cooling
4. double spiral wire mesh belt



Material
carbon steel, SUS201 304 316
Wire diameter
1 to 3 mm
Rod diameter
4 to 12 mm
Spiral wire pitch
3 to 20 mm
Chain pitch
19.05mm 25.4mm 31.75mm 38.1mm 50.8mm 76.2mm or customized
Width
0.2m to 4m
Rod pitch
5 to 30 mm



Description Spiral Mesh Belt:



Spiral wire link mesh belts, also referred to as balanced weave belts,Balance weave is an economical, general use belt for medium load applications from 40 - 1500 degrees F. It is the most commonly used wire mesh conveyor belt worldwide including many food processing.Ranging from super strong for conveying heavy loads over large widths or conveying very hot products to very dense weaves for small products, unsorted goods or products requiring stable support applications (from draining to cooling) as well as industries ranging from ceramic, glass and metalworking.







SUS201 Stainless Steel Spiral Mesh Belt Cooling Conveyor Belt Erosion Resistant 0SUS201 Stainless Steel Spiral Mesh Belt Cooling Conveyor Belt Erosion Resistant 1



SUS201 Stainless Steel Spiral Mesh Belt Cooling Conveyor Belt Erosion Resistant 2
