| Material: | 100%polyester | Product Name: | Polyester Press Filter Mesh Screen |
|---|---|---|---|
| Color: | White And Blue | Advantages: | Acid And Alkali Resisting |
| Connection: | Steel Connection | Packing: | Woven Bag And Wooden Carton |
| Size: | Customized Length And Width | Usage: | Press Filter For Liquid And Soild |
| High Light: | good air permeability filter mesh screen,non revealed filter mesh screen,non revealed filter mesh belt |
||

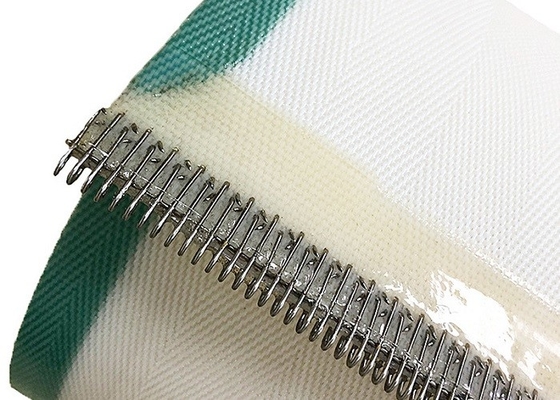

Good Air Permeability Non-Revealed Polyester Press Filter Mesh Screen Belt
Brief Introduction:
Polyester Sludge Dehydration Fabrics is also called press-filter Fabrics which is mainly used for sludge dehydration, paper pulp and juice squeeze, mine smelting, mine tailing disposal and other pressure filtration industries.
They have the characteristics of good water permeability and non-revealed sludge, acid-resisting and alkali-resisting. Because of their designing structure, The sludge can be peel off easily from the filter cake, So the screen are easily cleaned and have a long working time.
Mainly matching with belt type filter press, vacuum rubber belt filter and horizontal vacuum belt filter.
Introduction of belt details:
Polyester press filter screen belt are characterized by high abrasion resistance and very good dimensional stability under machine load. The fabrics have a special construction so that the pressed liquid can drain and at the same time the filter cake is not pushed through the fabric. Individual fabrics differ in the speed of drainage, the size of the holes in the fabric, the smoothness of the surface for easy separation of the filter cake, the resistance to abrasion, etc.
Usage:
Pressing of urban sludge in wastewater treatment plants
Pressing services for pulp and sludge
Fruit pressing services for the production of musts and wine
Pressing in the food industry
Separation of minerals in the mining industry
Sludge pressing in agriculture
Industrial separation processes
Advantages:
Very good drainage ability
Easy to clean
Universal sieve type for most industrial applications
Very high abrasion resistance
Long service life
For very abrasive sludges
| Product name | Polyester press filter sludge dewatering mesh belt |
| Color | Blue and White |
| Advantages | Easy to clean, long service time |
| Most usual type | 16903 22903 |
| Usage | sludge dewatering, suger mill, paper making |
|
Type
|
Wire Diameter(mm) |
Density/cm |
Strength(N/cm) Tensile strength |
Weight kg/m2 |
Thickness mm |
Air Permeability m3/m2h |
|||
|
Warp |
Weft |
Warp |
Weft |
Surface |
Joint |
||||
| RK22903 | 0.50 | 0.90 | 23 | 5.5 | 1600 | 900 | 1.4 | 1.90 | 8480 |
| RK24908 | 0.50 | 0.90 | 24.8 | 7.1 | 1600 | 900 | 1.48 | 2.1 | 7360 |
| RK24808 | 0.50 | 0.80 | 24.8 | 8 | 1600 | 900 | 1.4 | 2.0 | 6880 |
| RK16903 | 0.70 | 0.90 | 16.3 | 5 | 1600 | 900 | 1.5 | 2.1 | 7520 |
| RK16903 Blue | 0.70 | 0.90 | 16.3 | 5.8/6 | 1600 | 900 | 1.7 | 2.1 | 5550/3980 |
| RK12904 | 0.90 | 0.90 | 12.3 | 9.5 | 1600 | 900 | 2.2 | 3.5 | 9600 |
