Product Details:
Payment & Shipping Terms:
|
| Keywords: | PTFE Conveyor Belts | Material: | Fiberglass And Kevlar Material |
|---|---|---|---|
| Coating: | PTFE Coated | Hole Size: | 1*1mm 2*2mm 4*4mm 6*6mm 8*8mm |
| Width: | 30cm To 4.3m | Weight: | 120-160g/m2 |
| Length: | We Will Do According To Your Demands | Working Temperature: | 70 To 260 |
| High Light: | 1x1mm ptfe conveyor belts,glass mesh coated ptfe conveyor belts,fiberglass open mesh teflon conveyor belt |
||

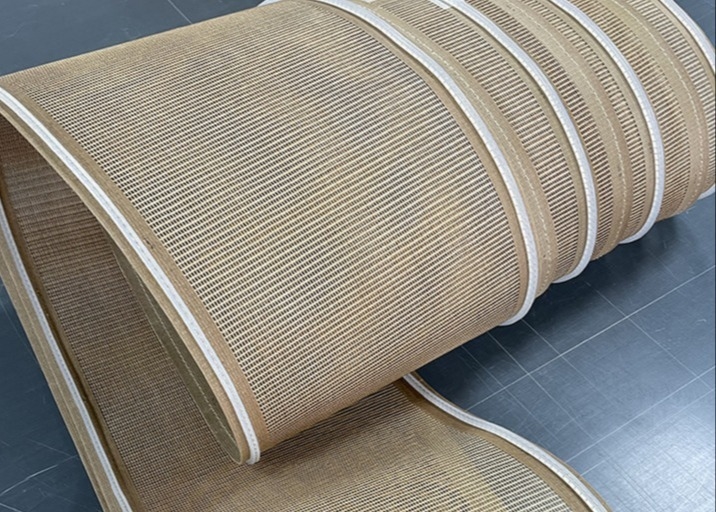

Glass Mesh Coated Fiberglass Open Mesh PTFE Mesh Conveyor Belt
Conveyor Belts Description
PTFE Coated fiberglass cloth is a kind of high-performance and multi-purpose composite material. It is made of glass fiber cloth and then coated with imported PTFE material. The unique design of the mesh improves its air permeability and heat dissipation, reducing heat consumption and drying time. It can be used in the temperature range from -140℃ to 360 ℃ for a long time. The special PTFE coating extends the life of the fabric and provides superior water, oil, stain and heat resistance. It also provides good flexibility, puncture and tear resistance. Standard colors include brown, grey and black, and also, we can customize any color, size to meet your special requirements.
Conveyor Belt Specification
| Mesh Size | Material | Thickness | Weight | Tensile Strength |
| 1*1mm | Fiberglass | 0.5mm | 370g/ m2 | 310/290N/cm |
| 2*2mm | Fiberglass | 0.7mm | 450g/ m2 | 350/310N/cm |
| 4*4mm | Fiberglass | 1.0mm | 400g/ m2 | 390/320N/cm |
| 10*10mm | Fiberglass | 1.2mm | 450g/ m2 | 360/300N/cm |
| 0.5*1mm | Fiberglass | 0.5mm | 420g/ m2 | 310/290N/cm |
| 2*2.5mm | Fiberglass | 0.9mm | 600g/ m2 | 390/320N/cm |
Conveyor Belts Features
1. It is used between -196 °C and 300 °C, with weather resistance and anti-aging.
2. Resistant to chemical corrosion, resistant to strong acids, strong alkalis and various organic solvents;
3. Non-adhesive: not easy to adhere to any substance. It is easy to clean all kinds of oil stains, stains or other attachments attached to its surface; almost all adhesive substances such as paste, resin, paint, etc. can be easily removed;
4. Dimensional stability (extension coefficient less than five thousandths), high strength, with good mechanical properties;
5. Anti-bending fatigue, can be used for smaller wheel diameters,
6. Resistant to pharmaceutical agents, non-toxic, almost resistant to all pharmaceutical products;
7. Rire retardant,
8. Breathability: The air permeability of the conveyor belt is high, the heat source is reduced, and the drying efficiency is improved.
Conveyor Belt Application
It is suitable for use of teflen conveyor belt for hot air and heat transfer conditions .
A : textile , printing and dyeing : printing drying , bleaching cloth drying , fabric shrinkage drying , non-woven cloth drying and other drying road , drying conveyor belt
B : silk screen , printing: loose dryer , offset printing press , UV series light solid machine , paper oil drying , UV drying , plastic products silk printing drying and other drying road , oven conveyor belt .
C : other items : high frequency drying , microwave drying , all kinds of food freezing and thawing , baking , packaging thermal contraction , general water cut of items fast drying , solvent ink drying chamber conduction band.
